Good price online

products details

Home > Products >
Fiber Optic Pigtail
>
12 Colors 0.9mm SC/APC Connector Single Mode Fiber Optic Pigtail with Customizable Length
All Category

Optical Fiber Patch Cord

MPO MTP Patch Cord

MPO MTP Cable

MPO Cassette Module

Fiber Optic Patch Panel

Fiber Optic Pigtail

FTTH Termination Box

Fiber Optic Connectors

Quick Assembly Connector

Fiber Optic Adapter

Fiber Optic Attenuator

Fiber Optic Loopback

Fiber Optic Cables

Fiber Optic Tools

Fiber Optic Transceiver

Fiber Optic Splitter

Fiber Optic WDM

Fiber Optic Splice Closure

Copper Patch Cords

Rj45 Patch Panel

RJ45 Ethernet Connector

Drone Fiber Optic

Switch And Socket
Contact Us
Mrs. Alice
sales03@newlightfiber.com
0086-13534063703
wechat 86 13534063703
Contact Now
name
  • name
  • name
  • name
  • name

12 Colors 0.9mm SC/APC Connector Single Mode Fiber Optic Pigtail with Customizable Length

Brand Name: New Light
Model Number: SC / APC
MOQ: 1
Price: 0.2~10
Packaging Details: OPP bag + carton box
Payment Terms: T/T,Western Union,MoneyGram,paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE , ISO , RoHS
Connector Type:
SC ( Can Be E2000, LC, FC, ST)
Mode Type:
Single Mode
Cable Color:
Usual 12 Colors
Cable Diameter:
0.9mm Or 0.6mm
Cable Length:
Can Be Customized
Insertion Loss:
≤ 0.25dB
Return Loss:
APC≥65dB; PC≥55
Delivery Time:
2-7 Working Days
Payment Term:
30% Deposit In Advance , 70% Balance Paid Before Delivery
Supply Ability:
1000000
Highlight:

single mode fiber pigtails

,

fibre optic tails

Product Description
12 Colors 0.9mm SC/APC Connector Single Mode Fiber Optical Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to industrial standards, meeting stringent mechanical and performance specifications.
Pigtails are used for splice applications when terminating outside plant cable. This unit consists of 12 simplex pigtails in different colors. Meets Telcordia GR-326 Core and ROHS requirements.
Applications
  • Telecommunication networks
  • Local area networks
  • CATV
  • Active device termination
  • Data center system networks
WHATSAPP: 008613534063703
Key Features
  • Available connector types: SC, FC, LC, ST, MU, E2000
  • Compatible cable types: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
  • Cable sizes: 0.6mm or 0.9mm
  • 12 color options for easy identification
  • Both 250um and 900um available in same colors
  • Tight buffer, semi-tight buffer, and loose buffer options
Product Specifications
Fiber Count 12 Fiber Mode 9/125μm
Connector Type 1 SC/APC Connector Type 2 Unterminated
Fiber Mode Single Mode Breakout Length 1.5m
Wavelength 1310/1550nm Jacket Material PVC/LSZH
Insertion Loss ≤ 0.25dB Interchangeability ≤0.2dB
Return Loss ≥ 50dB Vibration ≤0.2dB
Operating Temperature -40~75°C Storage Temperature -45~85°C
Geometric Specifications (3D Interferometer Tested)
Type Vertex Offset (μm) Curvature Radius (mm) Fiber Height (nm) Angle Offset (°)
2.5mm UPC ≤50 10~25 (-50, +50) None
2.5mm APC ≤50 5~12 (-50, +50) 8±0.2
1.25mm UPC ≤50 7~25 (-50, +50) None
1.25mm APC ≤50 5~12 (-50, +50) 8±0.2

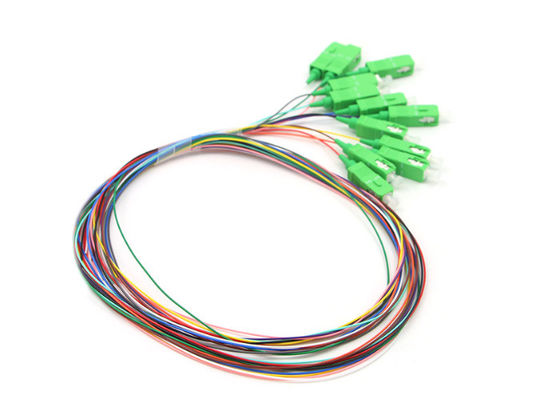

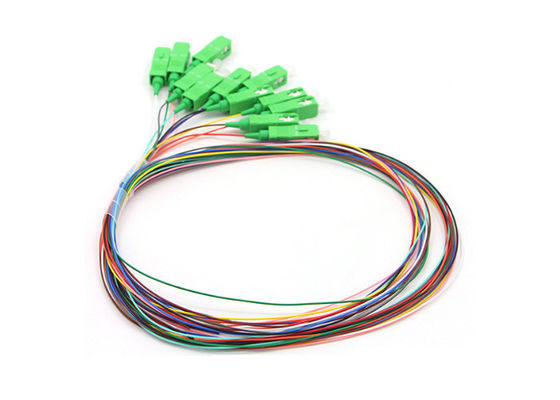

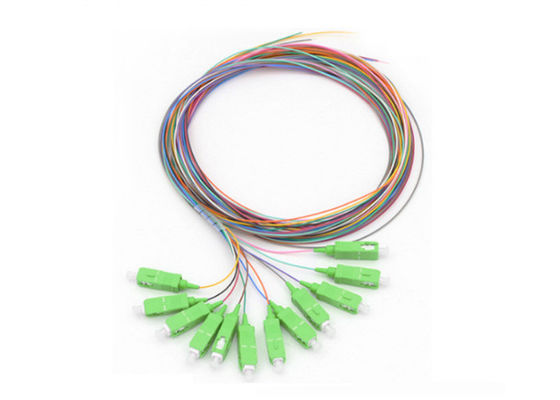

Product Diagram
12 Colors 0.9mm SC/APC Connector Single Mode Fiber Optic Pigtail with Customizable Length 0
Manufacturer Information
New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales and service. Established in 2011 with extensive OEM and manufacturing experience serving customers worldwide.
Product line includes: Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. Products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, and data base stations.
Company features advanced technology, professional R&D team, sophisticated production equipment, and high-quality control systems. Products are exported to over 60 countries worldwide with excellent customer feedback.
Tags:

fibre optic tails

single mode fiber pigtails

pigtail fiber optic cable
