12 24 48 96 Port Sliding Drawer Type Multi Mode Optic Fiber Distribution Frames

Brand Name:	New light
Model Number:	24 /12 fiber ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T, Western Union, MoneyGram ,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Weight:

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Material:

Cold-rolled Steel,Cold Rolled Steel

Application:

FTTH FTTB FTTX Network,Telecom,CATV,LAN

Product Name:

FTTH 12 24 48 96 144 Port Fiber Optic Patch Panel/ODF,24 Port Optic Fiber Terminal Box,Fiber Optic Distribution Box

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

Standard size 24LC / SC rack-mount design multimode fiber optic distribution frame

Product description:

Currently, the market embraces a great amount of Standard size 24LC / SC rack-mount design multimode fiber optic distribution frame and other devices for cable management. And the names and model numbers of these fiber termination boxes vary from the design and idea of different manufacturers. Hence to identify the detailed classification of fiber termination box could be a hard task.

https://youtu.be/n0NzAOHr10s

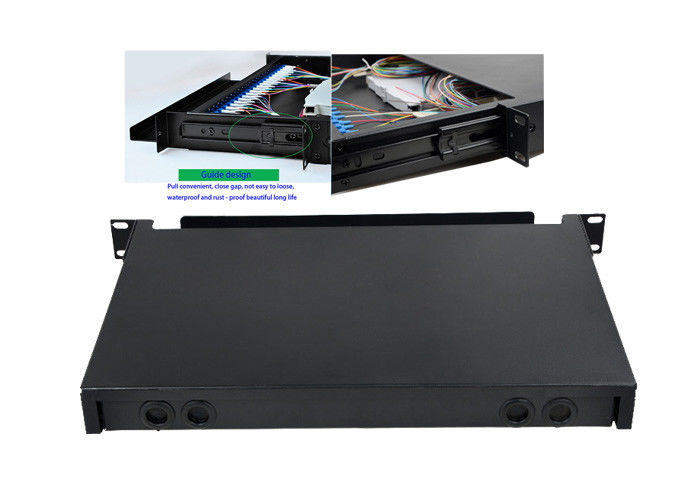

12 24 48 96 Port Sliding Drawer Type Multi Mode Optic Fiber Distribution Frames 0

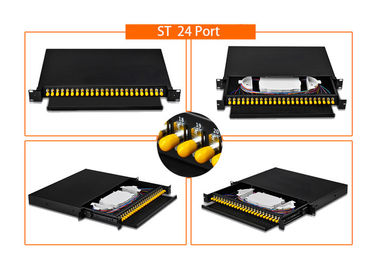

12 24 48 96 Port Sliding Drawer Type Multi Mode Optic Fiber Distribution Frames 1

There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.

12 24 48 96 Port Sliding Drawer Type Multi Mode Optic Fiber Distribution Frames 2

Application:

1. Telecommunications subscriber loop

2. Fiber to the home (FTTH)

3. LAN/WAN

4. CATV

Features:

Used to the branch connection of optical cable termination

19'' Standard Structure, Rack mounting

Available for the installation of adaptors

Drawer Structure, Easy for Operation.

Compact design for space saving

Easy for management and operation

Standard size, light weight and reasonable structure

Mechanical and environmental characteristics:

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

Dimension:

Model	fiber quantity	Height	Dimension(LxWxH)
rack mount	12 /24 /48 /96 core	1U	430354.144mm

12 24 48 96 Port Sliding Drawer Type Multi Mode Optic Fiber Distribution Frames 3
