Fiber Optic Patch Panel

12 24 48 96 Port Sliding Drawer Type Multimode Fiber Optic Distribution Frame and Patch Panel

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 24 48 96 Port Sliding Drawer Type Multimode Fiber Optic Distribution Frame and Patch Panel

Brand Name:	New light
Model Number:	24 /12 fiber ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Weight:

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Material:

Cold-rolled Steel,Cold Rolled Steel

Application:

FTTH FTTB FTTX Network,Telecom,CATV,LAN

Product Name:

FTTH 12 24 48 96 144 Port Fiber Optic Patch Panel/ODF,24 Port Optic Fiber Terminal Box,Fiber Optic Distribution Box

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

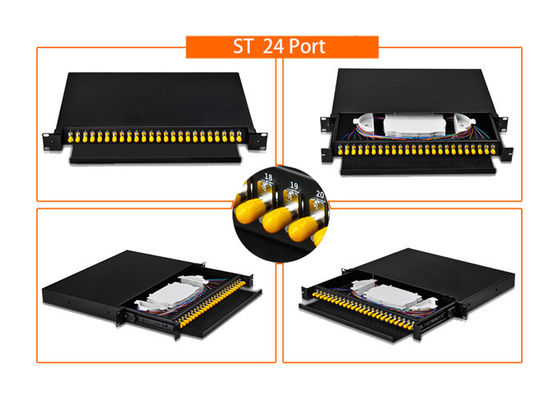

12/24/48/96 Port Sliding Drawer Type Multi-Mode Fiber Optic Distribution Frames

Standard 24LC/SC rack-mount design multimode fiber optic distribution frame for efficient cable management and fiber termination.

View Product Demonstration Video

Available in multiple configurations to accommodate 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Optional fiber accessories and pigtails available.

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Key Features

Designed for optical cable termination branch connections
19" standard rack mounting structure
Compatible with various adapter installations

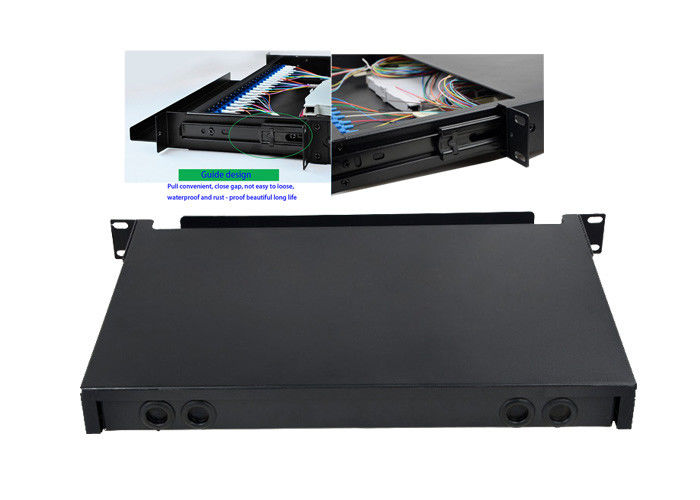

Sliding drawer design for easy operation
Compact design optimizes space utilization
Simplified management and operation
Standard size with lightweight, rational structure

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Capacity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 Core	1U	430 * 354.1 * 44mm
