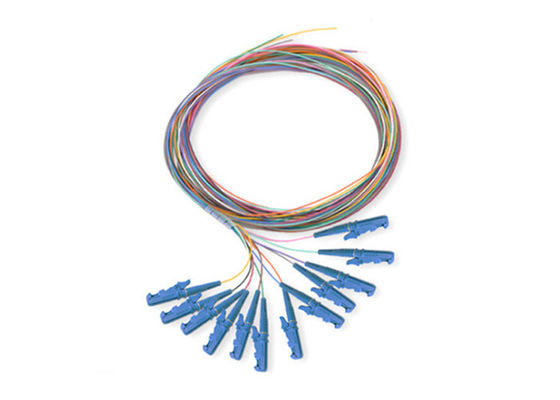

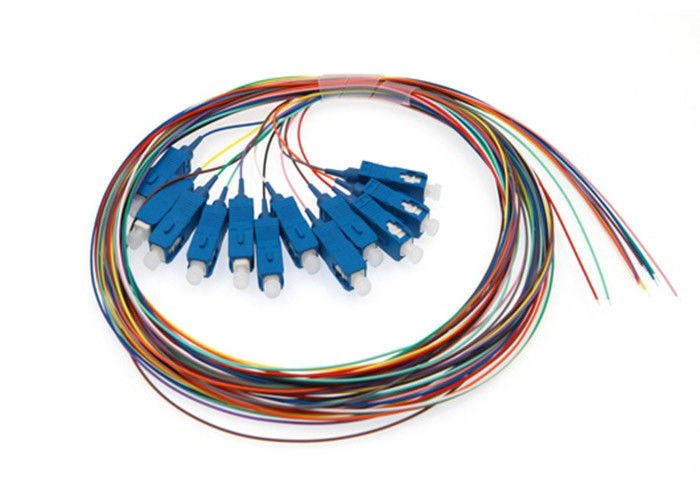

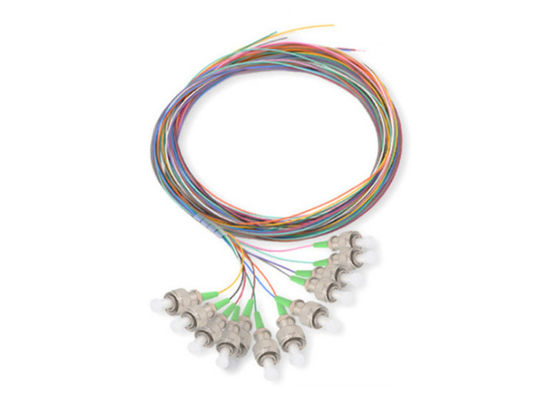

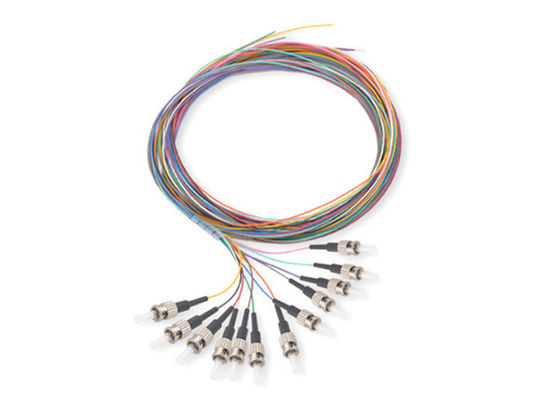

Custom Fiber Optic Pigtail with SC E2000 FC ST Connector 0.9mm 12 Colors Cable for Low Loss Transmission

Brand Name:	New Light
Model Number:	SC / E2000 / FC / ST
MOQ:	1
Price:	0.2~10
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , ISO , RoHS

Connector Type:

SC / E2000 / FC / ST

Mode Type:

SM / MM

Cable Color:

Usual 12 Colors

Cable Diameter:

0.6mm Or 0.9mm

Cable Length:

Can Be Customized

Insertion Loss:

≤0.25dB

Return Loss:

APC≥65dB; PC≥55

Delivery Time:

2-7 Working Days

Payment Term:

30% Deposit In Advance , 70% Balance Paid Before Delivery

Supply Ability:

1000000

Highlight:

single mode fiber pigtails

fibre optic tails

Product Description

Custom Fiber Optic Pigtail SC / E2000 / FC / ST Connector 0.9mm 12 Colors Cable

Fiber optic pigtails feature a connector on one end and a broken fiber core on the other, designed for connections between fiber terminal boxes and equipment. One end is fused with the fiber end, while the other connects to fiber transceivers or optical modules via LC, SC, FC, or ST connectors, creating reliable optical data transmission paths.

Product Overview

These pigtails provide efficient field termination solutions for communication devices. Manufactured and tested according to industrial standards including Telcordia GR-326 Core and ROHS requirements, they ensure optimal mechanical and performance specifications. Each unit contains 12 simplex pigtails in different colors for easy identification.

Contact: WHATSAPP 008613534063703

Applications

Long haul transmissions with cost-effective signal amplification
Low loss budget transmissions
Transmissions requiring uniform channel losses
Fiber tester applications
Splice replacements maintaining consistent loss levels

Key Features

Stable and reliable manufacturing process
Low insertion loss performance
Excellent random mating compatibility
High return loss characteristics
Available connector types: SC, FC, LC, ST, MU, E2000
Cable options: G652D, G657A1, G657A2, G655, OM1, OM2, OM3, OM4
Tight buffer, semi-tight buffer, and loose buffer configurations

Product Specifications

Fiber Count	12	Fiber Mode	9/125μm
Connector Type 1	LC	Connector Type 2	Unterminated
Fiber Mode	SM	Breakout Length	1.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion Loss	≤ 0.25dB	Interchangeability	≤0.2dB
Return Loss	≥ 50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Geometric Specifications (3D Interferometer Tested)

Type	Vertex Offset (μm)	Curvature Radius (mm)	Fiber Height (nm)	Angle Offset (°)
2.5mm UPC	≤50	10~25	(-50, +50)	None
2.5mm APC	≤50	5~12	(-50, +50)	8±0.2
1.25mm UPC	≤50	7~25	(-50, +50)	None
1.25mm APC	≤50	5~12	(-50, +50)	8±0.2

Product Diagram

Company Introduction

New Light Optics Technology Limited is a high-tech company specializing in optical communication products R&D, manufacturing, sales, and service. Established in 2011, our factory has over 6 years of OEM and manufacturing experience serving customers worldwide.

Product Portfolio

Our comprehensive product line includes Patch Cords/Pigtails, Patch Cord Cables, MTP/MPO Patch Cords, Fiber Optical Adapters, Attenuators, Fiber Optical Connectors, and more. These products are widely used in telecommunications, fiber optical CATV, digital internet fiber transmission, data base stations, and related applications.

Quality Assurance

We employ advanced technology, professional R&D teams, sophisticated production equipment, and skilled engineers. Our high-quality control system ensures products meet international standards, with distribution to over 60 countries including USA, Europe, Brazil, Middle East, and Asia.

Payment Terms & Delivery

Payment Methods: T/T, PayPal, Western Union, MoneyGram
Payment Terms: 30% deposit in advance, 70% balance before delivery
Packaging: International standard (OPP bag + Carton Box)
Delivery Time: 2-7 working days (depending on quantity)
Warranty: 1 year after delivery
Shipping Methods: Air (DHL, TNT, UPS, FedEx) or Sea (upon request)

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing.

Q: What's the price?

A: Pricing depends on quantity. We offer competitive pricing for bulk orders.

Q: Can you quote FOB price?

A: We typically offer EXW or CFR pricing due to product size. Contact us for freight solutions.

Q: How is your quality?

A: We follow IEC and European standards with imported production equipment and 100% testing before delivery.

Q: What's your lead time?

A: 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Q: What's your warranty?

A: 2 years warranty for patch cords (non-artificial damage).

Q: What's your packing?

A: International export packaging with optional logo printing.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adapters, attenuators, patch cords, and pigtails (customer pays freight).

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time.

Q: What are your payment terms?

A: T/T, Western Union, PayPal, MoneyGram. For large amounts: 50% deposit, 50% before delivery.
