MPO Cassette Module

MPO Cassette with 24 Fibers OM3 Multimode and 12x LC Duplex Featuring Corning ClearCurve® Glass Fiber

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

0086 13534063703

Contact Now

MPO Cassette with 24 Fibers OM3 Multimode and 12x LC Duplex Featuring Corning ClearCurve® Glass Fiber

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Brand Name:

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Material:

Cold- Roll Steel,Aluminum

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Warranty:

3 Years

Wavelength:

850nm/1310nm

Return Loss:

≥60dB (SM)

Supply Ability:

10000 per day

Highlight:

fiber optic cassette module

mtp casstte module

Product Description

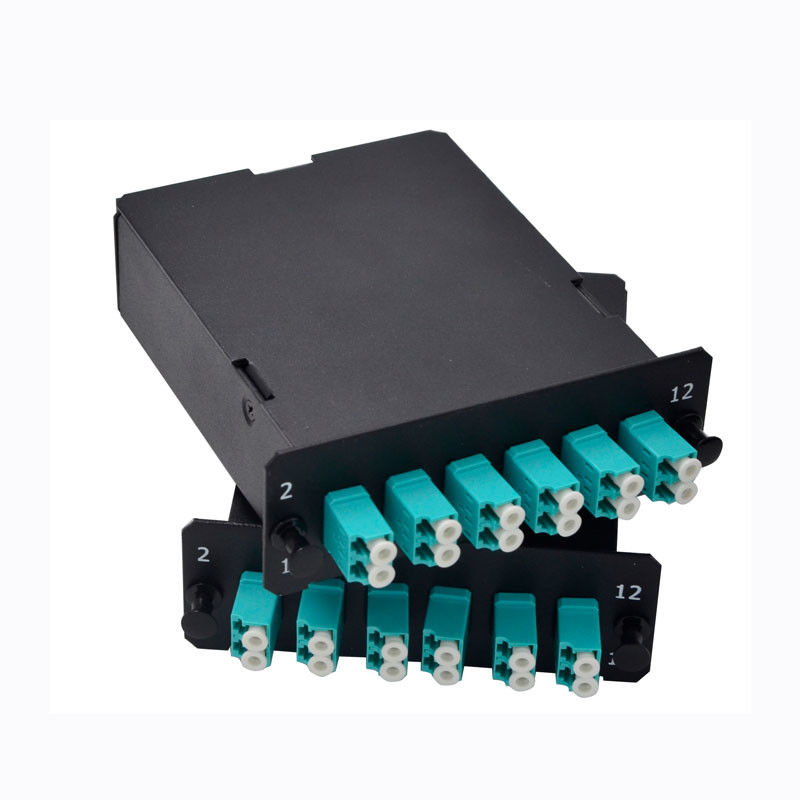

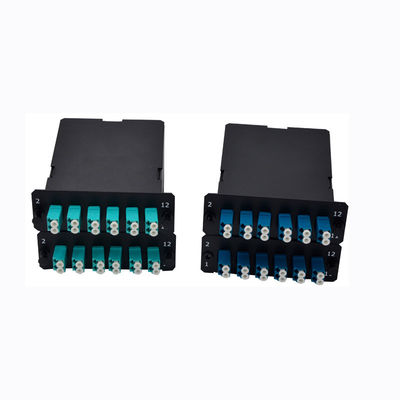

MPO-24 To 12x LC Duplex, Type AF, 24 Fibers OM3 Multimode FHD MPO Cassette

The MPO-24 to 12x LC Duplex, Type AF, 24 Fibers OM3 Multimode FHD MPO Cassette is a high-density fiber optic solution designed for efficient network connectivity.

Product Overview

New Light series MPO fiber cassette modules feature a 24-fiber MPO adapter on the rear, routed to duplex LC adapters on the front patch field. These modules interconnect with high-density fiber cable assemblies for multiple applications.

FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications, supporting up to 96 LC fibers in 1U configurations.

Key Features

High-density modular design supporting up to 96 fibers in 1U for space efficiency
Pre-terminated cassette design ensures improved reliability and quick deployment
High-performance connectors deliver low loss optical budget
Plug-and-play modules enable fast installation of multiple fiber links
Available in wide range of performance and polarity configurations
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Learn more about this product FHD High Density MPO Cassette Technical Details

Technical Specifications

Fiber Count	24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensuring proper transmitter-to-receiver matching is critical in any installation. FS provides intelligent solutions to help manage and optimize network connectivity and polarity.

Contact Us: WhatsApp +8613534063703
