MPO Cassette Module with 8 Fibers OS2 Single Mode for 40G/100G to 10G/25G High Density Modular Design

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Material:

Cold- Roll Steel,Aluminum

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Supply Ability:

10000 per day

Highlight:

fiber optic cassette module

mtp casstte module

Product Description

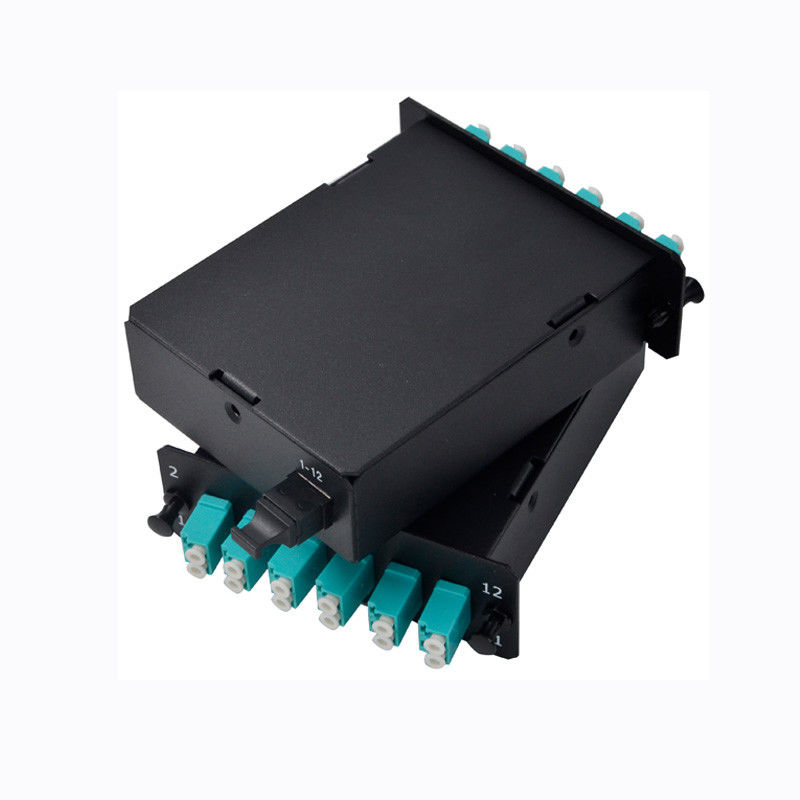

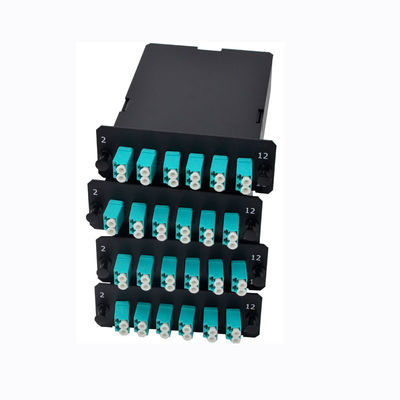

MPO-8 to 4x LC Duplex, 8 Fibers OS2 Single Mode FHD MPO Cassette

Product Overview

This high-density MPO cassette features an 8-fiber OS2 single mode configuration, enabling efficient conversion from 40G/100G to 10G/25G networks. The FHD series provides versatile solutions for data center backbones and enterprise applications.

Detailed Description

The 24-fiber MTP/MPO cassette with LGX footprint enables breakout to 24 LC connectors. Featuring angled polish LC connectors with low insertion loss, the cassette incorporates a fan-out cable assembly using Corning fiber in ribbon configuration. Compatible with both vertical and horizontal MPO cassette holders.

FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers and enterprise applications, supporting up to 96 LC fibers in 1U space.

Key Features

High-density modular design supporting up to 96 fibers in 1U space
Pre-terminated cassette for enhanced reliability and rapid deployment
High-performance connectors ensuring low loss optical budget
Plug-and-play modules for fast installation of multiple fiber links
Wide range of performance and polarity configurations available
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Watch Product Video MPO Cassette technical specifications and components

Technical Specifications

Parameter	Specification
Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensuring proper transmitter-receiver matching is critical in any installation. FS provides intelligent solutions to help manage and optimize network connectivity and polarity.

Contact Support: WhatsApp +8613534063703
