MPO Cassette Module

12 Fibers OM3 MPO Cassette Module with MPO-12 to 6x LC Duplex and High Density Modular Design

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Fibers OM3 MPO Cassette Module with MPO-12 to 6x LC Duplex and High Density Modular Design

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Material:

Cold- Roll Steel,Aluminum

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Name:

Cassette Module

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

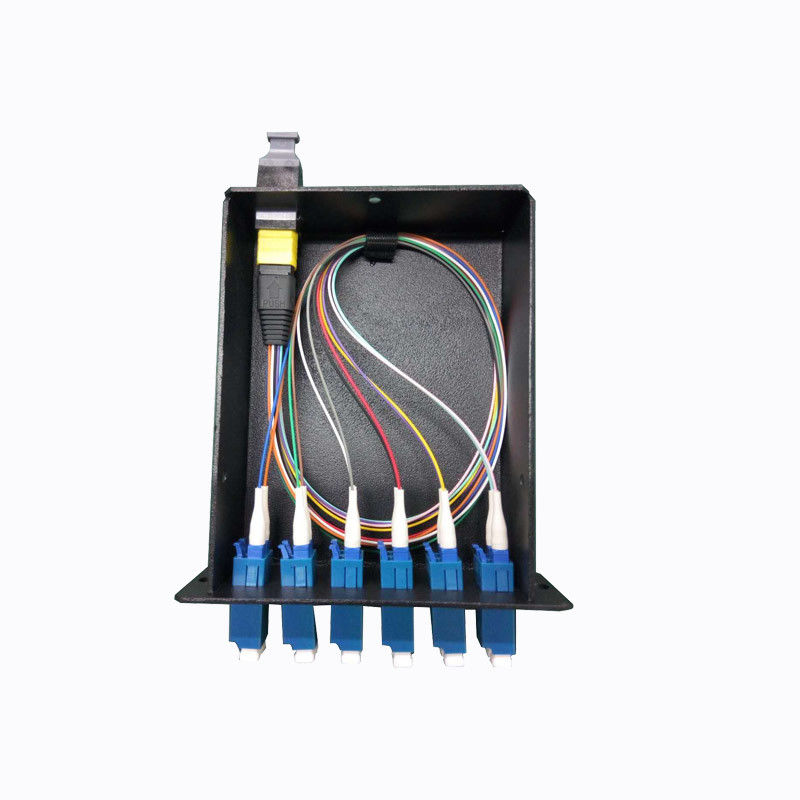

Multimode FHD MPO Cassette Module MPO-12 to 6x LC Duplex, Type A, 12 Fibers OM3

Product Overview

New Light fiber optic MTP/MPO cassettes provide an efficient, low-cost solution for transitioning from multi-fiber cables to fiber optic patch cables without splicing pigtails.

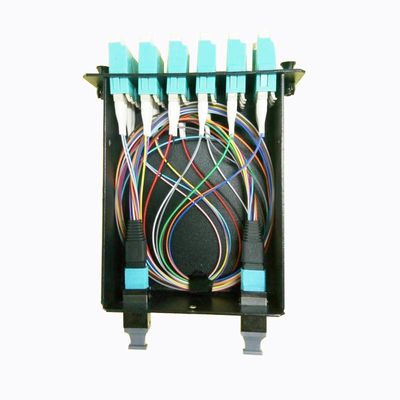

The cassette features an internal fan out/breakout cable assembly utilizing Corning fiber in ribbon configuration to 24 LC connections. These couple with 24 LC patch cables on the front panel and 2 MTP/MPO 12 UPC connectors on the rear. Compatible with both vertical and horizontal MPO cassette holders.

FHD High Density Series

Versatile solution available in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications. Supports up to 96 LC fibers in 1U configuration.

Product Features

High-density modular design supporting up to 96 fibers in 1U for optimal space utilization
Pre-terminated cassette design ensures reliability and rapid deployment
High-performance connectors deliver low loss optical budget
Plug-and-play modules enable fast installation of multiple fiber links
Comprehensive range of performance and polarity configurations available
Corning fiber compliant with Telcordia, EIA/TIA, and IEC standards

Watch Product Video 12 Fibers OM3 MPO Cassette Module with MPO-12 to 6x LC Duplex and High Density Modular Design 1

Technical Specifications

Parameter	Specification
Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38"x4.29"x4.64" (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensuring transmitter-receiver alignment is critical in fiber optic installations. FS provides intelligent solutions to help manage and optimize network connectivity and polarity.

Contact Us: WhatsApp 008613534063703
