|Place of Origin:||China|
|Brand Name:||New light|
|Model Number:||6/12 port MPO|
|Minimum Order Quantity:||10 pcs|
|Price:||USD 68-120 set|
|Packaging Details:||opp bag+Carton box|
|Delivery Time:||2-15 working days|
|Payment Terms:||T/T, Western Union, MoneyGram ,Paypal|
|Supply Ability:||10000 per day|
|Application:||FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network||Material:||Cold- Roll Steel,Aluminum|
|Fiber Type:||Singlemode Or Multimode||Connector:||MPO/MTP|
|Connector Type:||MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC||Operating Temperature:||-40℃ ~ +80℃,40~+85|
|Product Name:||Optical Fiber MPO Cassette||Insertion Loss:||Standard Loss And Elite|

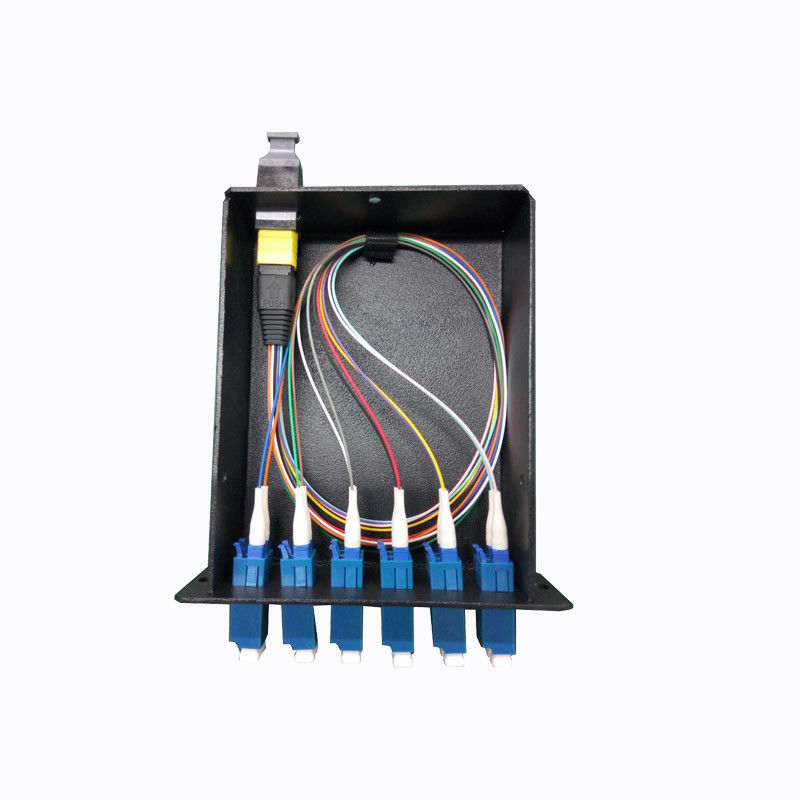

MPO-12 to 6x LC Duplex, Type A, 12 Fibers OM3 Multimode FHD MPO Cassette
New Light fiber optic MTP/MPO cassettes are an easy and low cost no-splice solution to transfer from multi-fiber cables to fiber optic patch cables without the use of splice on pigtails.
Inside the cassette is a fan out/breakout cable assembly, making use of a Corning fiber in a ribbon configuration to 24 LC connections which then couple with 24 LC patch cables on the front of the cassette, and 2 MTP/MPO 12 UPC connectors on the rear of the cassette. The cassette can be installed in either a vertical or a horizontal MPO cassette holder
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.
Learn more ,pls link :
|Fiber Count||12 / 24||Fiber Mode||OM3 50/125 μm|
|Front Connector Type||12 LC UPC Duplex||Rear Connector Type||1x MPO UPC Male (pinned)|
|MPO Adapter||Key up to Key down||Glass Fiber||Corning ClearCurve®|
|Insertion Loss||MPO≤0.35 dB, LC≤0.2 dB||Return Loss||MPO≥20 dB, LC≥30 dB|
|Operating Temperature||0°C to 70°C||Storage Temperature||-40°C to 75°C|
|Dimensions (HxWxD)||1.38''x4.29''x4.64'' (35x109x118 mm)||Application||Matching for Type AF Cassette|
|Front Connector||LC/SC duplex|
|Material of Sleeve||Zirconia Ceramic|
|Insertion Loss||Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB|
|Return Loss||Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB|
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
