12 Fibers OS2 Single Mode High Density Modular MPO Cassette Pre-terminated for Quick Deployment

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Material:

Cold- Roll Steel,Aluminum

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

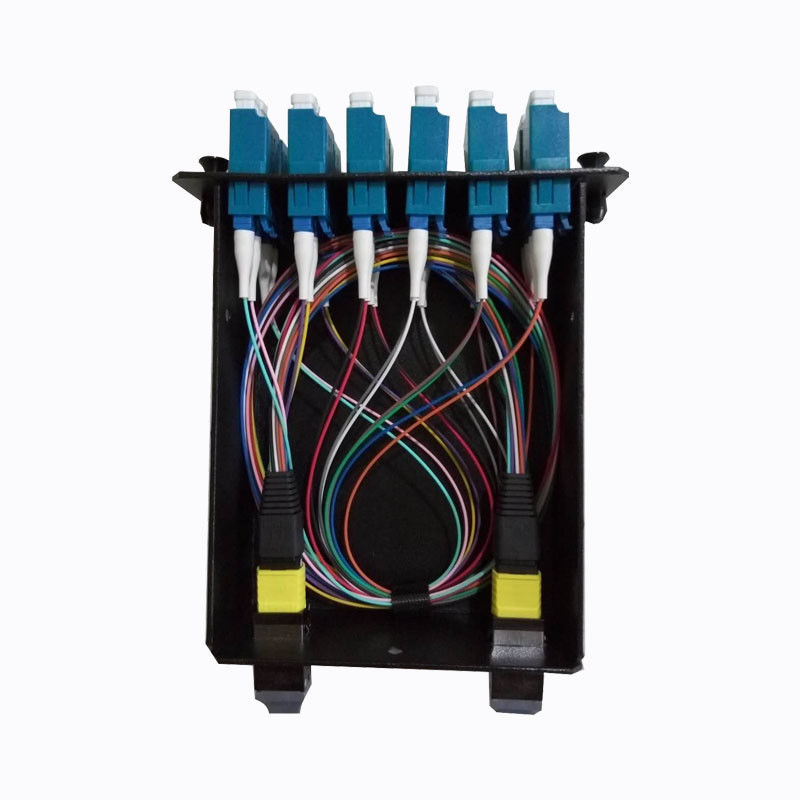

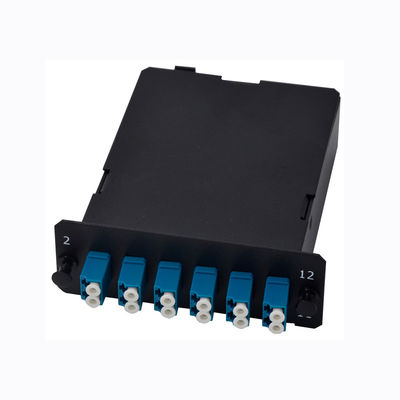

MPO-12 to 6x LC Duplex, Type A, 12 Fibers OS2 Single Mode FHD MPO Cassette

MTP/MPO cassettes are manufactured using high-quality Corning fiber optic cable and are available in various fiber modes including Single-mode (9/125μm), Multimode OM1 (62.5/125μm), and Multimode OM3 (50/125μm). These cassettes support multiple fiber optic connector types including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors. All cassettes can be configured with either Male or Female MTP/MPO connectors to meet specific application requirements.

New Light fiber optic MTP/MPO cassettes provide an efficient, low-cost, no-splice solution for transitioning from multi-fiber cables to fiber optic patch cables without requiring splice-on pigtails.

The FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications, supporting up to 96 LC fibers in 1U configurations.

Product Features

High-density modular design supporting up to 96 fibers in 1U for optimal space utilization
Pre-terminated cassette design ensures improved reliability and rapid deployment
High-performance connectors deliver low loss optical budget
Plug-N-play modules enable fast installation of multiple fiber links
Available in wide range of performance and polarity configurations
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Product Video

Watch product overview video 12 Fibers OS2 Single Mode High Density Modular MPO Cassette Pre-terminated for Quick Deployment 1

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38"x4.29"x4.64" (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides intelligent solutions to help manage and optimize network connectivity.

Contact Us: WhatsApp 008613534063703
