24 Fibers OS2 Single Mode High-Density Modular MPO Cassette with Pre-Terminated Design for Efficient Fiber Optic Networks

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Fiber Type:

Singlemode Or Multimode

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Product Name:

Optical Fiber MPO Cassette

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

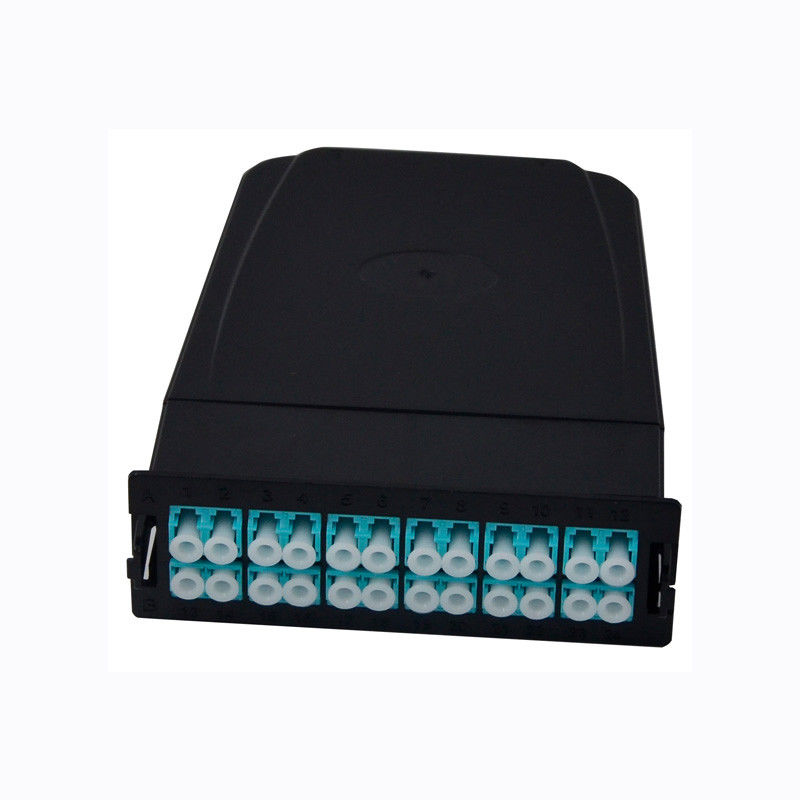

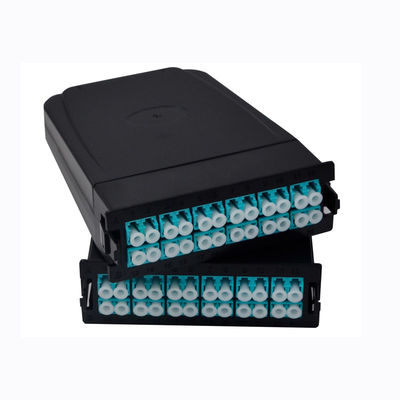

2x MPO-12 to 12x LC Duplex, Type A, 24 Fibers OS2 Single Mode FHD MPO Cassette

This high-density MPO cassette features 2x MPO-12 to 12x LC Duplex connectivity in Type A configuration, supporting 24 fibers of OS2 Single Mode FHD technology. Designed for efficient space utilization in data centers and telecommunications systems.

MPO connectors provide multifiber connections for high-density backplane and PCB applications, offering up to 12 times the density of standard connectors for significant space and cost savings.

Manufactured with high-quality Corning fiber optic cable, these cassettes are available in various fiber modes including Single-mode (9/125μm), Multimode OM1 (62.5/125μm), and Multimode OM3 (50/125μm). Multiple connector port options include LC, SC, FC, and ST connectors with both Male and Female MTP/MPO configurations.

The FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications, supporting up to 96 LC fibers in 1U space.

Product Features

High-density modular design supporting up to 96 fibers in 1U for maximum space efficiency

Pre-terminated cassette design ensures improved reliability and rapid deployment

High-performance connectors deliver low loss optical budget

Plug-N-play modules enable fast installation of multiple fiber links

Wide range of performance and polarity configurations available

Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Watch Product Video

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

Ensuring proper transmitter-to-receiver matching is critical in any installation. Our intelligent solutions help manage and optimize network connectivity and polarity.

Contact Us: WhatsApp +8613534063703
