Low Loss MPO Cassette Module with Singlemode or Multimode MPO Elite Connector for High Density Networks

Brand Name: New light
Model Number: 6/12 port MPO
MOQ: 1~10000
Price: 5~100
Packaging Details: opp bag+Carton box
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS ;ISO9001
Application:
FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network
Fiber Type:
Singlemode Or Multimode
Connector:
MPO/MTP
Connector Type:
MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC
Operating Temperature:
-40℃ ~ +80℃,40~+85
Product Name:
Optical Fiber MPO Cassette
Insertion Loss:
Standard Loss And Elite
Type:
Single-mode/Multi-mode
Warranty:
2 Years
Material:
Plastics And Aluminum Alloy
Supply Ability:
10000 per day
Highlight:

mtp casstte module

,

mpo cassette patch panel

Product Description
Low Loss MPO Cassette Module - Singlemode & Multimode MPO Elite Connector
New Light offers low loss singlemode and multimode MPO Elite connectors for MPO cassette modules, designed for high-density network components and systems. These MPO cassette modules are suitable for MPO/MTP applications, available in 12 and 24 fiber versions with 12 LC (Duplex) / SC (Simplex) optical parts.

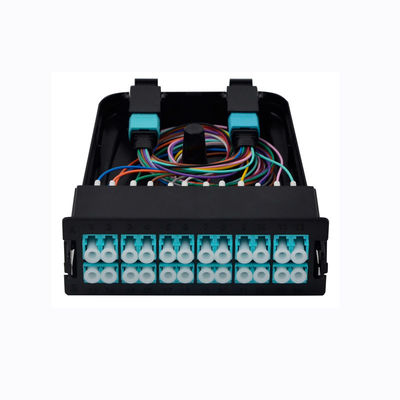

Low Loss MPO Cassette Module with Singlemode or Multimode MPO Elite Connector for High Density Networks 0
Our MPO fiber connectors are multifiber connections used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.
FHD High Density Series is a versatile solution available in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, with 1U supporting up to 96 LC fibers.

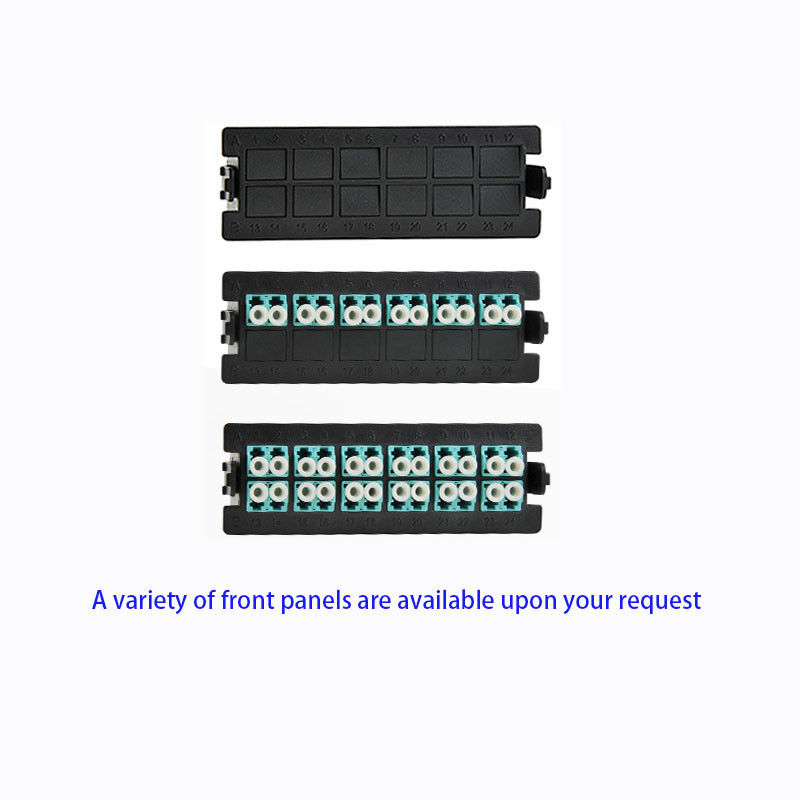

Low Loss MPO Cassette Module with Singlemode or Multimode MPO Elite Connector for High Density Networks 1
Product Features
  • High-density modular design, up to 96 fiber in 1U for efficient utilization
  • Pre-terminated cassette for improved reliability and quick deployment
  • High performance connectors to achieve a low loss optical budget
  • Plug-N-play modules allow fast installation of multiple fiber links
  • Offered in a wide range of performance and polarity configurations
  • Corning fiber compliant to Telcordia, EIA/TIA and IEC standards
Watch Product Demonstration
Low Loss MPO Cassette Module with Singlemode or Multimode MPO Elite Connector for High Density Networks 2
Technical Specifications
Fiber Count 12 / 24
Fiber Mode OM3 50/125 μm
Front Connector Type 12 LC UPC Duplex
Rear Connector Type 1x MPO UPC Male (pinned)
MPO Adapter Key up to Key down
Glass Fiber Corning ClearCurve®
Insertion Loss MPO≤0.35 dB, LC≤0.2 dB
Return Loss MPO≥20 dB, LC≥30 dB
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 75°C
Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118 mm)
Application Matching for Type AF Cassette
Performance Properties
Front Connector LC/SC duplex
Material of Sleeve Zirconia Ceramic
Insertion Loss Multimode: UPC ≤0.2dB
Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss Multimode: UPC ≥30dB
Single mode: APC ≥60dB UPC ≥50dB
Polarity Illustration
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides intelligent solutions that can help you manage and optimize your network connectivity.
Low Loss MPO Cassette Module with Singlemode or Multimode MPO Elite Connector for High Density Networks 3
Contact Us: WhatsApp 008613534063703
