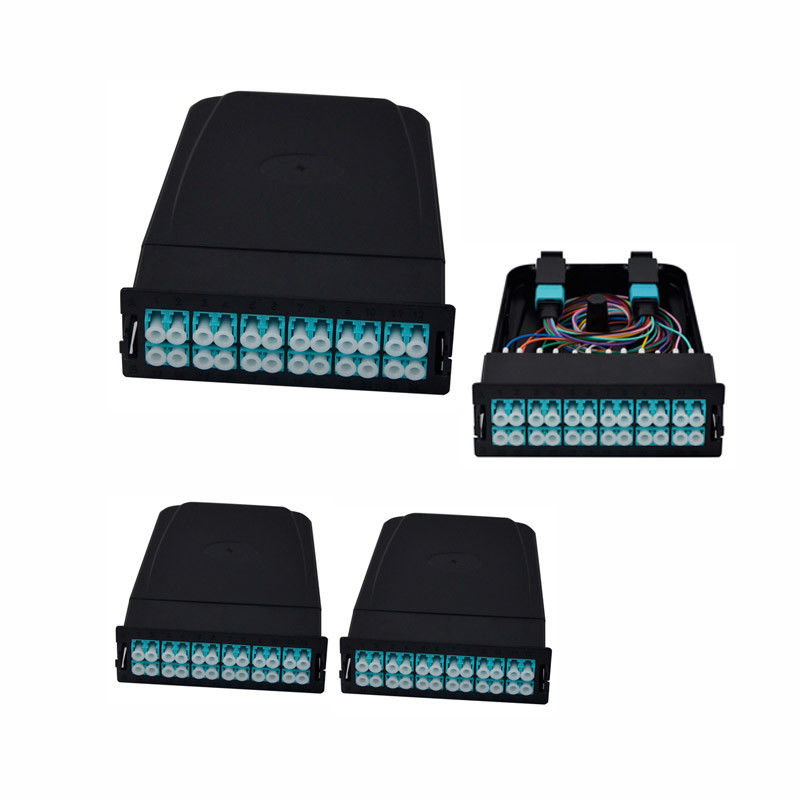

24 Fiber MPO Cassette Module with Corning ClearCurve® and Pre-terminated Design for High-Density Networks

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Color:

Black,Magenta,Yellow/ Red/ Aqua

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A

OS2 24fiber mpo mtp connector and LC duplex adapter mpo mtp cassette Standard Method A

New Light OS2 24fiber mpo mtp connector and LC duplex adapter mpo mtp cassette Standard Method A come with a complete test report detailing the amount of insertion and retention loss, allowing a network administrator to accurately calculate power requirements to avoid misconfiguration. Available in Single-mode (OS2) and Multimode (OM3/OM4) fiber specifications, along with 12 or 24 fiber counts.

New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in various fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.

FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.

Product Features

High-density modular design, up to 96 fiber in 1U for efficient utilization
Pre-terminated cassette for improved reliability and quick deployment
High performance connectors to achieve a low loss optical budget
Plug-N-play modules allow fast installation of multiple fiber links
Offered in a wide range of performance and polarity configurations
The corning fiber compliant to Telcordia, EIA/TIA and IEC standards

Learn more - Watch Product Video 24 Fiber MPO Cassette Module with Corning ClearCurve® and Pre-terminated Design for High-Density Networks 2

Technical Specifications

Fiber Count	12 / 24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.

WhatsApp: 008613534063703
