OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A

OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A
OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A

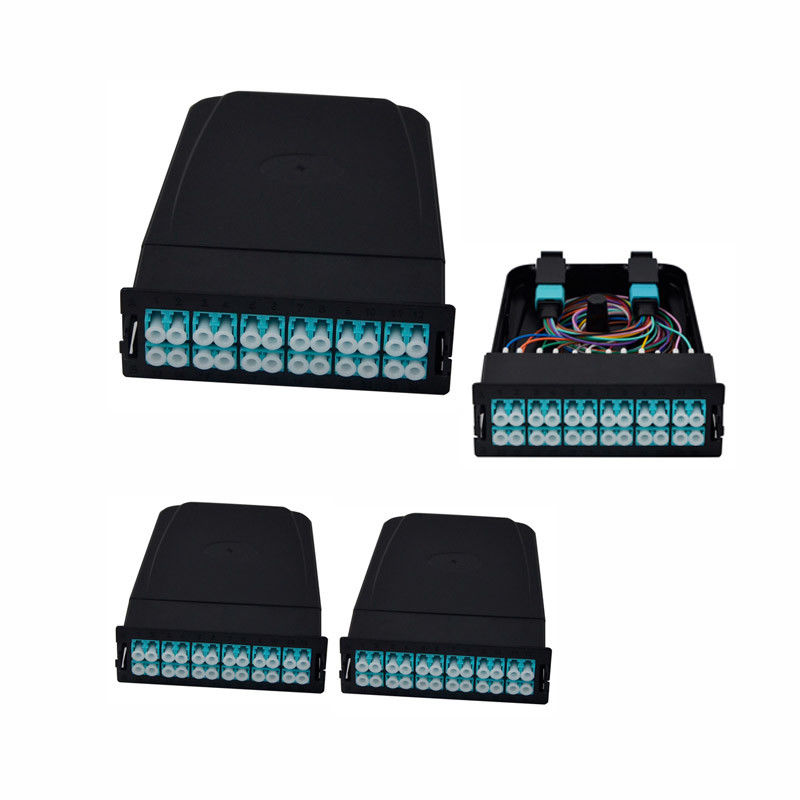

Large Image :  OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A

Product Details:
Place of Origin: China
Brand Name: New light
Certification: ROHS ;ISO9001
Model Number: 6/12 port MPO
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 68-120 set
Packaging Details: opp bag+Carton box
Delivery Time: 2-15 working days
Payment Terms: T/T, Western Union, MoneyGram ,Paypal
Supply Ability: 10000 per day

OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A

Description
Application: FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network Connector Type: MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC
Operating Temperature: -40℃ ~ +80℃,40~+85 Insertion Loss: Standard Loss And Elite
Type: Single-mode/Multi-mode Warranty: 2 Years
Material: Plastics And Aluminum Alloy Color: Black,Magenta,Yellow/ Red/ Aqua
High Light:

mtp casstte module

,

mpo cassette patch panel

OS2 24fiber mpo mtp connector and LC duplex adapter mpo mtp cassette Standard Method A





Product description:



New Light OS2 24fiber mpo mtp connector and LC duplex adapter mpo mtp cassette Standard Method A come with a complete test report detailing the amount of insertion and retention loss, allowing a network administrator to accurately calculate power requirements to avoid misconfiguration. Available in Single-mode (OS2) and Multimode (OM3/OM4) fiber specifications, along with 12 or 24 fiber counts.



New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.



OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A 0OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A 1



FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.





Product Features:


• High-density modular design, up to 96 fiber in 1U for efficient utilization.

• Pre-terminated cassette for improved reliability and quick deployment.

• High performance connectors to achieve a low loss optical budget.

• Plug-N-play modules allow fast installation of multiple fiber links.

• Offered in a wide range of performance and polarity configurations.

• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.





Learn more ,pls link :

https://youtu.be/vq-AZxb1ab4



OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A 2



Fiber Count 12 / 24 Fiber Mode OM3 50/125 μm
Front Connector Type 12 LC UPC Duplex Rear Connector Type 1x MPO UPC Male (pinned)
MPO Adapter Key up to Key down Glass Fiber Corning ClearCurve®
Insertion Loss MPO≤0.35 dB, LC≤0.2 dB Return Loss MPO≥20 dB, LC≥30 dB
Operating Temperature 0°C to 70°C Storage Temperature -40°C to 75°C
Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118 mm) Application Matching for Type AF Cassette









Performance Properties:



Front Connector LC/SC duplex
Material of Sleeve Zirconia Ceramic
Insertion Loss  Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB






Polarity Illustration:


In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.

OEM Mpo Mtp Connector / LC Duplex Adapter Mpo Mtp Cassette Standard Method A 3
