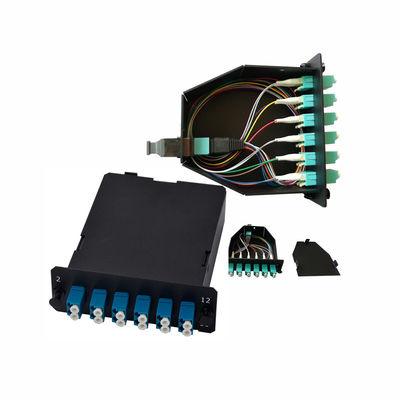

Low Loss Insertion 12/24 Fiber MPO Cassette Module with LC Duplex Adapter for High-Density Networks

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Application:

FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Operating Temperature:

-40℃ ~ +80℃,40~+85

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Color:

Black,Magenta,Yellow/ Red/ Aqua

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

OS2 24 Fiber Low Loss Insertion MPO/MTP Connector and LC Duplex Adapter Fiber Cassette

High-density OS2 12/24 fiber cassettes with low loss MPO/MTP connectors and LC duplex adapters designed for efficient data center deployments and high-speed network connectivity.

Product Overview

New Light OS2 12/24 fiber low loss insertion MPO/MTP connector and LC duplex adapter fiber cassettes are engineered for high-density, high-speed Ethernet networks. These cassettes optimize space utilization and reduce installation costs in data centers requiring simultaneous multi-fiber transmission. A single MTP/MPO cable replaces up to 12 or 24 individual fiber cables in equipment racks, streamlining installations for 10 Gbps, 40 Gbps, and 100 Gbps network applications.

Technical Specifications

Manufactured with premium Corning fiber optic cable, these cassettes are available in various fiber modes including Single-mode (9/125μm), Multimode OM1 (62.5/125μm), and Multimode OM3 (50/125μm). Multiple connector port options include LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All cassettes can be configured with either Male or Female MTP/MPO connectors to meet specific application requirements.

FHD High Density Series

Versatile solution available in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications. The 1U configuration supports up to 96 LC fibers for maximum density.

WhatsApp: 008613534063703

Key Features

High-density modular design supporting up to 96 fibers in 1U for optimal space utilization
Pre-terminated cassette design ensures improved reliability and rapid deployment
High-performance connectors deliver low loss optical budget performance
Plug-and-play modules enable fast installation of multiple fiber links
Comprehensive range of performance and polarity configurations available
Corning fiber compliant with Telcordia, EIA/TIA, and IEC standards

Watch Product Video Low Loss Insertion 12/24 Fiber MPO Cassette Module with LC Duplex Adapter for High-Density Networks 1

Technical Specifications Table

Parameter	Specification
Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

Proper polarity management ensures transmitter-receiver alignment in network installations. Our solutions provide intelligent connectivity management for optimized network performance.
