|Application:||FTTH FTTB FTTX Network,Telecommunication,Data Center Network,MTP MPO Network||Connector Type:||MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC|
|Operating Temperature:||-40℃ ~ +80℃,40~+85||Insertion Loss:||Standard Loss And Elite|
|Material:||Plastics And Aluminum Alloy||Color:||Black,Magenta,Yellow/ Red/ Aqua|
mtp casstte module,
mpo cassette patch panel

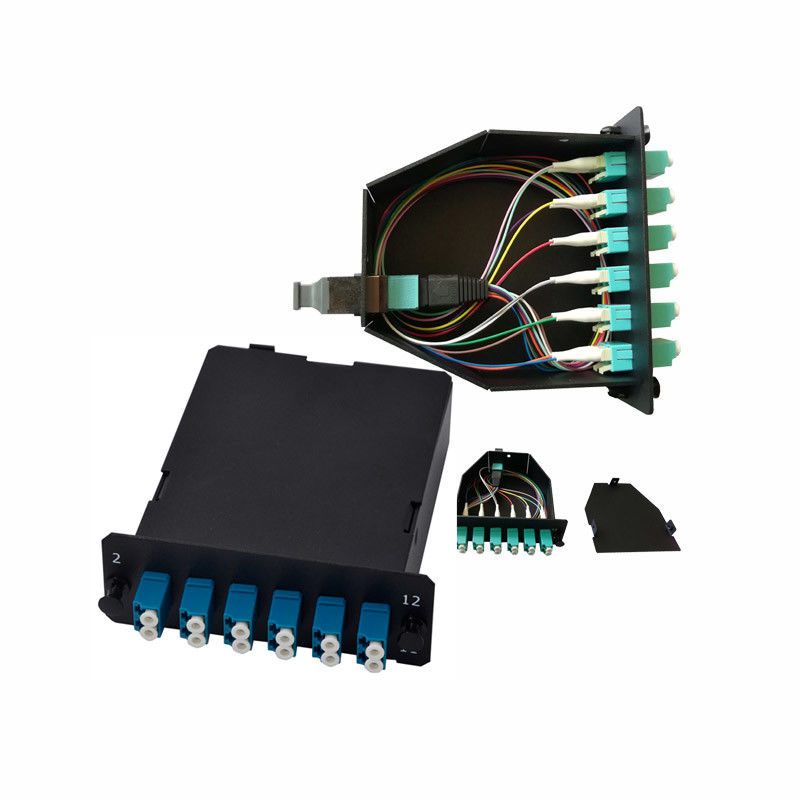

OS2 12fiber low loss insertion mpo mtp connector and LC duplex adapter fiber cassette
New Light OS2 12fiber low loss insertion mpo mtp connector and LC duplex adapter fiber cassette contain 12 or 24 fibers and are designed for high-density, high-speed Ethernet networks. Use them to optimize space and reduce costs in data centers where you need to transmit over multiple fibers at the same time. A single MTP/MPO cable replaces up to 12 or 24 fiber cables in the equipment rack enabling easier installations. The most common application is for 10 Gbps, 40 Gbps and 100 Gbps network connectivity.
New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.
Learn more ,pls link :
|Fiber Count||12 / 24||Fiber Mode||OM3 50/125 μm|
|Front Connector Type||12 LC UPC Duplex||Rear Connector Type||1x MPO UPC Male (pinned)|
|MPO Adapter||Key up to Key down||Glass Fiber||Corning ClearCurve®|
|Insertion Loss||MPO≤0.35 dB, LC≤0.2 dB||Return Loss||MPO≥20 dB, LC≥30 dB|
|Operating Temperature||0°C to 70°C||Storage Temperature||-40°C to 75°C|
|Dimensions (HxWxD)||1.38''x4.29''x4.64'' (35x109x118 mm)||Application||Matching for Type AF Cassette|
|Front Connector||LC/SC duplex|
|Material of Sleeve||Zirconia Ceramic|
|Insertion Loss||Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB|
|Return Loss||Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB|
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
