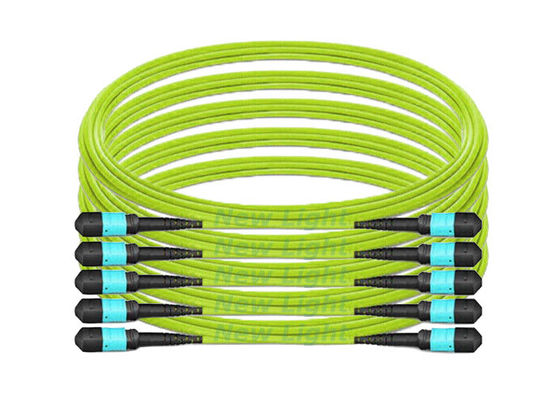

OM5 Fiber 12 Core MPO MTP Trunk Cable Lime Green Optic Patch Cord

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO MTP

Material:

LSZH OFNR OFNP

Mode Type:

Core Type:

12 Core

Cable Color:

Lime Green

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

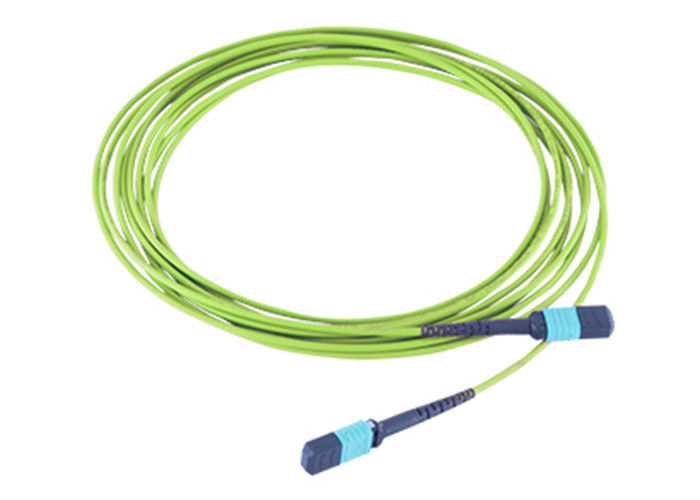

MPO MTP Trunk Cable - MPO to MPO 12 Core OM5 Fiber Lime Green Optic Patch Cord

OM5 fiber has been approved as a new multimode optical fiber for high-speed data center applications. It is designed to support at least four low-cost wavelengths in the 850-950 nm range, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four.

MPO MTP Cable Overview

SWDM technology allows continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds. SWDM has many applications in Data Centers and other applications. OM5 cabling is fully compatible and intermateable with OM3 and OM4 cabling.

MTP/MPO connectors are used to interconnect cassettes, panels, or fan outs, available in standard 8, 12, 24, or 48 cores versions using a compact and rugged microcables structure. The compact cable design optimizes cableway use and improves airflow. These MPO/MTP cables are built with the highest quality components, with Low Loss Elite versions featuring low insertion loss for demanding high-speed networks where power budgets are critical.

MPO MTP Cable Applications

Telecommunication networks
Data Center infrastructure
CATV and Multimedia systems
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

MPO MTP Cable Features

Wavelength range: 850-953 nm
Low insertion loss and back reflection loss
High precision alignment
Good exchangeability
High temperature stability
Compatible with OM3 and OM4 patch cords

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type of Other End	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4, OM5)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

We pack our products using OPP bags and carton boxes to ensure protection during delivery and prevent damage to the goods.

Contact Us: WhatsApp +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost will be higher, resulting in a higher price than your budget.

Q: What's the price?

A: The price depends on your quantity. After you provide your quantity requirements, we will offer our best price. Large quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for more shipping solutions.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control equipment, with all products 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are available in stock, and we can handle urgent orders.

Q: What's your warranty?

A: For patch cords, we offer 2 years warranty since delivery for non-artificial damage. For artificial damage, we can repair it for free but freight will be paid by your side.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packing upon request.

Q: Can you do OEM/ODM?

A: Yes, we can. As a manufacturer, all products accept OEM/ODM and we can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we can provide samples for free with freight repaid by your side. For high-value products, sample charges apply but will be returned after order placement.

Q: How can I order?

A: 1. Send us your requirements with product name, specifications, and quantity. 2. We provide our best price and lead time. 3. Upon acceptance, we issue Proforma Invoice. 4. Production begins after payment. 5. We confirm shipping details and provide tracking number. 6. We strive for long-term cooperation.

Q: What is your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
