|Connector Type:||MPO MTP||Material:||LSZH OFNR OFNP|
|Mode Type:||OM5||Core Type:||12 Core|
|Cable Color:||Lime Green||Length:||Can Be Customized According To Your Requirements|
|Certificate:||CE , ISO , RoHS||Delivery Time:||2-7 Working Days After Received Deposit|
|Production Ability:||500 Pcs / Day||Payment Term:||T/T , 30% Deposit In Advance|
mpo to mpo cable,
mpo fanout cable

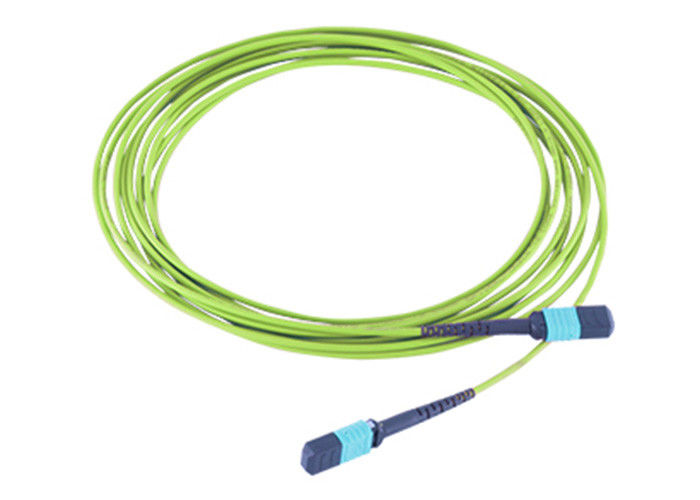

MPO MTP Trunk Cable MPO TO MPO 12 Core OM5 Fiber Lime Green Optic Patch Cord
MPO MTP Cable Overview
OM5 fiber has been approved as a new multimode optical fiber for high-speed data center applications. It is designed to support at least four low-cost wavelengths in the 850-950 nm range, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds. SWDM has many applications in Data Centers and other applications.OM5 cabling fully compatible and intermateable with OM3 and OM4 cabling.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
MPO MTP Cable Application
CATV and Multimedia
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)
Wavelength range 850-953 nm
Low insertion loss and back reflection loss
High precision alignment
High temperature stability
Compatible with OM3 and OM4 patchcord
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4, OM5)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
