Fiber Optic Patch Panel

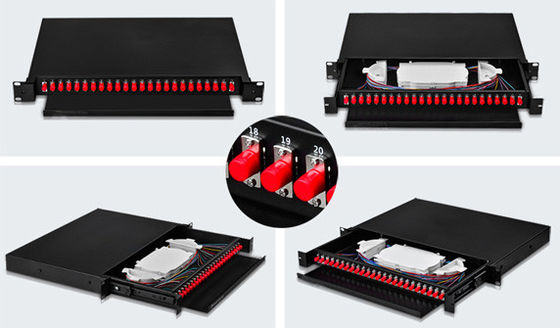

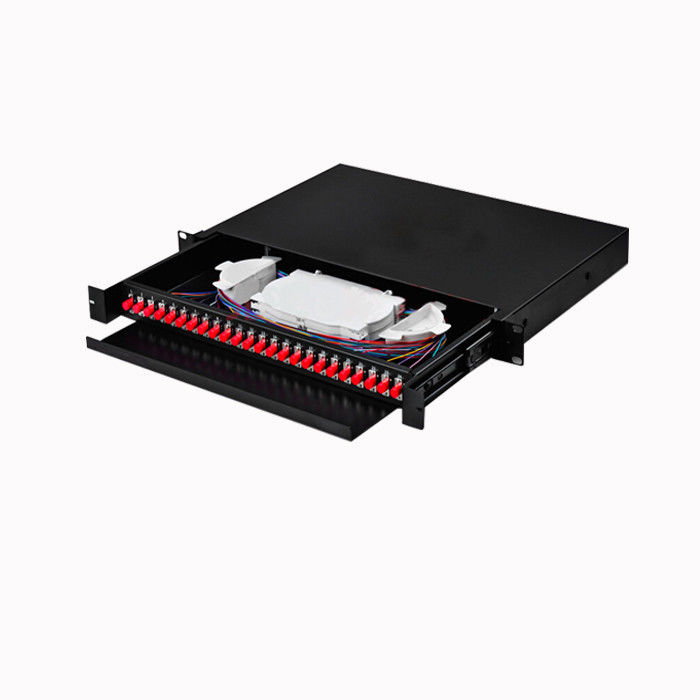

24 Port Rack Mountable Fiber Optic Patch Panel with Slide-Out Drawer Enclosure for Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

24 Port Rack Mountable Fiber Optic Patch Panel with Slide-Out Drawer Enclosure for Data Centers

Brand Name:	New light
Model Number:	12/ 24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Material:

SPECC

Aplication:

Data Centers,pre-terminated Installations

Front Panel:

LC , SC , ST , FC , E2000

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Color:

White

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Adapter Type:

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

ODF Patch Panel Patch Cord - SC/FC/ST/LC Splicing 24 Port Fiber Optic Patch Panel

This 24-port fiber optic patch panel (ODF) provides comprehensive connectivity solutions for various fiber optic applications. Available in multiple configurations with pigtails ranging from 6 to 36 ports in all connector types including LC, LC APC, SC, SC APC, FC, FC APC, and ST.

Product Specifications

Available in 1U and 2U patch panel kits supporting various fiber core configurations:

1U Panels: 6 to 36 ports in all connector types, up to 72 ports with LC/LC APC
2U Panels: 6 to 72 ports in all connector types, up to 144 ports with LC/LC APC
Fiber Types: Single Mode 9/125µm, Multimode 62.5/125µm, and Multimode 50/125µm OM3
Core Configurations: 12, 24, 36, 48, 72, 96, 144 core fiber applications
Adapter Interfaces: SC, ST, FC, LC, MTRJ, E2000 and others

Applications

Telecommunications subscriber loop systems
Fiber to the home (FTTH) installations
LAN/WAN network infrastructure
CATV distribution systems

Key Features

Designed for optical cable termination branch connections
19-inch standard rack mounting structure
Compatible with various adapter installations
Drawer structure for easy operation and maintenance
Compact design optimizes space utilization
Simplified management and operation
Standard size with lightweight, rational structure

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 core	1U	430 * 354.1 * 44mm

Tags:
