Fiber Optic Patch Panel
>
1U Rack Mount 48 Port Fiber Optic Patch Panel with SC/FC/ST/LC Adapters for High Density LAN

1U Rack Mount 48 Port Fiber Optic Patch Panel with SC/FC/ST/LC Adapters for High Density LAN

Brand Name: New light
Model Number: 12/ 24 /48 core ptach panel
MOQ: 1~10000
Price: 10~100
Packaging Details: opp bag+Carton box
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
ROHS ;ISO9001
Material:
SPECC
Aplication:
Data Centers,pre-terminated Installations
Front Panel:
LC , SC , ST , FC , E2000
Interface:
Powder Coated
Product Name:
24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
Tray:
12/24/48/72/96 Fiber
Weight:
6kg
Material:
Phosphor Bronze
Color:
White
Storage Temperature:
-45°C~+60°C
Product Type:
Slide-out Drawer Enclosure With Splice Trays
Dimensions:
1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm
Adapter Type:
ST
Supply Ability:
10000 per day
Highlight:

fiber optic parts and accessories

,

fiber optic termination panel

Product Description
1U 19" Fiber Optic Patch Panel - SC/FC/ST/LC 48 Port
These 19-inch rack-mount fiber patch panels are designed for high-density LAN interconnect or cross-connect patching applications. Each panel features 48 SC fiber optic connector couplers and is available in Multimode (62.5/125 or 50/125), Singlemode (9/125), and Singlemode APC (9/125) versions for quick order fulfillment.
The slide-out rack mount fiber optic enclosure is loaded with 3 LC multimode duplex adaptors and splice tray, while the 6-port 19-inch slide-out rack mount closure includes 6 ST singlemode adaptors and splice tray.

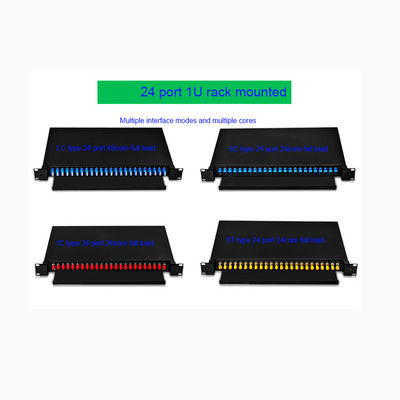

1U Rack Mount 48 Port Fiber Optic Patch Panel with SC/FC/ST/LC Adapters for High Density LAN 0
Available in multiple models to accommodate 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Related fiber accessories and pigtails are available as optional components.
Applications
  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN networks
  • CATV systems
Key Features
  • Designed for branch connection of optical cable termination
  • 19" standard structure with rack mounting capability
  • Compatible with various adaptor installations
  • Drawer structure for easy operation
  • Compact design for space optimization
  • Easy management and operation
  • Standard size with lightweight and rational structure
Mechanical and Environmental Specifications
Parameter Specification
Operating temperature -25℃ to +40℃
Storage temperature -25℃ to +55℃
Relative humidity ≤85% (+30℃)
Air pressure 70Kpa to 106Kpa
Color Black

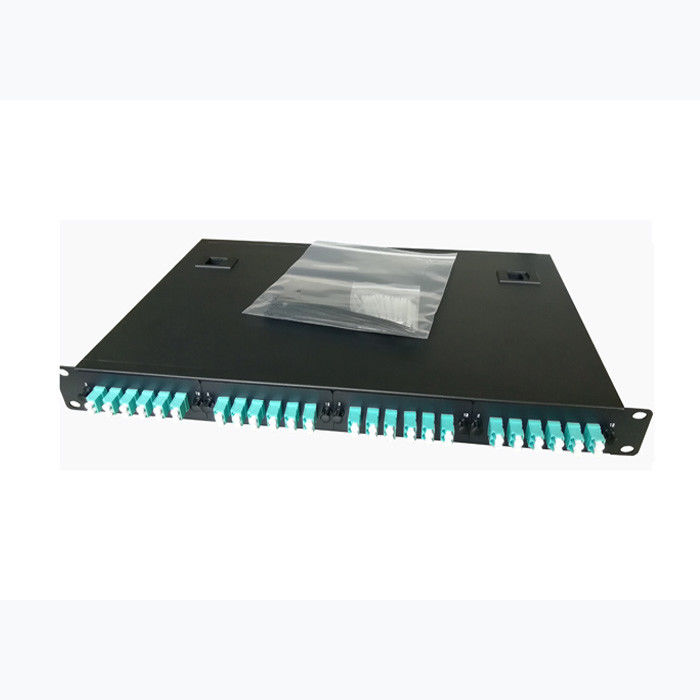

1U Rack Mount 48 Port Fiber Optic Patch Panel with SC/FC/ST/LC Adapters for High Density LAN 1
Dimensions
Model Fiber Quantity Height Dimensions (LxWxH)
Rack Mount 12/24/48/96 core 1U 430*354.1*44mm
Frequently Asked Questions
1. Are you the real factory?
Yes, we are the actual manufacturer with 16 years of industry experience.
2. What is your fiber brand?
Fiber brands include YOFC and FiberHome.
3. What are your main products?
Fiber optic patch panels, fiber MPO & MTP cassettes, MPO & MTP cables, outdoor fiber optic cables, indoor fiber optic cables, FTTH drop cables, ADSS cables, indoor armored patch cords, and optical patch cords (SC, LC, FC, ST, MTP, MPO).
4. Product quality guarantee period?
20-year guarantee for fiber optic cable products.
5. Do you have certificate for raw material?
We maintain long-term relationships with qualified ISO9001 and ROHS certified raw material suppliers.
6. What is your delivery time?
Within 48 hours for standard fiber optic products.
7. What is your minimum order quantity (MOQ)?
MOQ for Fiber Optic Cable Patch Panel is 10 sets. No MOQ required for fiber optic patch cords as we maintain stock for standard types.
8. Do you have distributors in other countries?
We currently sell directly to customers and offer factory pricing.
9. What payment methods do you accept?
For large orders: T/T. For small orders: T/T and Paypal are acceptable.
10. What are your shipping and delivery options?
For large orders: by sea (LCL or FCL). For small orders: by sea (LCL), by air, or by courier services - all options available.
