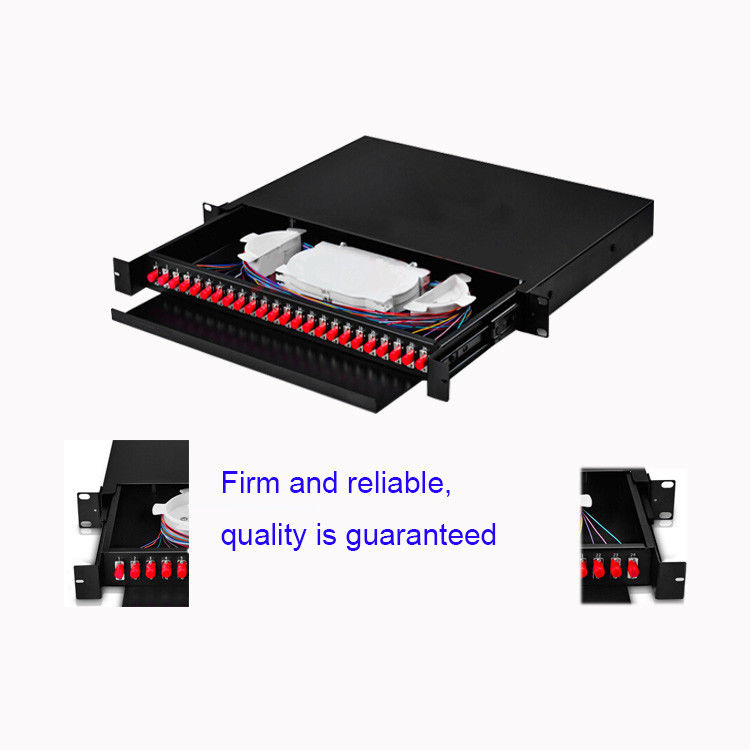

19" Standard Size Fiber Optic Patch Panel with Drawer Structure and 12/24/48/72/96 Fiber Tray for Data Centers

Brand Name:	New light
Model Number:	12/ 24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Material:

SPECC

Aplication:

Data Centers,pre-terminated Installations

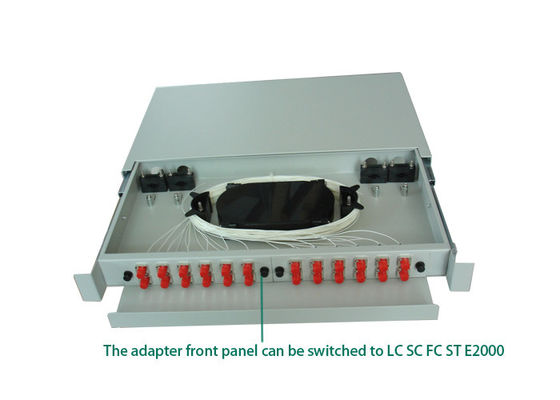

Front Panel:

LC , SC , ST , FC , E2000

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Color:

White

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Adapter Type:

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic termination panel

Product Description

Black Box Fiber Optic Patch Panel - Fiber Enclosure for Inside Cabling

Professional fiber optic terminal box designed for secure connections between fiber optic cables and pigtails, providing reliable protection for fiber optic splices.

Product Overview

This fiber optic FTTH box accommodates fiber optic cables with diameters from Φ16 to 22 mm and is suitable for indoor, outdoor, and CATV system applications.

Key Features

19" standard rack size for easy installation
Lightweight construction with excellent strength and anti-shocking properties
Superior dustproof protection
Well-organized cable management for easy identification
Ample space ensures proper fiber bend radius
Removable adapter fence for flexible configuration
Drawer design with guide rail for smooth operation

Configuration Options

Available in multiple models to support 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Related fiber accessories and pigtails available as optional components.

Applications

Telecommunications subscriber loop systems
Fiber to the Home (FTTH) installations
LAN/WAN network infrastructure
CATV systems

Technical Features

Designed for branch connection of optical cable termination
19" standard rack mounting structure
Supports installation of various adapters
Drawer structure for easy operation
Compact design optimizes space utilization
Simplified management and operation
Standard size with lightweight and rational structure

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 Core	1U	430 * 354.1 * 44mm
