Fiber Optic Patch Panel

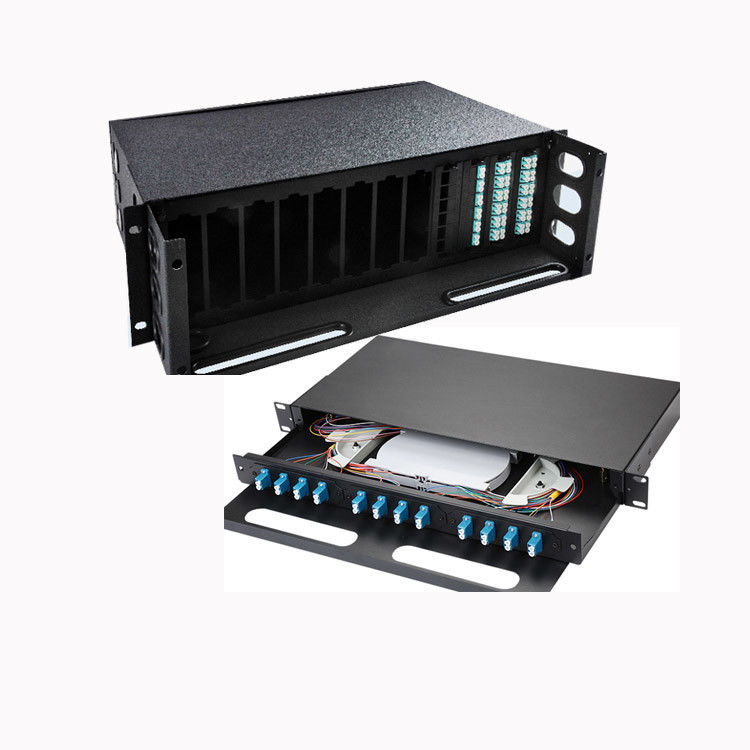

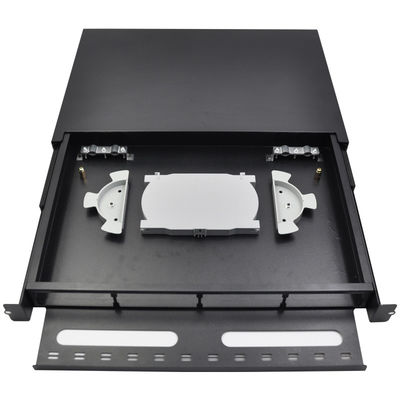

1RU Rack Mount Fiber Optic Patch Panel with 36 Ports and Drawer Style for Easy Cable Management

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1RU Rack Mount Fiber Optic Patch Panel with 36 Ports and Drawer Style for Easy Cable Management

Brand Name:	New light
Model Number:	12/ 24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Interface:

Powder Coated

Front Panel:

LC , SC , ST , FC , E2000

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Material:

SPECC

Weight:

Material:

Phosphor Bronze

Color:

White

Color:

White

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Adapter Type:

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

1RU Rack Mount Fiber Enclosure Loaded Fiber Optic Distribution Frame LGX

Rack Mount Fiber Optic Patch Panel, 36 Ports 19" Drawer Style 1U Fiber Patch Panel with SC, LC, FC, ST connector options and 36 core capacity.

Key Features

19" standard rack size for easy installation
Lightweight construction with strong strength and excellent anti-shock and dustproof properties
Superior cable management system for easy cable identification
Ample space ensures proper fiber bend radius
Removable adapter fence for flexible configuration
Drawer design with guide rails for smooth operation

Available Configurations

Available in multiple models to accommodate 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and E2000. Related fiber accessories and pigtails available as options.

Applications

Telecommunications subscriber loop systems
Fiber to the Home (FTTH) installations
LAN/WAN network infrastructure
CATV systems

Additional Features

Designed for branch connection of optical cable termination
19" standard rack mounting structure
Supports installation of various adapters
Drawer structure for easy operation and maintenance
Compact design optimizes space utilization
Simplified management and operation
Standard size with lightweight and rational structure

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 Core	1U	430 * 354.1 * 44mm
