1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector

Certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
China NEW LIGHT OPTICS TECHNOLOGY LIMITED certification
Customer Reviews
We very pleased cooperate with your company,high quality,fast delivery time,and very good service.

—— Filipe Augusto.Marcelo

We always satisfy with your service and products,sure to have a long time cooperation between us.

—— Eric Charles

Your company OEM service is very good!

—— Pham Huu Thang

your cable material very nice quality

—— Abdule

I'm Online Chat Now

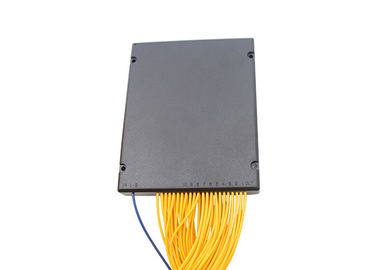

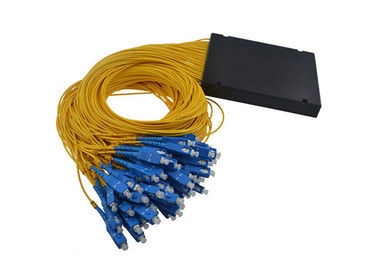

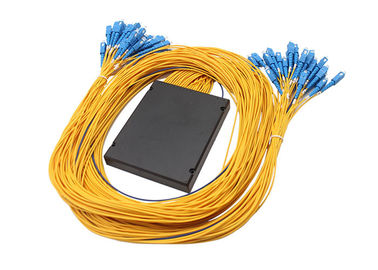

1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector

1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector
1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector 1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector 1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector

Large Image :  1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector

Product Details:
Place of Origin: Shenzhen China
Brand Name: New Light
Certification: CE , ISO ,RoSH
Model Number: ABS Box
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 2000 pcs per month

1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector

Description
Delivery Time: 2-7 Working Days After Received Deposit Connector Type: SC/PC(Can Be FC, LC, E2000, ST)
Mode Type: Single Mode ABS Box Color: Black
Certificate: CE , ISO , RoHS Payment Term: T/T , 30% Deposit In Advance
Cable Length: 1.5m Or Customized Cable Diameter: 0.9mm, 2.0mm Or 3.0mm
High Light:

single mode fiber splitter

,

fiber optic cable splitter

1 in 64 PLC Fiber Optic Splitter 1x64 ABS Box Type with SC / PC Connector



Fiber Optic Splitter​ Description

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

PLC optical splitter is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It has the advantages of insensitivity to wavelength, high stability and uniform splitting.







Fiber Optic Splitter​ Application

1. FTTX Systems
2. LAN, WAN and Metro Networks
3. Analog/Digital Passive Optical Networks CATV Networks
4. Other applications in fiber optic systems





Fiber Optic Splitter​ Feature

●Low insertion loss and low PDL
●High channel counts
●Exceptional reliability and stability
●Wide Operating Wavelength
●Wide Operating Temperature
●Compact design





Fiber Optic Splitter​ Specifications

Item Unit PLC optical splitter ABS box type
Operating Wavelength  nm 1260~1650
Fiber Type / G652D/G657A1/G657A2
Tube Type um 250um Fiber, 600um or 900um loose tube
Channel Type /        1x4         1x8        1x16        1x32        1x64        1x128
Insertion Loss dB       ≤7.2      ≤10.5      ≤13.7      ≤17.0       ≤20.6        ≤24.5
Uniformity dB       ≤0.6        ≤0.8       ≤1.2        ≤1.5         ≤2.0          ≤2.5
PDL dB       ≤0.2        ≤0.2       ≤0.3        ≤0.3        ≤0.35        ≤0.35
TDL dB ≤0.5
Return Loss dB ≥55
Directionality dB ≥55
Working Power mW ≤500
Operating temperature -40~+85
Storage temperature -40~+85
Package size mm 100x80x10 120x80x18 140x115x18

* without connector







CAD Drawing

1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector 0




The PLC optical splitter ABS box type not only available in a variety of split modes and package types, but also can be customized according to customer requirements.

1x64 ABS Box Type PLC 1 In 64 Out PLC Fiber Optic Splitter with SC connector 1








Pakcing



We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .







FQA



1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China



2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



EXW price or CFR price will be better . You can contact us for more solution if you need .



5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



All the products are 100% test before delivery .



6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .



12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
