1x64 ABS Box Type PLC Fiber Optic Splitter with SC Connector for Single Mode Networks

Brand Name:	New Light
Model Number:	ABS Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC/PC(Can Be FC, LC, E2000, ST)

Mode Type:

Single Mode

ABS Box Color:

Black

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

1.5m Or Customized

Cable Diameter:

0.9mm, 2.0mm Or 3.0mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

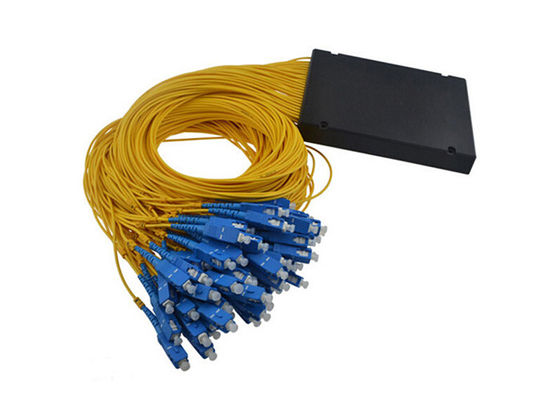

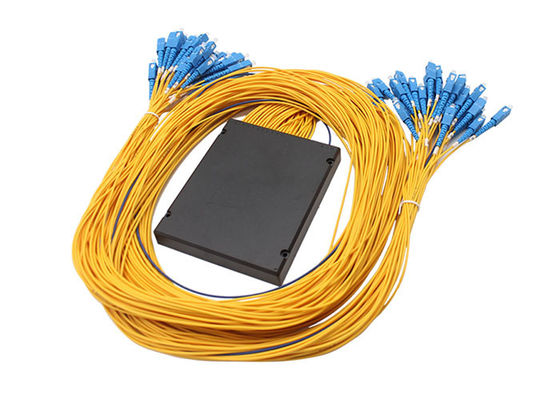

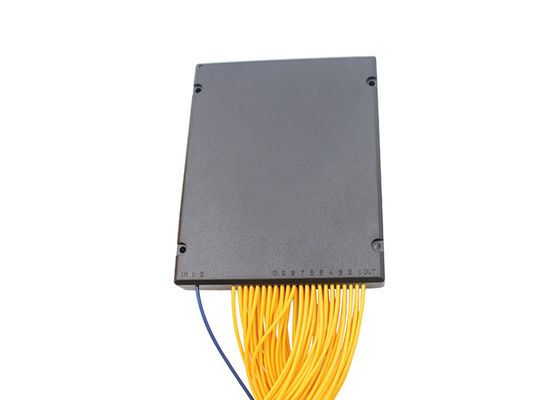

1x64 ABS Box Type PLC Fiber Optic Splitter

1 in 64 PLC Fiber Optic Splitter with SC/PC Connector in ABS Box Type

Product Description

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that preserves and distributes light power across a wide wavelength range of 1260nm to 1650nm. This wavelength range covers the three wavelengths used in EPON technology: 1310nm, 1490nm, and 1550nm. The splitter is particularly suitable for EPON Ethernet passive optical network access technology and FTTP fiber network systems in broadband passive optical distributor (POS) applications.

PLC optical splitters are primarily used for optical signal coupling and distribution in passive optical network (PON) systems, offering advantages including wavelength insensitivity, high stability, and uniform splitting.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	PLC Optical Splitter ABS Box Type
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x4, 1x8, 1x16, 1x32, 1x64, 1x128
Insertion Loss	dB	≤7.2, ≤10.5, ≤13.7, ≤17.0, ≤20.6, ≤24.5
Uniformity	dB	≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0, ≤2.5
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.35, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size	mm	100x80x10, 120x80x18, 140x115x18

* without connector

CAD Drawing

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags with carton boxes for external protection to prevent damage during delivery.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces as the cost and price will be higher than your budget.

Q: What's the price?

A: Pricing depends on quantity. We will offer our best price based on your order quantity, with competitive pricing for larger quantities.

Q: Can you quote FOB price?

A: Yes, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for freight solutions based on your specifications and quantity.

Q: How is your quality?

A: Our production follows IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are in stock, and we can handle urgent orders.

Q: What's your warranty?

A: For patch cords, we offer 2 years warranty for non-artificial damage. For artificial damage, we repair for free but freight is paid by customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we provide free samples with freight paid by customer. For high-value products, sample charges apply but are refunded with orders.

Q: How can I order?

A: 1. Send inquiry with product specifications and quantity. 2. We provide pricing and lead time. 3. Accept quotation and receive proforma invoice. 4. We arrange production after payment. 5. Confirm shipping details and provide tracking. 6. We support long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
