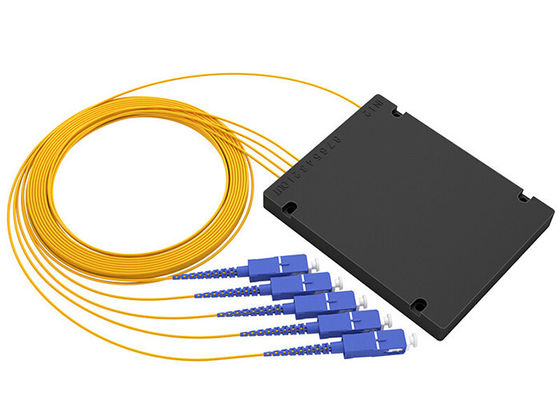

1x4 Split Ratio PLC Fiber Optic Splitter with ABS Box Type and SC/PC Connector

Brand Name:	New Light
Model Number:	ABS Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

SC/PC(Can Be FC, LC, E2000, ST)

Mode Type:

Single Mode

OEM / ODM:

Acceptable

ABS Box Color:

Black

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

1.5m Or Customized

Cable Diameter:

0.9mm, 2.0mm Or 3.0mm

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1x4 PLC Fiber Optic Splitter with SC/PC Connector

The PLC Fiber Optic Splitter is a planar waveguide integrated optical device that efficiently distributes optical power across wavelengths from 1260nm to 1650nm. This comprehensive wavelength coverage makes it particularly suitable for EPON technology applications, including 1310nm, 1490nm, and 1550nm wavelengths. Ideal for FTTP fiber network systems and broadband passive optical networks.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Specifications
Operating Wavelength	nm	1260-1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Insertion Loss	dB	≤7.2 (1x4), ≤10.5 (1x8), ≤13.7 (1x16), ≤17.0 (1x32), ≤20.6 (1x64), ≤24.5 (1x128)
Uniformity	dB	≤0.6 (1x4), ≤0.8 (1x8), ≤1.2 (1x16), ≤1.5 (1x32), ≤2.0 (1x64), ≤2.5 (1x128)
PDL	dB	≤0.2 (1x4), ≤0.2 (1x8), ≤0.3 (1x16), ≤0.3 (1x32), ≤0.35 (1x64), ≤0.35 (1x128)
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40 to +85
Storage Temperature	℃	-40 to +85

Product Design

The PLC optical splitter ABS box type is available in various split modes and package types, with customization options available to meet specific customer requirements. 1x4 Split Ratio PLC Fiber Optic Splitter with ABS Box Type and SC/PC Connector 1

Packaging

Products are securely packaged using OPP bags and outer carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What is the price?

Pricing is quantity-dependent. We provide competitive pricing for bulk orders upon request with detailed specifications.

Can you quote FOB price?

We primarily ship via air couriers (DHL, TNT, UPS, FEDEX) due to product size. EXW or CFR pricing is preferred for most orders.

How is your quality control?

We adhere to IEC and European standards with near dust-free workshops, imported production equipment, and 100% product testing before delivery.

What is your lead time?

We operate three factories in China with rapid production capabilities. Standard patch cords: 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty policy?

Patch cords include a 2-year warranty covering non-artificial damage. Artificial damage repairs are free, with freight costs covered by the customer.

What is your packaging?

We use international export-standard packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we support full OEM/ODM services and can sign confidentiality agreements.

Can I request a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Higher-value products require sample charges refundable with order placement.

How do I place an order?

1. Contact us with product specifications and quantity
2. We provide pricing and lead time
3. Proforma invoice issued after acceptance
4. Production begins after payment
5. Shipping confirmation with tracking provided
6. Ongoing support for long-term cooperation

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
