MPO Cassette Module

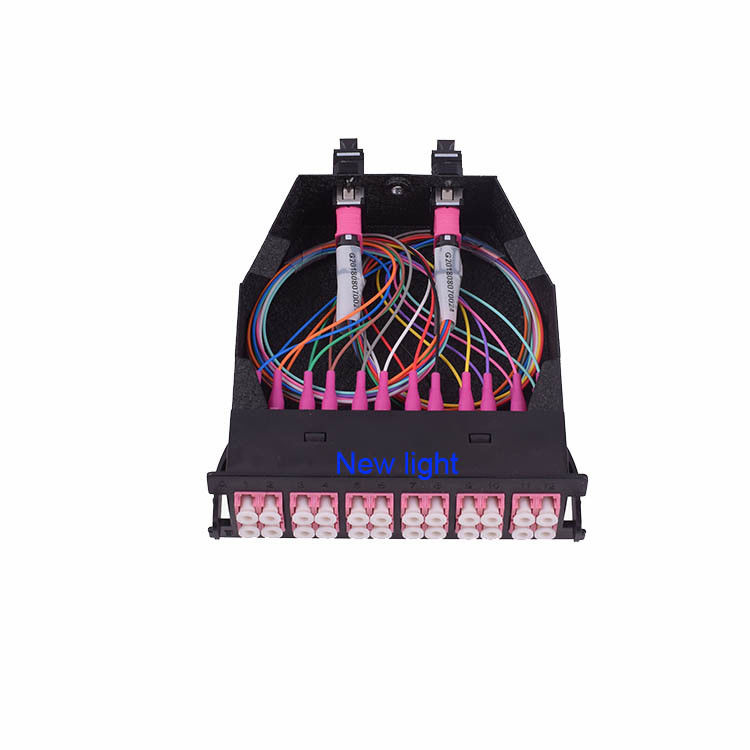

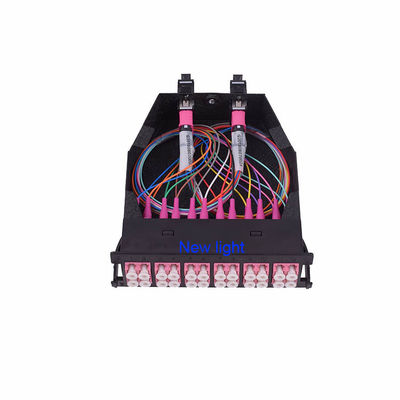

12 Core MPO Cassette Module with Corning Fiber Optic Cable and Low Insertion Loss for High Density Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core MPO Cassette Module with Corning Fiber Optic Cable and Low Insertion Loss for High Density Networks

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Capacity:

SC Max 12core/LC Max 24core

Product Name:

Fiber High Density MTP-12 Cassettes

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

Metal Fiber Optical Box With Adapter / ODF MPO-LC Fiber Optical 12 Core Cassettes LGX Box

New Light MTP/MPO cassettes with patch cord connectors and Corning fiber optic cable provide secure transition between MPO and LC or SC discrete connectors. These cassettes are designed to interconnect MPO backbones with LC or SC patching in high-density data center applications.

Modular System Advantages

The modular system allows for rapid deployment of high-density data center infrastructure while improving troubleshooting and reconfiguration during moves, adds, and changes. Compatible with 1U or 4U 19" multislot chassis mounting.

Applications

Fiber Optic Transmission Systems
CATV Networks
Local Area Networks
Testing/Measurement Instruments

Key Features

19-inch standard size (23-inch available on request)
Available in 1U, 2U, or 4U configurations
12, 24, 48, 96 port options
Compatible with SC, FC, ST, LC adapters (duplex and simplex)
Smart design for secure cable termination and adapter installation
Provides termination, protection, connection, and cable management
RoHS compliant
Full assembly or empty panel options
Black or white color choices

Quality Advantages

UL certified for quality assurance
Independent research and development capabilities
Custom modifications available per customer requirements
OEM packaging with custom logo printing

High Density Series

FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications. Supports up to 96 LC fibers in 1U configuration.

Product Features

High-density modular design for efficient space utilization
Pre-terminated cassettes for improved reliability and quick deployment
High-performance connectors for low loss optical budget
Plug-N-play modules for fast installation of multiple fiber links
Wide range of performance and polarity configurations
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Watch Product Video 12 Core MPO Cassette Module with Corning Fiber Optic Cable and Low Insertion Loss for High Density Networks 2

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Management

Ensuring proper transmitter-receiver matching is critical in any installation. Our intelligent solutions help manage and optimize network connectivity and polarity configurations.

Contact Us: WhatsApp 008613534063703
