|Place of Origin:||China|
|Brand Name:||New light|
|Model Number:||6/12 port MPO|
|Minimum Order Quantity:||10 pcs|
|Price:||USD 68-120 set|
|Packaging Details:||opp bag+Carton box|
|Delivery Time:||2-15 working days|
|Payment Terms:||T/T, Western Union, MoneyGram ,Paypal|
|Supply Ability:||10000 per day|
|Insertion Loss:||Standard Loss And Elite||Type:||Single-mode/Multi-mode|
|Warranty:||2 Years||Material:||Plastics And Aluminum Alloy|
|Wavelength:||850nm/1310nm/1550nm||Capacity:||SC Max 12core/LC Max 24core|
|Product Name:||Fiber High Density MTP-12 Cassettes|
mtp casstte module,
mpo cassette patch panel

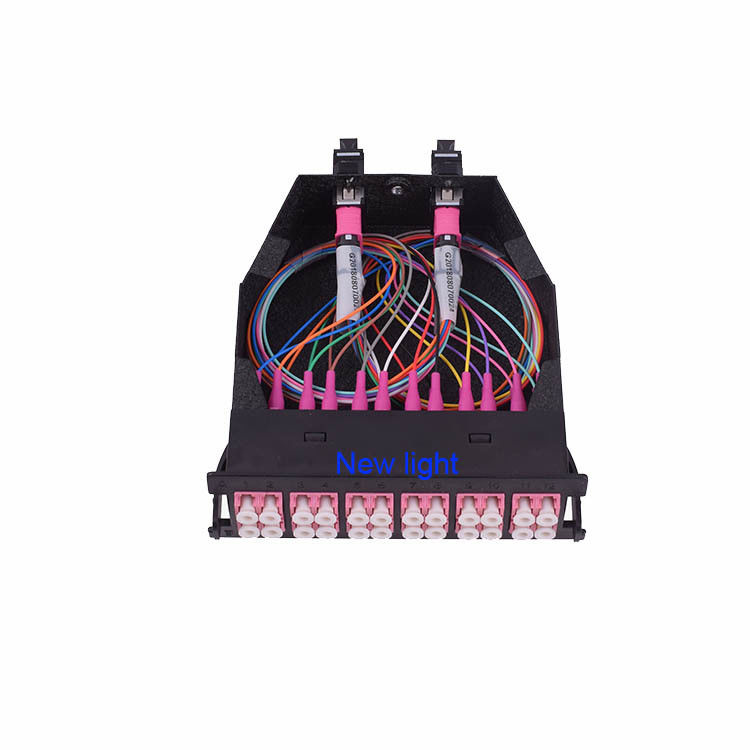

metal Fiber Optical Box with adapter ODF MPO-LC fiber optical 12core cassettes LGX box
New Light mtp mpo cassette with patch cord connector and corning fiber optic cable provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
1. Fiber Optic Transmission System
2. CATV Networks
3. Local Area Network
4. Testing/Measurement Instruments
1. 19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.
2. Standard size is 1U, 2U, or 4U are available on request
3. 12,24,48,96Port optional
4. Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
5. Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
6. Provide termination, protection, connection, management of fiber optic cable
7. RoHS compliant
8. Full assembly (loaded) or empty panel optional
9. Black or White color
1. UL certificate makes the quality lever be the best.
2. Independent research and development, Can be modified according to customer requirements
3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton
New Light MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All Fibertronics MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.
Learn more ,pls link :
|Fiber Count||12 / 24||Fiber Mode||OM3 50/125 μm|
|Front Connector Type||12 LC UPC Duplex||Rear Connector Type||1x MPO UPC Male (pinned)|
|MPO Adapter||Key up to Key down||Glass Fiber||Corning ClearCurve®|
|Insertion Loss||MPO≤0.35 dB, LC≤0.2 dB||Return Loss||MPO≥20 dB, LC≥30 dB|
|Operating Temperature||0°C to 70°C||Storage Temperature||-40°C to 75°C|
|Dimensions (HxWxD)||1.38''x4.29''x4.64'' (35x109x118 mm)||Application||Matching for Type AF Cassette|
|Front Connector||LC/SC duplex|
|Material of Sleeve||Zirconia Ceramic|
|Insertion Loss||Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB|
|Return Loss||Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB|
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
