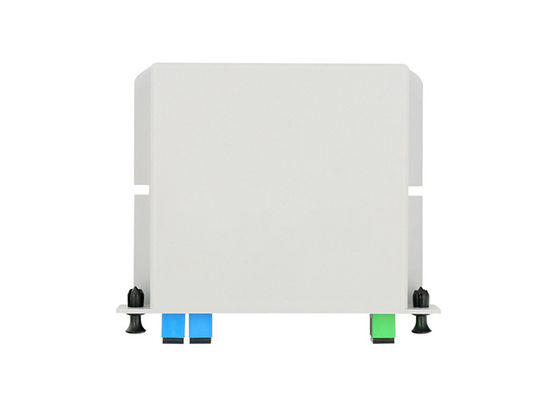

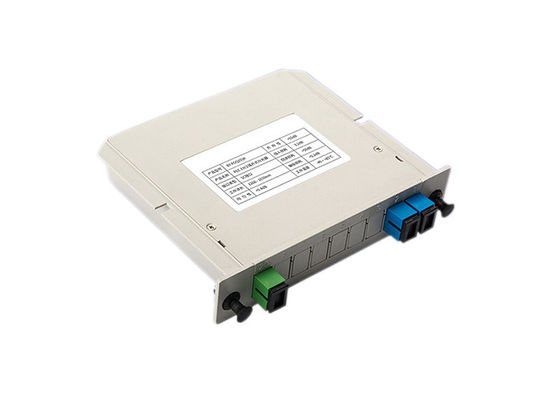

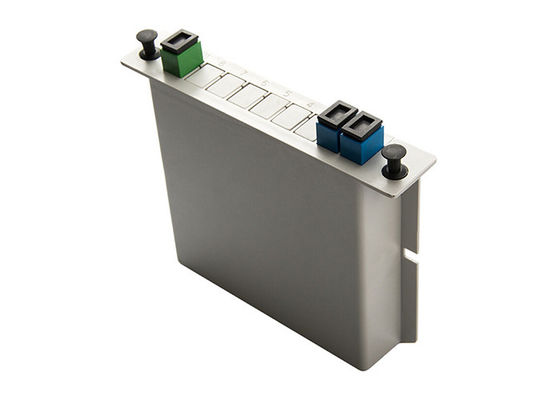

1x2 Plug-In Fiber Optic Splitter with SC Connector for Single Mode Applications

Brand Name:	New Light
Model Number:	Plug-in Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Plug-in Box Color:

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1x2 Plug In Fiber Optic Coupler Splitter / Fiber Optic Audio Splitter

Product Overview

This 1 in 2 out PLC Fiber Optic Splitter is a plug-in type PLC device with SC connector. PLC splitters are optical power equalization products based on quartz substrate material and planar optical waveguide technology, primarily used for optical signal coupling and distribution in passive optical network (PON) systems.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Plug-in type PLC Optical Splitter
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.5, ≤7.7, ≤11.0, ≤14.2, ≤17.5, ≤21.1
Uniformity	dB	≤0.4, ≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.3, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size	mm	130x100x25, 130x100x50, 130x100x102

* without connector

CAD Drawing

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags with carton boxes for external protection to ensure safe delivery and prevent damage during transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units as the cost and price will be higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing after receiving your quantity requirements. Large quantities receive very competitive prices.

Can you quote FOB price?

Yes, but due to small size and weight, most deliveries are by air (DHL, TNT, UPS, FEDEX). We recommend providing detailed specifications and quantity for freight-included pricing. EXW or CFR pricing is preferred. Contact us for shipping solutions.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops. We use imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock. We accommodate urgent orders.

What's your warranty?

Patch cords include 2-year warranty from delivery for non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

What's your packing?

We use international export packaging and can print your logo on packaging materials.

Can you do OEM/ODM?

Yes, as a manufacturer we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. For high-value products, sample charges apply but are refundable with order placement.

How can I order?

1. Contact us with product name, specifications, quantity, and delivery address for freight calculation
2. We provide best pricing and lead time based on your requirements
3. Upon acceptance, we issue Proforma Invoice with bank details
4. Production begins after payment receipt
5. We confirm delivery information and provide tracking number
6. We prioritize long-term cooperation relationships

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
