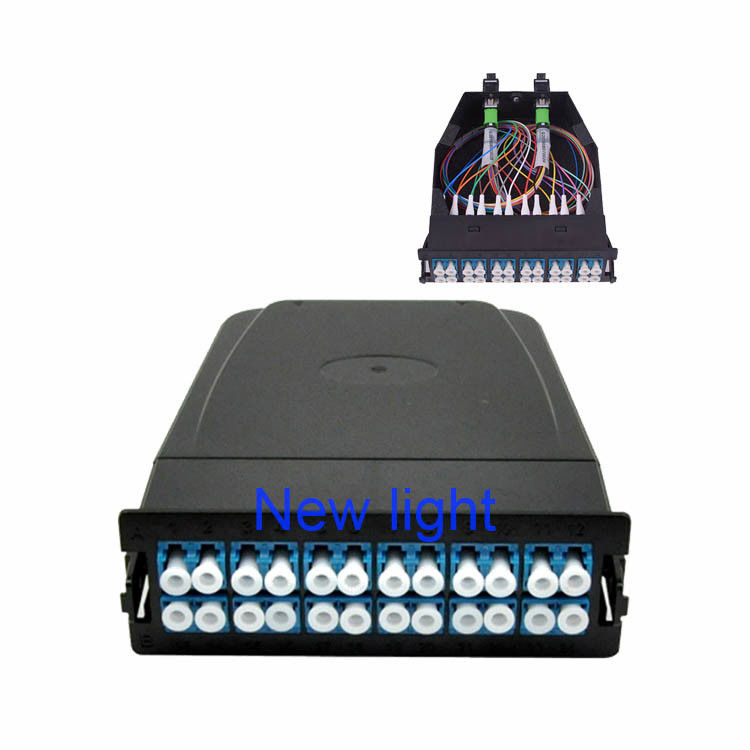

FTTX Optical Fiber MPO Cassette Module with 12 Fibers MPO-LC Connector and Corning Fiber Optic Cable

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Capacity:

SC Max 12core/LC Max 24core

Product Name:

Fiber High Density MTP-12 Cassettes

Color:

Magenta,Yellow/ Red/ Aqua

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

FTTX Optical Fiber MPO/MTP Terminal Box With Patch Panel, MPO-LC, 12 Fibers

Product Overview

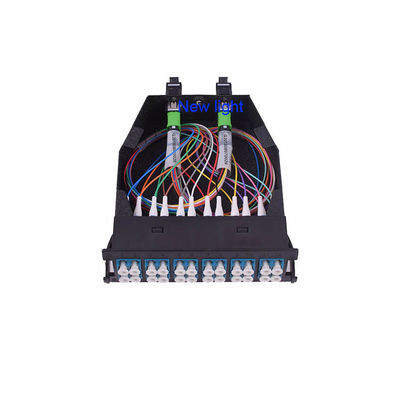

New Light MTP/MPO cassette with patch cord connector and Corning fiber optic cable provides secure transition between MPO and LC or SC discrete connectors. These cassettes interconnect MPO backbones with LC or SC patching for high-density data center infrastructure.

Key Applications

Fiber Optic Transmission Systems
CATV Networks
Local Area Networks
Testing/Measurement Instruments

Product Features

19-inch standard size (1U, 2U, or 4U available)
12, 24, 48, 96 port configurations
Compatible with SC, FC, ST, LC adapters
Smart design for cable protection and connection management
RoHS compliant
Full assembly or empty panel options
Black or white color options

Quality Advantages

UL certified for superior quality
Custom modifications available
OEM packaging and branding options

FHD High Density Series

Versatile solution in multiple sizes (1U/2U/4U) for building backbones, data centers and enterprise applications, supporting up to 96 LC fibers in 1U configuration.

Technical Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)
Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Learn More - Watch Product Video FTTX Optical Fiber MPO Cassette Module with 12 Fibers MPO-LC Connector and Corning Fiber Optic Cable 2

Polarity Illustration

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. Our solutions help manage and optimize network connectivity.

Contact Us: WhatsApp 008613534063703
