Single Mode Fiber Optic Splitter 1 In 8 Out with High Channel Counts and SC Connector

Brand Name:	New Light
Model Number:	Plug-in Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Plug-in Box Color:

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

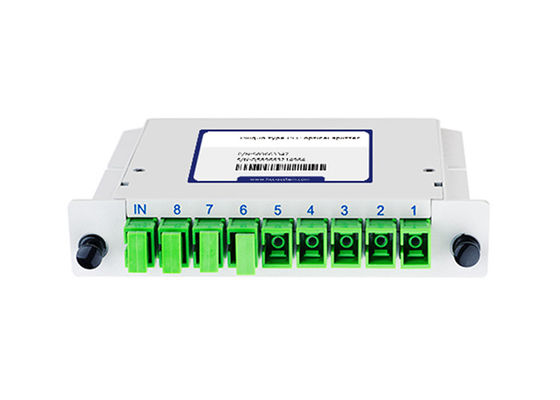

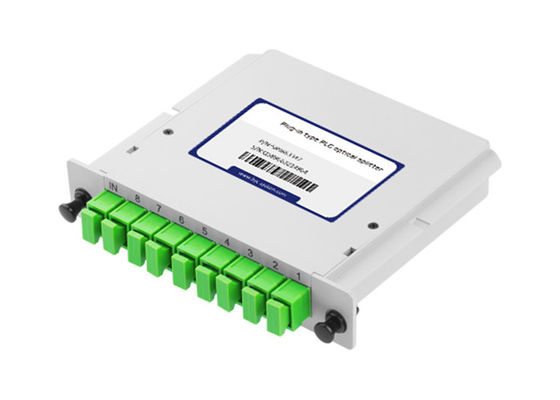

1x8 PLC Fiber Optic Splitter with SC Connector

The PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is primarily used for optical signal coupling and distribution in passive optical network (PON) systems, making it one of the most important passive components in optical networks.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Plug-in type PLC Optical Splitter
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.5, ≤7.7, ≤11.0, ≤14.2, ≤17.5, ≤21.1
Uniformity	dB	≤0.4, ≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.3, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size	mm	130x100x25, 130x100x50, 130x100x102

* without connector

CAD Drawing

The PLC optical splitter ABS box type is available in a variety of split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What is the price?

Pricing is based on quantity. We offer competitive pricing for larger orders.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops with imported equipment. All products are 100% tested before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty?

Patch cords come with a 2-year warranty for non-artificial damage from delivery date.

What is your packaging?

We use international export packaging and can print customer logos upon request.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples are available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
