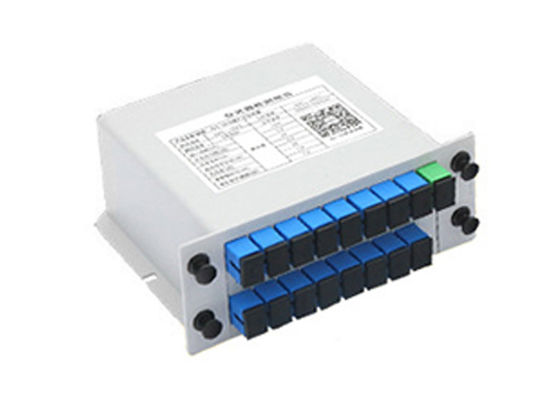

1x16 Split Ratio PLC Optical Splitter with SC Connector and Low Insertion Loss for Fiber Optic Networks

Brand Name:	New Light
Model Number:	Plug-in Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Plug-in Box Color:

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

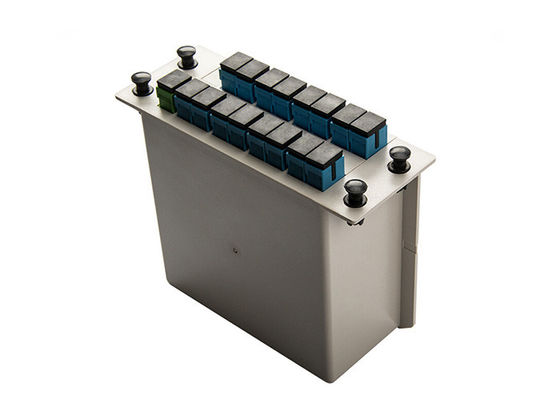

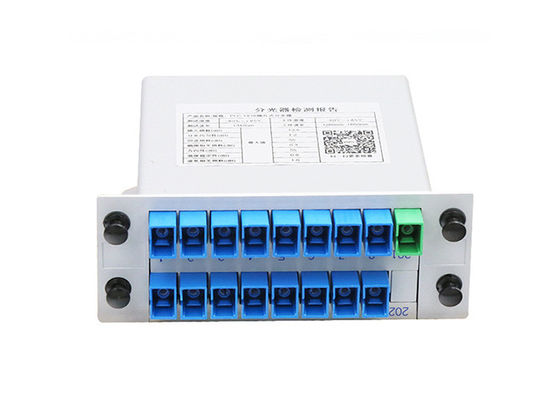

1 In 16 Out PLC Optical Splitter with SC Connector

The 1x16 PLC Fiber Optic Splitter is a plug-in type optical power distribution device featuring SC connectors. This advanced splitter utilizes planar lightwave circuit technology on quartz substrate for reliable signal coupling and distribution in passive optical networks.

Product Description

PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is primarily used for optical signal coupling and distribution in passive optical network (PON) systems, making it one of the most important passive components in modern optical networks.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Specifications
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.5, ≤7.7, ≤11.0, ≤14.2, ≤17.5, ≤21.1
Uniformity	dB	≤0.4, ≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.3, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size	mm	130x100x25, 130x100x50, 130x100x102

* Specifications provided without connector

CAD Drawing

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to specific customer requirements.

Packaging

Products are securely packaged using OPP bags and outer carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single units as the cost per unit will be higher. Larger quantities receive more competitive pricing.

Q: What's the price?

A: Pricing depends on quantity. After you provide your required quantity, we will offer our best pricing. Large quantities receive very competitive prices.

Q: Can you quote FOB price?

A: Yes, but due to the small size and weight of these products, most shipments are delivered by air (DHL, TNT, UPS, FEDEX, etc.). For large quantities with multiple cartons, we can provide sea freight options. EXW price or CFR price are typically better options.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control systems. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We operate three factories in China specializing in fiber optic cables, patch cords, PLC splitters, ODF, adaptors, and attenuators. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we can accommodate urgent orders.

Q: What's your warranty?

A: Patch cords come with a 2-year warranty from delivery date for non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with freight prepaid by the customer. For higher-value products, sample charges and freight are required upfront, with sample charges refunded upon order placement.

Q: How can I order?

Contact us with product name, detailed specifications, quantity, and delivery address for freight calculation
We'll provide pricing and lead time based on your requirements
Upon acceptance, we'll issue a Proforma Invoice with bank details
Production begins after payment receipt
We confirm shipping information and provide tracking after delivery
We prioritize long-term cooperation and customer satisfaction

Q: What are your payment terms?

A: We accept T/T, Western Union, PayPal, and MoneyGram. For large amounts, we can arrange 50% deposit with balance due before delivery.
