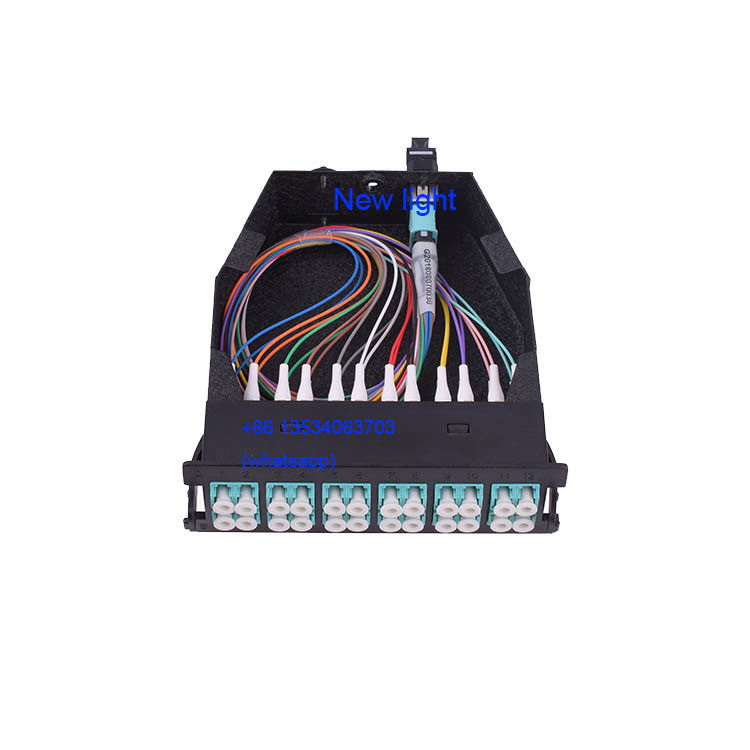

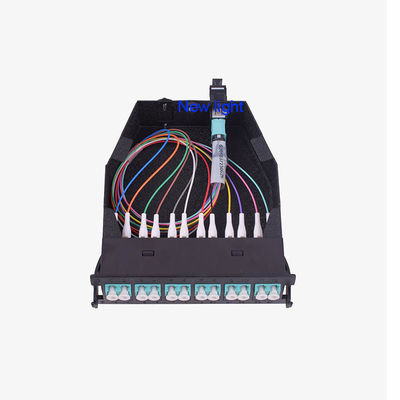

FTTX Optical Fiber MPO/MTP Cassette 1RU Terminal Box with Corning ClearCurve® Fiber and 96 LC Fibers Patch Panel

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Capacity:

SC Max 12core/LC Max 24core

Product Name:

Fiber High Density MTP-12 Cassettes

Color:

Magenta,Yellow/ Red/ Aqua

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

FTTX Optical Fiber MPO/MTP Cassette, 1RU Terminal Box, Patch Panel

New Light FTTX Optical Fiber MPO/MTP Cassette, 1RU Terminal Box, Patch Panel provides secure transition between MPO and LC or SC discrete connectors. These units are designed to interconnect MPO backbones with LC or SC patching in data center and enterprise applications.

Key Features

Modular system for rapid deployment of high-density data center infrastructure
Factory-controlled and tested MPO-LC fan-outs for optimal optical performance
Available in low loss MPO Elite and LC/SC Premium versions
19-inch standard size (1U, 2U, 4U available)
12, 24, 48, 96 port configurations available
Compatible with SC, FC, ST, LC adapters (duplex and simplex)
Smart design for secure cable termination and protection
UL certified for quality assurance
Custom modifications and OEM packaging available

Applications

Fiber Optic Transmission Systems
CATV Networks
Local Area Networks
Testing/Measurement Instruments

FHD High Density Series offers versatile solutions in multiple sizes (1U/2U/4U) for building backbones, data centers and enterprise applications, supporting up to 96 LC fibers in 1U configuration.

Product Specifications

Fiber Count	12 / 24
Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex
Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down
Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB
Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Watch Product Video FTTX Optical Fiber MPO/MTP Cassette 1RU Terminal Box with Corning ClearCurve® Fiber and 96 LC Fibers Patch Panel 2

Polarity Management

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. Our solutions help you manage and optimize your network connectivity with intelligent polarity management.

Contact Us: WhatsApp 008613534063703
