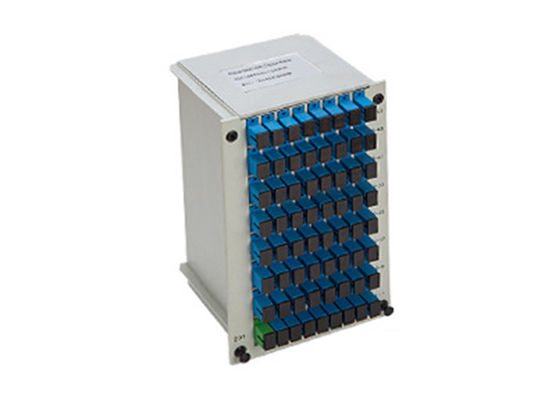

1x64 PLC Fiber Optic Splitter Plug-in Type with SC Connector for FTTX Systems

Brand Name:	New Light
Model Number:	Plug-in Box
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Brand Name:

New Light

Connector Type:

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Plug-in Box Color:

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

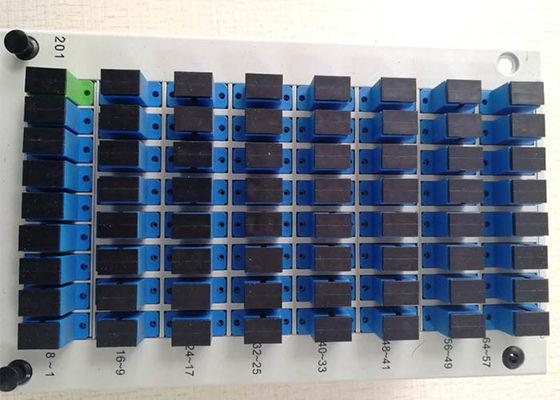

1x64 PLC Fiber Optic Splitter with SC Connector

This 1 in 64 out PLC Fiber Optic Splitter is a plug-in type planar lightwave circuit device with SC connectors, designed for efficient optical signal distribution in network systems.

Product Overview

PLC splitters are optical power equalization products based on quartz substrate material and planar optical waveguide technology. They are primarily used for optical signal coupling and distribution in passive optical network (PON) systems, making them one of the most important passive components in optical networks.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Plug-in Type PLC Optical Splitter
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Channel Type	/	1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Insertion Loss	dB	≤4.5, ≤7.7, ≤11.0, ≤14.2, ≤17.5, ≤21.1
Uniformity	dB	≤0.4, ≤0.6, ≤0.8, ≤1.2, ≤1.5, ≤2.0
PDL	dB	≤0.2, ≤0.2, ≤0.3, ≤0.3, ≤0.3, ≤0.35
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
Package Size	mm	130x100x25, 130x100x50, 130x100x102

* Specifications provided without connector

CAD Drawing

The PLC optical splitter ABS box type is available in various split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx) due to product size. EXW or CFR pricing is preferred. Contact us for freight solutions based on your specifications and quantity.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords include a 2-year warranty for non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

What's your packing?

We use international export packaging and can print customer logos upon request.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. For high-value products, sample charges apply but are refundable with order placement.

How can I order?

Contact us with product specifications and quantity
We provide pricing and lead time
Receive proforma invoice upon acceptance
Production begins after payment
We confirm shipping details and provide tracking
We support long-term cooperation requirements

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
