MPO Cassette Module

Pre-terminated High-density MPO Cassette Module with Low Insertion Loss for Fiber Optic Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

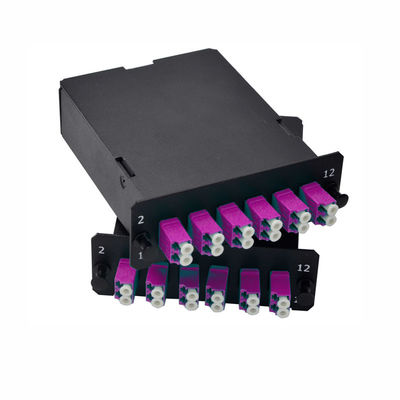

Pre-terminated High-density MPO Cassette Module with Low Insertion Loss for Fiber Optic Transmission

Brand Name:	New light
Model Number:	6/12 port MPO
MOQ:	1~10000
Price:	5~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Connector:

MPO/MTP

Connector Type:

MPO/LC/SC/FC/ST/MU,MPO,MTP,MPO-MPO/MPO-LC

Insertion Loss:

Standard Loss And Elite

Type:

Single-mode/Multi-mode

Warranty:

2 Years

Material:

Plastics And Aluminum Alloy

Wavelength:

850nm/1310nm/1550nm

Product Name:

Fiber High Density MTP-12 Cassettes

Color:

Magenta,Yellow/ Red/ Aqua

Supply Ability:

10000 per day

Highlight:

mtp casstte module

mpo cassette patch panel

Product Description

Optical Fiber MPO Cassette Module Terminal Box

FTTX Optical Fiber MPO/MTP Terminal Box for fiber optic transmission systems

New Light FTTX Optical Fiber MPO/MTP Cassette, 1RU Terminal Box, and Patch Panel provide secure transition between MPO and LC or SC discrete connectors. These units interconnect MPO backbones with LC or SC patching, featuring a modular system for rapid deployment of high-density data center infrastructure with improved troubleshooting and reconfiguration capabilities.

Applications

Fiber Optic Transmission System
CATV Networks
Local Area Network
Testing/Measurement Instruments

Product Features

19-inch standard size, compatible with 19-inch racks (23-inch available on request)
Available in 1U, 2U, or 4U configurations
12, 24, 48, or 96 port options
Compatible with SC, FC, ST, LC adapters (duplex and simplex)
Smart design for secure cable termination and adapter installation
Provides termination, protection, connection, and management of fiber optic cables
RoHS compliant
Full assembly (loaded) or empty panel options
Available in black or white color

Quality Advantages

UL certified for superior quality standards
Independent research and development with custom modification capabilities
OEM packaging available with custom logo printing

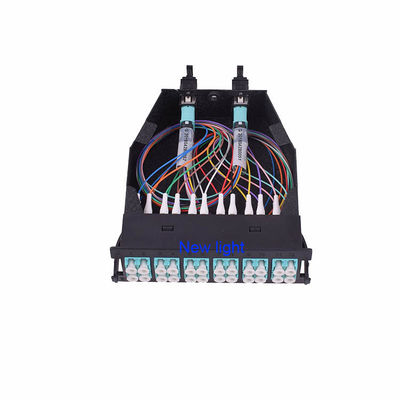

New Light MTP/MPO cassettes are manufactured with high-quality Corning fiber optic cable and available in various fiber modes: Single-mode (9/125μm), Multimode OM1 (62.5/125μm), Multimode OM3 (50/125μm), and others. These cassettes support multiple fiber optic connector types including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST connectors, with both Male and Female MTP/MPO connector options.

FHD High Density Series

Versatile solution available in multiple sizes (1U/2U/4U) for building backbones, data centers, and enterprise applications, supporting up to 96 LC fibers in 1U configuration.

Series Features

High-density modular design for efficient space utilization
Pre-terminated cassettes for improved reliability and quick deployment
High-performance connectors for low loss optical budget
Plug-N-play modules for fast installation of multiple fiber links
Wide range of performance and polarity configurations
Corning fiber compliant with Telcordia, EIA/TIA and IEC standards

Learn more - Watch product video Pre-terminated High-density MPO Cassette Module with Low Insertion Loss for Fiber Optic Transmission 1

WhatsApp: 008613534063703

Technical Specifications

Fiber Count	12 / 24	Fiber Mode	OM3 50/125 μm
Front Connector Type	12 LC UPC Duplex	Rear Connector Type	1x MPO UPC Male (pinned)
MPO Adapter	Key up to Key down	Glass Fiber	Corning ClearCurve®
Insertion Loss	MPO≤0.35 dB, LC≤0.2 dB	Return Loss	MPO≥20 dB, LC≥30 dB
Operating Temperature	0°C to 70°C	Storage Temperature	-40°C to 75°C
Dimensions (HxWxD)	1.38''x4.29''x4.64'' (35x109x118 mm)	Application	Matching for Type AF Cassette

Performance Properties

Front Connector	LC/SC duplex
Material of Sleeve	Zirconia Ceramic
Insertion Loss	Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB
Return Loss	Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB

Polarity Illustration

In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides intelligent solutions to help manage and optimize network connectivity.
