Fiber Optic Patch Panel
>
19 Rack Mount Fiber Optic Patch Panel with MPO/MTP Cable and Slide-Out Drawer Enclosure

19 Rack Mount Fiber Optic Patch Panel with MPO/MTP Cable and Slide-Out Drawer Enclosure

Brand Name: New light
Model Number: 12/ 24 /48 core ptach panel
MOQ: 1~10000
Price: 10~100
Packaging Details: opp bag+Carton box
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Place of Origin:
China
Certification:
ROHS ;ISO9001
Material:
SPECC
Aplication:
Data Centers,pre-terminated Installations
Front Panel:
LC , SC , ST , FC , E2000
Interface:
Powder Coated
Product Name:
24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel
Tray:
12/24/48/72/96 Fiber
Weight:
6kg
Material:
Phosphor Bronze
Color:
White
Storage Temperature:
-45°C~+60°C
Product Type:
Slide-out Drawer Enclosure With Splice Trays
Dimensions:
1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm
Adapter Type:
ST
Supply Ability:
10000 per day
Highlight:

fiber optic accessories

,

fiber optic termination panel

Product Description
19 Rack Mount Fiber Optic Patch Panel With MPO/MTP Cable And Adapters
High Density Patch Panels are the most versatile and capable fiber panels offered by OptoSpan. Each High Density Patch Panel is fully compatible with industry standard LGX fiber cassettes and fiber adapter panels, allowing for easy customization to meet any networking requirements.

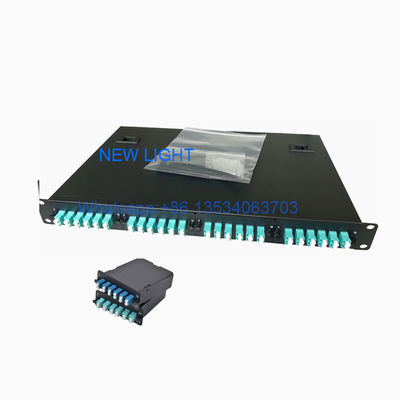

19 Rack Mount Fiber Optic Patch Panel with MPO/MTP Cable and Slide-Out Drawer Enclosure 0
High Density patch panels are available in 1U, 2U, and 4U heights, and are capable of providing up to 72, 144 or 288 front fiber connections using Low-Loss LC connectors. Alternative front connections are available, including SC or MPO solutions along with support for Single-mode (OS2) or Multimode (OM4) fiber specifications.
High Density patch panels internally host fiber splices, and include a splicing kit complete with fiber pigtails and splicing trays. Additional features include front sliding and locking tray, removable top case, adjustable mounting brackets, a hinged rear and front panel for instant access to the internal fibers.
Available models support 12 core fiber, 24 core fiber, 36 core fiber, 48 core fiber, 72 core fiber, 96 core fiber, and 144 core fiber applications. Compatible with various adapter interfaces including SC, ST, FC, LC, MTRJ, and e2000. Related fiber accessories and pigtails are optional.

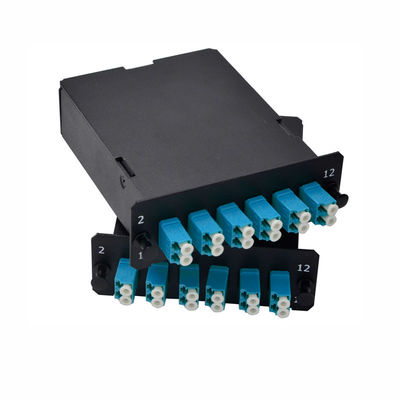

19 Rack Mount Fiber Optic Patch Panel with MPO/MTP Cable and Slide-Out Drawer Enclosure 1
Applications
  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN networks
  • CATV systems
Key Features
  • Used for branch connection of optical cable termination
  • 19" Standard Structure, Rack mounting
  • Available for installation of adaptors
  • Drawer Structure, Easy for Operation
  • Compact design for space saving
  • Easy for management and operation
  • Standard size, light weight and reasonable structure
Mechanical and Environmental Characteristics
Parameter Specification
Operating temperature -25℃ to +40℃
Storage temperature -25℃ to +55℃
Relative humidity ≤85% (+30℃)
Air pressure 70Kpa to 106Kpa
Color Black
Dimensions
Model Fiber Quantity Height Dimension (LxWxH)
Rack Mount 12 / 24 / 48 / 96 core 1U 430 * 354.1 * 44mm
