Standard Size 24 Fiber Optic Patch Panel with Slide-Out Drawer Enclosure for Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Standard Size 24 Fiber Optic Patch Panel with Slide-Out Drawer Enclosure for Data Centers

Brand Name:	New light
Model Number:	12/ 24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Front Panel:

LC , SC , ST , FC , E2000

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Color:

White

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

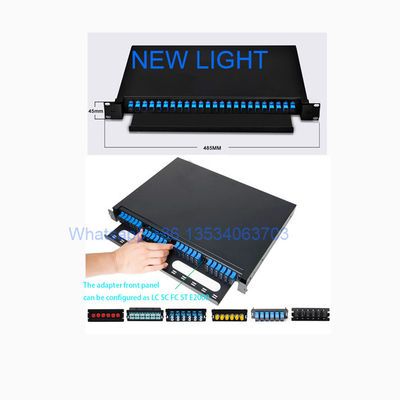

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Adapter Type:

Port:

12/24/36/48/72/96/144/192/288/386

Supply Ability:

10000 per day

Highlight:

fiber optic parts and accessories

fiber optic accessories

Product Description

1U 2U 3U Black Fiber Optic Patch Panel Standard Size LC/SC/ST/FC Port

Product Overview

1U 2U 3U black standard size LC/SC/ST/FC port fiber optic panel designed for efficient fiber management and cross-connection in telecommunications infrastructure.

Key Features

Standard size with lightweight, rational structure design
Interchangeable internal splice tray
Compatible with 19" and 23" standard distribution frames
Suitable for both ribbon and single fiber applications

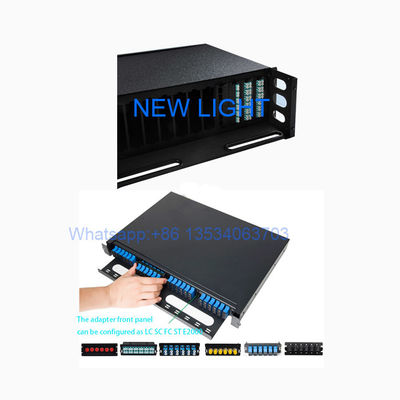

Various panel plates to accommodate different adapter interfaces
Front marking for easy identification and operation
Available in 24C, 36C, 48C, 72C configurations with optional fiber optic pigtails and adapters
Simplified management and operation

Product Description

These fiber distribution panels, including MPO/MTP cables and adapters, facilitate easy termination of fiber optic cables and provide access to individual fibers for cross-connection. The metal enclosure houses adapter panels and fiber splice trays, allowing fibers to be fused with pigtails that connect to fixed internal adapter ports.

Internal ports remain fixed for permanent connections, while external ports accommodate frequently connected fiber patch cables for flexible device interconnection. The panel features two compartments: one for bulkhead receptacles/adapters and another for splice tray and excess fiber storage.

Available models include slide-out rack mount enclosures with various adapter configurations (LC multimode duplex, ST singlemode) supporting 12, 24, 36, 48, 72, 96, and 144 core fiber applications. Compatible with SC, ST, FC, LC, MTRJ, E2000 interfaces with optional fiber accessories and pigtails.

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Mechanical and Environmental Specifications

Parameter	Specification
Operating Temperature	-25℃ to +40℃
Storage Temperature	-25℃ to +55℃
Relative Humidity	≤85% (+30℃)
Air Pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimensions (LWH)
Rack Mount	12/24/48/96 core	1U	430354.144mm

Polarity Methods

Proper fiber link polarity ensures transmit (Tx) and receive (Rx) signals are correctly matched across connections. Three industry-standard polarity methods are available for multi-fiber components:

Method A

Uses Type A straight-through MPO trunk cables with key up/key down connectors. Position 1 fiber arrives at Position 1. Requires transceiver-receiver flip in patch cord for duplex applications.

Method B

Uses key up connectors on both ends, flipping positions (Position 1 to 12, Position 2 to 11). Employs straight A-B patch cords for duplex applications.

Method C

Uses key up/key down connectors with internal pair flipping (Position 1 to 2, Position 2 to 1). Suitable for duplex but not recommended for parallel 8-fiber 40/100 Gig applications.

Professional testing equipment like Fluke Networks' MultiFiber™ Pro ensures correct polarity deployment for patch cords, permanent links, and channels.
