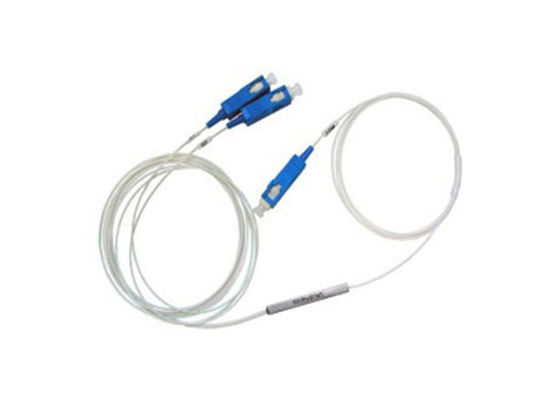

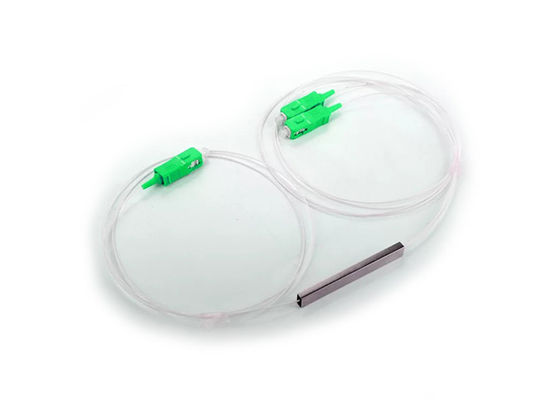

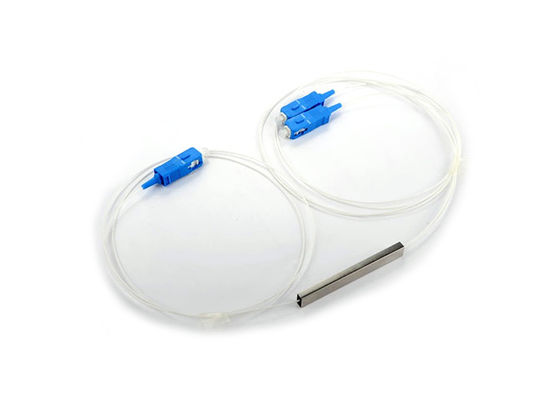

1x2 Mini Type PLC Fiber Optic Splitter with Stainless Steel Tube for Single Mode Applications

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1x2 Mini Type PLC

Connector Type:

SC/PC, SC/APC

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Payment Term:

T/T , 30% Deposit In Advance

Cable Length:

Cable Diameter:

250um Or 900um

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

1x2 Fiber Optic Splitter - Mini Type PLC Optical Splitter

This 1x2 mini type PLC splitter features one fiber input and two fiber outputs, constructed with high-quality stainless steel tubing. The compact design offers reduced size and weight while providing reliable optical power distribution across a wide wavelength range.

Product Overview

The mini PLC splitter is a planar waveguide integrated optical device that maintains optical power distribution across wavelengths from 1260nm to 1650nm. This wide range covers the EPON technology wavelengths of 1310nm, 1490nm, and 1550nm, making it ideal for FTTP fiber network systems and broadband passive optical distribution applications.

Applications

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss and low PDL
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	Specification
Operating Wavelength	nm	1260~1650
Fiber Type	/	G652D/G657A1/G657A2
Tube Type	um	250um Fiber, 600um or 900um loose tube
Insertion Loss (1x2)	dB	≤4.0
Uniformity (1x2)	dB	≤0.4
PDL (1x2)	dB	≤0.2
TDL	dB	≤0.5
Return Loss	dB	≥55
Directionality	dB	≥55
Working Power	mW	≤500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

* Specifications provided without connector

CAD Drawing & Dimensions

Tube size: 40x4x4 mm

Our PLC optical splitter MINI modules are available in various split modes and package types, with customization options available to meet specific customer requirements.

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though we recommend larger quantities for better pricing as single-unit orders incur higher costs.

What are your pricing terms?

Pricing varies by quantity. We provide competitive quotes based on your order volume, with EXW or CFR pricing preferred for optimal freight solutions.

How is your product quality?

We manufacture according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What is your lead time?

With three factories in China, we maintain short lead times - typically 2-3 working days for 5,000 pieces of fiber optic patch cords. Regular products are kept in stock for urgent orders.

What warranty do you provide?

We offer a 2-year warranty for patch cords covering non-artificial damage. For artificial damage, we provide free repairs with freight costs covered by the customer.

Do you offer OEM/ODM services?

Yes, we support OEM/ODM manufacturing and can sign confidentiality agreements to protect your designs.

Can I request samples?

Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid. For higher-value products, sample charges apply but are refundable with subsequent orders.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with balance payment before delivery.
