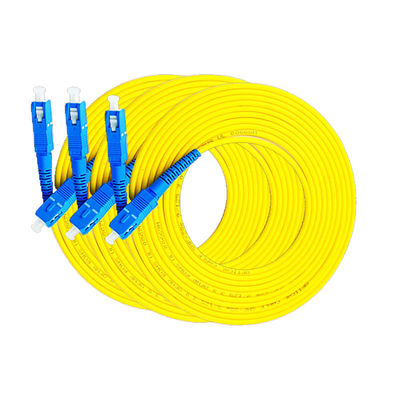

Armoured Optical Fiber Patch Cord SC-SC Simplex Yellow Color for High-Speed Data Transmission

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Name:

LC-LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

LC-LC

Color:

Yellow

Fiber Type:

Simplex And Duplex

Application:

FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Name:

LC-LC Fiber Patch Cord

Diameter:

2.0mm

Model:

Single

Connector:

LC-LC

Color:

Yellow

Fiber Type:

Simplex And Duplex

Application:

FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

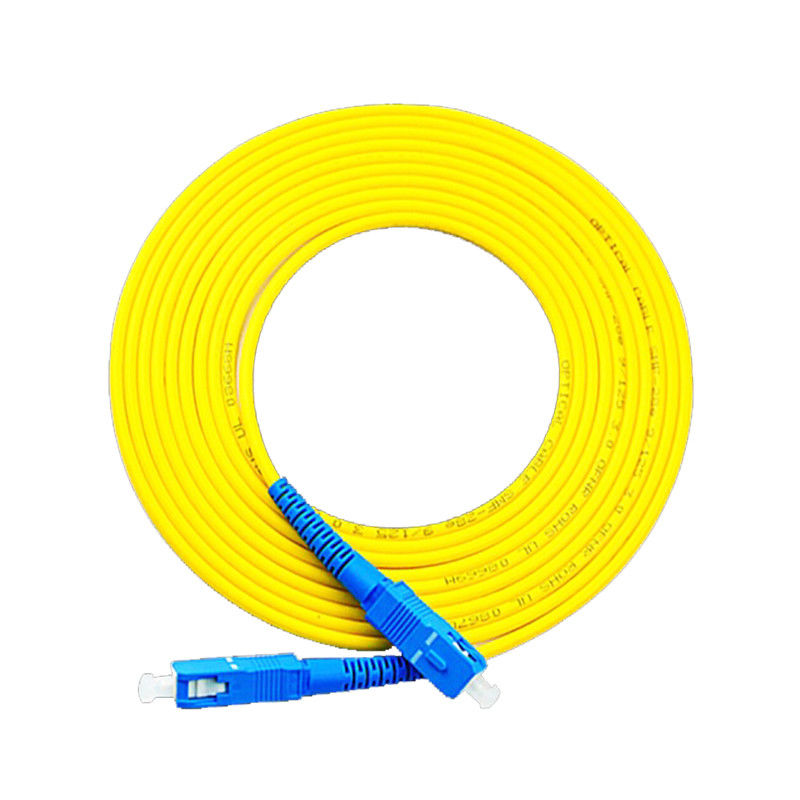

Armoured Optical Fiber Patch Cord SC-SC Simplex Yellow

High-quality armoured fiber optic patch cord available in singlemode and multimode versions, providing cost-effective high bandwidth and transmission rates over short distances.

Product Overview

This durable fiber optic patch cable is engineered for Ethernet applications with exceptional resistance to pulls, strains, and impacts during installation. Each connection features zirconia ceramic ferrules with pre-polished PC, UPC, or APC profiles for optimal performance.

Technical Specifications

Parameter	Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish	UPC, APC, PC
Cable Type	Simplex, Duplex Straight, Duplex Reverse
Fiber	SM (G652), 62.5/125μm, 50/125μm, OM2, OM3, SM (G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom lengths in meters

Detailed Specifications

Fiber Type	Single Mode Options	Multimode Options
Fiber Types	9/125-G652D, 9/125-G655, 9/125-G657A/G657A2, 9/125-G657B3	50/125-OM2, 62.5/125-OM1, 50/125-OM3, 50/125-OM4, 50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo, Fujikura
Connector Options	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord Type	Simplex, Duplex
Cable Diameter	0.9mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, 4.1mm
Cable Jacket	PVC, OFNR, LSZH, OFNP
Length Options	0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m (Custom lengths available)

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
