Duplex Multimode Fiber Optic Patch Cord with Customizable Length for High-Speed Data Transmission

Brand Name: NewLight
Model Number: NL001
MOQ: 1~100000
Price: 0.1~100
Packaging Details: 1 pcs per pack
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO ,ROSH
Fiber Type:
Simplex And Duplex
Application:
FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Length:
Any Length Is Customizable
Connector Type:
SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Type:
Single Mode/Multi-mode
Fiber Count:
Simplex Or Duplex
Material:
PVC/LSZH
Color:
Orange Or Others,aqua Or Cusomized
Repeatability:
≤ 0.2 DB,<=0.3dB
Polish:
PC/UPC/APC
Fiber Type:
Simplex And Duplex
Application:
FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Length:
Any Length Is Customizable
Connector Type:
SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Type:
Single Mode/Multi-mode
Fiber Count:
Simplex Or Duplex
Material:
PVC/LSZH
Color:
Orange Or Others,aqua Or Cusomized
Repeatability:
≤ 0.2 DB,<=0.3dB
Polish:
PC/UPC/APC
Supply Ability:
1000000
Highlight:

single mode fiber optic cable

,

duplex fiber patch cord

Product Description

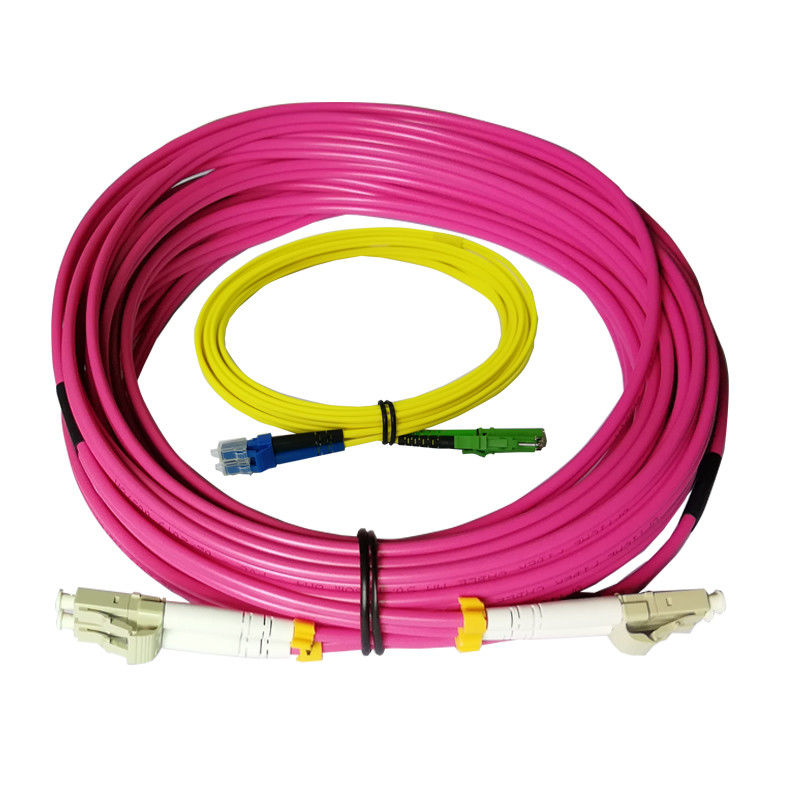

LC-LC Multimode Fiber Optic Patch Cables Duplex
Our LC-LC multimode fiber optic patch cables provide a cost-effective solution for high-bandwidth data transmission over short distances. These duplex patch cords are engineered for Ethernet applications and feature exceptional durability with resistance to pulls, strains, and impacts during installation.
Product Overview
Optical fiber patch cords (jumpers) consist of optical fiber lengths with connectors at both ends to establish beam paths. Our patch cords are assembled with various connector types including FC, SC, ST, LC, MU, and MTRJ, with three polished end-face options: PC, UPC, and APC. Advanced manufacturing techniques ensure consistent high quality across all production batches.
Duplex Multimode Fiber Optic Patch Cord with Customizable Length for High-Speed Data Transmission 0
Ordering Options
Available in both singlemode and multimode versions, our fiber optic patch cords feature zirconia ceramic ferrules with pre-polished PC, UPC, or APC profiles and convex spherical ends. These end-face configurations enable faster polishing while minimizing back reflection and optical loss, ensuring maximum repeatability.
Parameter Options
Connector Type SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish UPC, APC, PC
Cable Type Simplex, Duplex Straight, Duplex Reverse
Fiber SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket Riser, Plenum, LSZH
Cable Diameter 3.0mm, 2.0mm, 0.9mm, etc.
Cable Length Custom lengths in meters
Technical Specifications
Fiber Type
Single mode: 9/125-G652D, 9/125-G655, 9/125-G657A, G657A2, 9/125-G657B3
Multimode: 50/125-OM2, 62.5/125-OM1, 50/125-OM3, 50/125-OM4, 50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura
Connector Options
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord Type
Simplex, Duplex
Cable Diameter
0.9mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, 4.1mm
Cable Jacket
PVC, OFNR, LSZH, OFNP
Length Options
0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m + Custom lengths
Duplex Multimode Fiber Optic Patch Cord with Customizable Length for High-Speed Data Transmission 1
Key Features
  • Excellent durability and exchangeability
  • High temperature stability
  • Low insertion loss and back reflection loss
  • Superior quality standard PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
Tags:
