Duplex Multimode Fiber Optic Patch Cord with Customizable Length for High-Speed Data Transmission

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Application:

FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Fiber Count:

Simplex Or Duplex

Material:

PVC/LSZH

Color:

Orange Or Others,aqua Or Cusomized

Repeatability:

≤ 0.2 DB,<=0.3dB

Polish:

PC/UPC/APC

Real Factory:

Application:

FTTH FTTB FTTX Network,FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Fiber Count:

Simplex Or Duplex

Material:

PVC/LSZH

Color:

Orange Or Others,aqua Or Cusomized

Repeatability:

≤ 0.2 DB,<=0.3dB

Polish:

PC/UPC/APC

Real Factory:

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

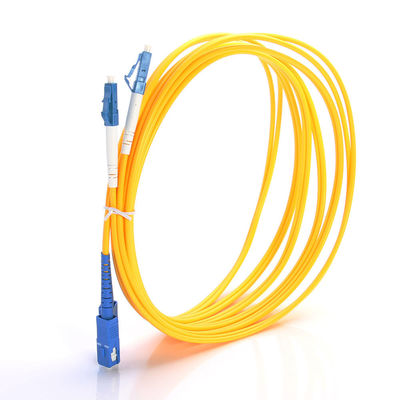

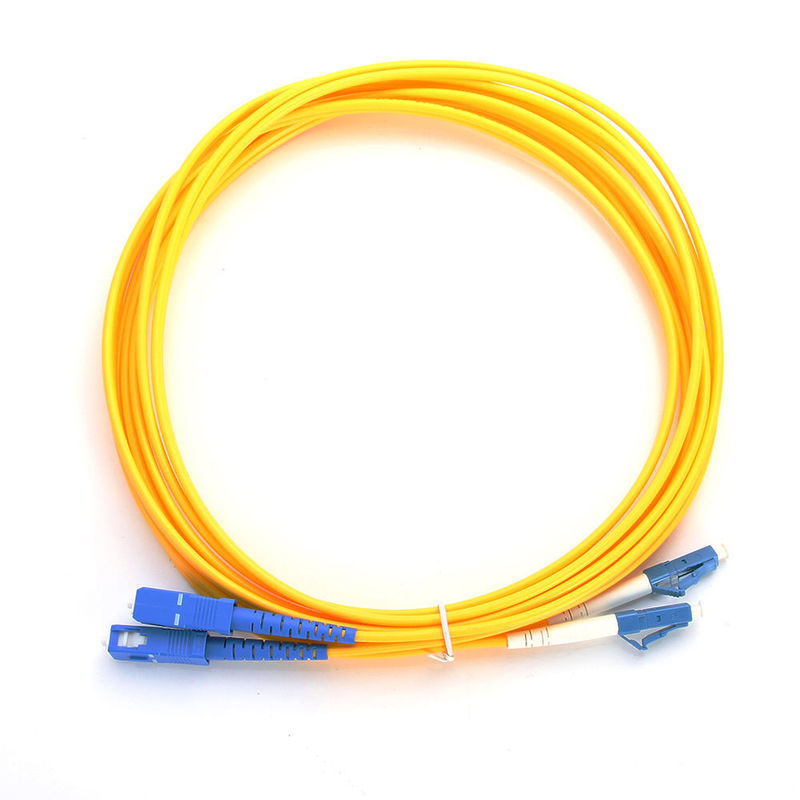

Duplex Fiber Optic Patch Cables

High-performance duplex fiber optic patch cables available in SC to LC multimode configurations, providing reliable connectivity solutions for ethernet applications.

Product Overview

These duplex fiber optic patch cords are available in both singlemode and multimode versions, offering a cost-effective solution for high bandwidth transmission over short distances. Engineered with superior durability, each connection is resistant to pulls, strains, and impacts during installation.

Our optical fiber patch cords feature zirconia ceramic ferrules with pre-polished PC, UPC, or APC profiles and convex spherical ends, ensuring faster polishing, low back reflection, minimal optical loss, and maximum repeatability.

Configuration Options

Parameter	Available Options
Connector Type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc.
Polish Type	UPC, APC, PC
Cable Type	Simplex, Duplex Straight, Duplex Reverse
Fiber Type	SM (G652), 62.5/125μm, 50/125μm, OM2, OM3, SM (G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc.
Cable Length	Custom lengths in meters

Technical Specifications

Fiber Type	Single Mode Options	Multimode Options
Fiber Types	9/125-G652D, 9/125-G655, 9/125-G657A/G657A2, 9/125-G657B3	50/125-OM2, 62.5/125-OM1, 50/125-OM3, 50/125-OM4, 50/125-OM5
Fiber Brands	YOFC, Corning, Sumitomo, Fujikura
Connectors	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord Type	Simplex, Duplex
Cable Diameter	0.9mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, 4.1mm
Cable Jacket	PVC, OFNR, LSZH, OFNP
Length (Meters)	0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m... Customized

Key Features

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
