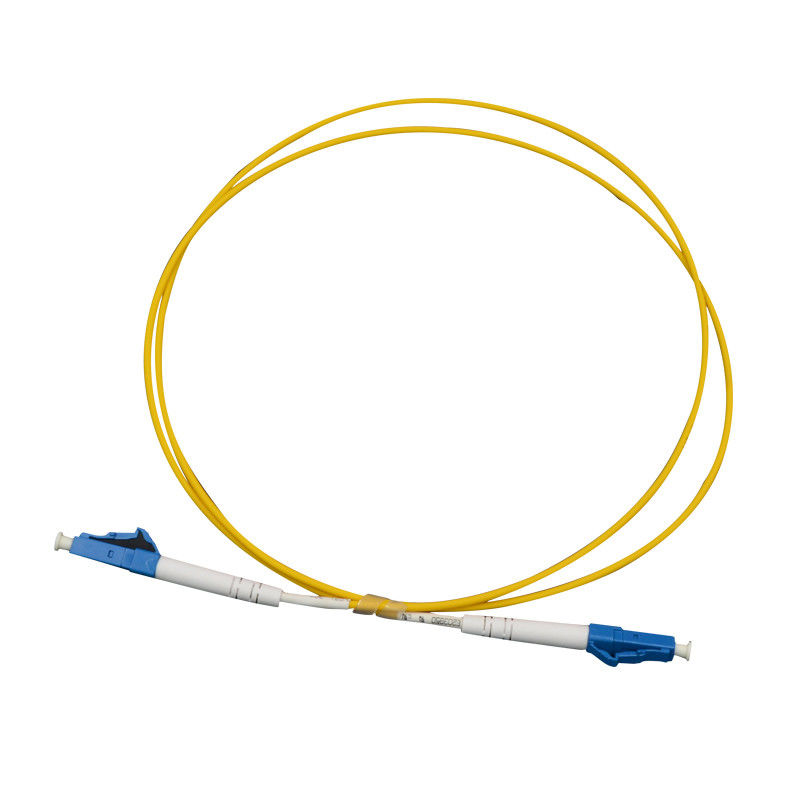

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable
Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Large Image :  Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE,ISO,RoHS
Model Number: LC-LC
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-7 working days (according to your quantity )
Payment Terms: T/T, Western Union, MoneyGram,paypal
Supply Ability: 12000pcs per day

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Description
Product Name: Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable Connector Type: LC / LC
Cable Material: LSZH Fiber Type: G657A2
Mode Type: SM Core Type: Simplex
Cable Diameter: 3.0 Mm Diameter Cable Length: Can Be Customized
Insertion Loss: ≤0.2dB Packing: Opp Bag With Carton Box
OEM/ODM: Acceptable
High Light:

single mode fiber optic cable

,

duplex fiber patch cord

Optical Fiber Patch Cord Product Name:

simplex 9/125um SM 1310 wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

 Optical Fiber Patch Cord Description :

LC - LC simplex Fiber patch cord is combined by two LC connectors with fiber optic cable . each side have one LC connector  .



The cable diameter is 3.0mm , it can be 2.0mm according to your requirements . single mode cable is yellow color normal . But if the quantity can be over 1000 meter , the color of cable can be customized according to your requirements .



We can provide all type of  fiber patch cord and pigtails , including single-mode, multimode (multi mode include 62.5/125 , 50/125um OM2,50/125  OM3  , 50/125 OM4 , 50/125 OM5 types ) . Also the cable can be simplex fiber, duplex ,4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on.


Optical Fiber Patch Cord Key Features

  • Low insertion loss and back reflection loss
  • Good exchangeability
  • Good Durability
  • High temperature stability
  • Compliant to IEC, TIA/EIA, NTT and JIS specifications



Optical Fiber Patch Cord Specifications

Specification Unit FC, SC, LC/Armored Cables ST, MU MT-RJ, MPO E2000
Single-mode Multi-mode Single-mode Multi-mode Single-mode Multi-mode Single-mode
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Wavelength nm 850,1310 850,1310 850,1310 850,1310
Interchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

 ​
Optical Fiber Patch CordApplications

  • CATV;
  • Active device termination;
  • Telecommunication networks;
  • Metro;
  • Local Area Networks;
  • Data processing networks;
  • Test equipment;
  • Premise installation;
  • Wide Area Networks


Optical Fiber Patch Cord Connector type :

connoctor type SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA....
Cables PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored
Color yellow,gray,sky bule ,orange,white,bla


Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable 0

FQA :



1. Q : Are you manufacturer ?

A: yes, we are manufacturer in Shenzhen,China



2. Q : What's your MOQ ?

A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



3. Q : What's the price ?

A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



4. Q: Can you quote FOB price ?

A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



EXW price or CFR price will be better . You can contact us for more solution if you need .



5. Q: How is your quality ?

A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



All the products are 100% test before delivery .



6. Q : Whats your lead time ?

A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



7. Q : Whats your warranty ?

A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



8. Q : Whats your packing ?

A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



9. Q: Can you do OEM/ODM ?

A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



10. Q: Can I have a sample ?

A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



11. Q: How can I order ?

A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

3. When you accept the quotation , we will make Profoma Invoice with our bank account .

4. We will arrange the production for you after we received payment .

5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

6. We will try our best to meet your requirements for long-term cooperation .



12. Q: What your payment term ?

A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .



Packing for reference :


Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable 1
