Optical Fiber Patch Cord

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0mm Patch Cable for High Performance Networking

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0mm Patch Cable for High Performance Networking

Brand Name:	New Light
Model Number:	LC-LC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Connector Type:

LC / LC

Cable Material:

Fiber Type:

G657A2

Mode Type:

Core Type:

Simplex

Cable Diameter:

3.0 Mm Diameter

Cable Length:

Can Be Customized

Insertion Loss:

≤0.2dB

Packing:

Opp Bag With Carton Box

OEM/ODM:

Acceptable

Product Name:

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord LSZH 3.0 Patch Cable

Connector Type:

LC / LC

Cable Material:

Fiber Type:

G657A2

Mode Type:

Core Type:

Simplex

Cable Diameter:

3.0 Mm Diameter

Cable Length:

Can Be Customized

Insertion Loss:

≤0.2dB

Packing:

Opp Bag With Carton Box

OEM/ODM:

Acceptable

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

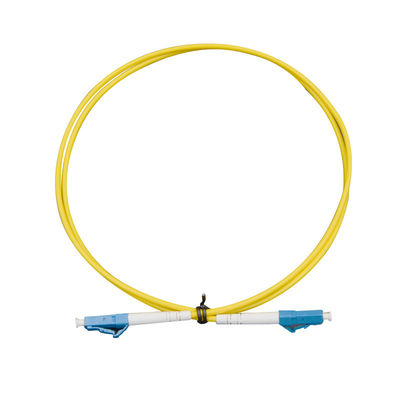

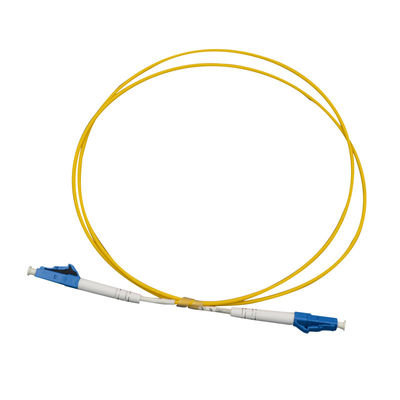

Simplex 9/125um SM 1310 Wavelength LC LC Fiber Patch Cord

LC-LC simplex fiber patch cord combines two LC connectors with fiber optic cable, featuring LSZH 3.0mm patch cable construction.

Product Overview

This single-mode fiber patch cord features LC connectors on both ends with a standard 3.0mm diameter cable (2.0mm available upon request). Standard single-mode cables are yellow, but custom colors are available for orders exceeding 1000 meters.

We offer comprehensive fiber patch cord and pigtail solutions including single-mode and multimode variants (OM2, OM3, OM4, OM5), available in simplex, duplex, and multi-fiber configurations up to 48 fibers.

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with IEC, TIA/EIA, NTT and JIS specifications

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
Insertion loss	dB	≤0.3	≤0.3	≤0.2	≤0.3
Insertion loss	dB	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥45	≥45	≥55
Return loss	dB	≥50	≥50	≥50	≥75
Wavelength	nm	850, 1310
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9

Applications

CATV systems
Active device termination
Telecommunication networks
Metro networks
Local Area Networks (LAN)
Data processing networks
Test equipment
Premise installation
Wide Area Networks (WAN)

Available Options

Connector Types

SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA

Cable Types

PVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored

Colors

Yellow, gray, sky blue, orange, white, black

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your minimum order quantity (MOQ)?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. Contact us for freight solutions.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5000 pieces. Regular products are in stock for urgent orders.

What's your warranty?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer-paid freight.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for patch cords, adaptors, and attenuators with customer-paid freight.

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. Large orders: 50% deposit, 50% before delivery.

Packaging Reference
