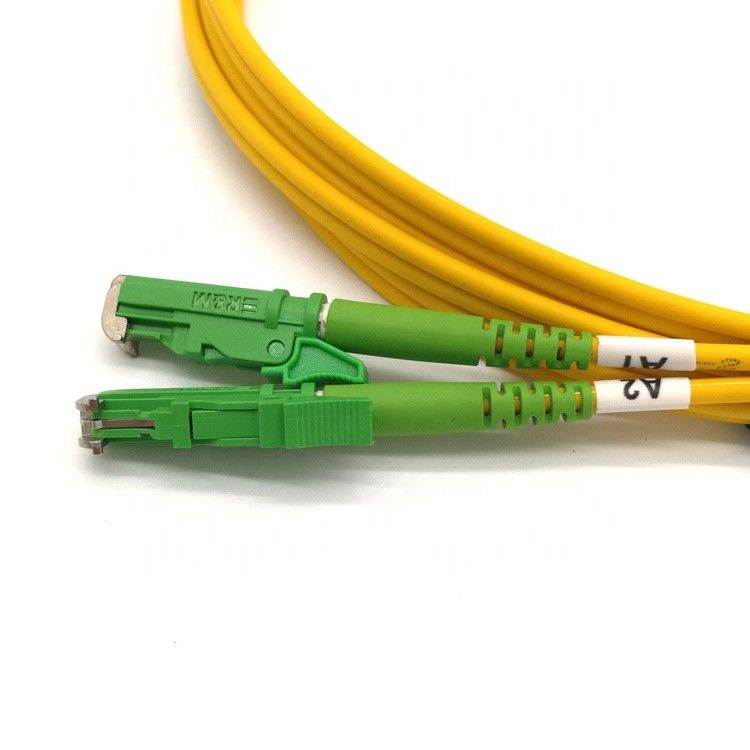

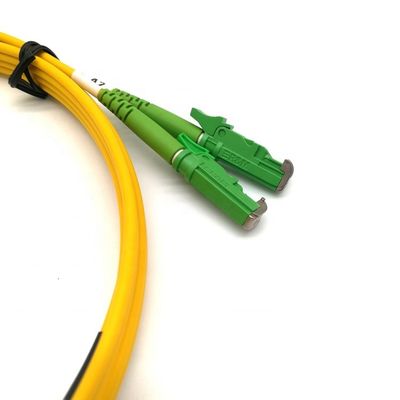

E2000 APC Connector Optical Fiber Patch Cord with 9/125um Single Mode and LSZH Cable Material

Brand Name:	New Light
Model Number:	E2000 APC
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

E2000 APC Patch Cord Fiber Optic Green E2000 9/125 SM Connectors Duplex Cable

Connector Type:

E2000

Cable Material:

Fiber Type:

G652D

Mode Type:

9/125um

Core Type:

Duplex

Cable Diameter:

Cable Length:

Can Be Customized

Insertion Loss:

≤0.3dB

Return Loss:

≥60dB

OEM/ODM:

Acceptable

Length:

1m 2m 3m Or Customized

Wavelength:

1310nm/1550nm

Product Name:

E2000 APC Patch Cord Fiber Optic Green E2000 9/125 SM Connectors Duplex Cable

Connector Type:

E2000

Cable Material:

Fiber Type:

G652D

Mode Type:

9/125um

Core Type:

Duplex

Cable Diameter:

Cable Length:

Can Be Customized

Insertion Loss:

≤0.3dB

Return Loss:

≥60dB

OEM/ODM:

Acceptable

Length:

1m 2m 3m Or Customized

Wavelength:

1310nm/1550nm

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

LSZH Optical Fiber Patch Cord E2000 9/125 SM Connectors Duplex Cable

Product Overview

E2000 APC Patch Cord Fiber Optic Green E2000 9/125 Single Mode Connectors Duplex Cable features specialized E2000 connectors available in 0.9mm, 2.0mm, and 3.0mm diameters. The connector housing maintains consistent specifications while boot designs vary to accommodate different cable diameters.

Color Coding System

Connector colors indicate fiber type: blue for Single Mode UPC, gray for Multi Mode, and green for Single Mode APC. Standard cable colors follow international standards with yellow for single mode and various colors (orange, aqua, magenta, light green) for different multi-mode types.

Key Features

Low insertion loss and back reflection loss
Excellent exchangeability
Superior durability
High temperature stability
Compliant with IEC, TIA/EIA, NTT and JIS specifications

Technical Specifications

Specification	Unit	FC, SC, LC/Armored Cables	ST, MU	MT-RJ, MPO	E2000
Insertion loss	dB	≤0.3	≤0.3	≤0.3	≤0.3
Return loss	dB	≥45	≥45	≥45	≥55
Wavelength	nm	850, 1310
Interchangeability	dB	≤0.2
Vibration	dB	≤0.2
Operating temperature	°C	-40~75
Storage temperature	°C	-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9

Applications

CATV Systems
Active Device Termination
Telecommunication Networks
Metro Networks
Local Area Networks
Data Processing Networks
Test Equipment
Premise Installation
Wide Area Networks

Available Configurations

Connector Types: SC, ST, FC, LC, MU, MTRJ, E2000, MPO/MTP, SMA

Cable Types: PVC/LSZH, OM1, OM2, OM3, OM4, Plenum(OFNP), Armored

Colors: Yellow, Gray, Sky Blue, Orange, White, Black

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-piece orders incur higher costs.

What's the price?

Pricing depends on quantity. We provide competitive pricing for bulk orders upon request.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. We offer competitive logistics solutions for both air and sea freight.

How is your quality?

We follow IEC and European standards with imported production equipment in near dust-free workshops. All products undergo 100% testing before delivery.

What's your lead time?

We maintain three factories in China with rapid production capabilities. Standard patch cords ship in 2-3 working days for quantities up to 5,000 pieces.

What's your warranty?

We offer 2-year warranty for non-artificial damage. Repair services are available for artificial damage with freight covered by customer.

Can you do OEM/ODM?

Yes, we support OEM/ODM services and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer.

Packing Reference
