SC/ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable for Gigabit Ethernet

Brand Name:	New Light
Model Number:	SC - ST
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

SC / ST Optical Fiber Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Connector:

SC-ST

Polish:

PC / UPC

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Fiber Type:

Duplex

Insertion Loss:

≤0.3dB, < 0.2dB, <=3.0 DB

Material:

PVC, LSZH

Production Method:

Conditioning Cable

Products Name:

SC / ST Optical Fiber Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Connector:

SC-ST

Polish:

PC / UPC

Fiber Count:

Duplex

Insertion Loss:

≤ 0.3dB

Fiber Type:

Duplex

Insertion Loss:

≤0.3dB, < 0.2dB, <=3.0 DB

Material:

PVC, LSZH

Production Method:

Conditioning Cable

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

SC/ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Product Overview

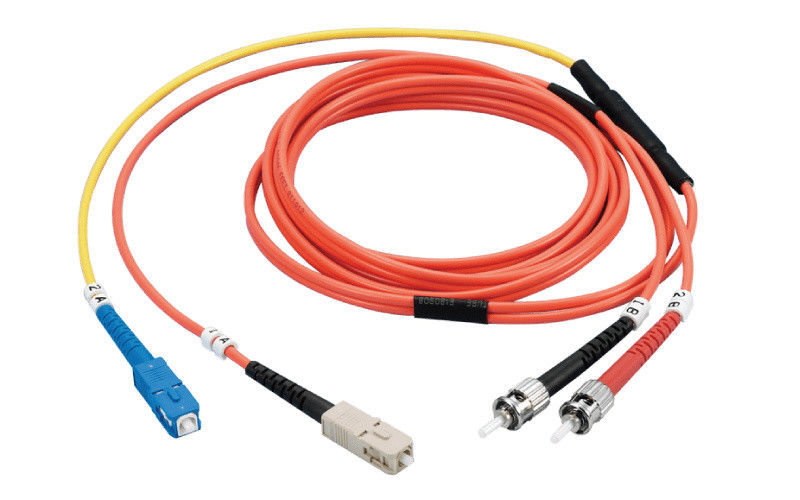

This specialized mode conditioning fiber optic patch cord combines single mode and multi-mode fiber technologies. The cable features two multi-mode ST connectors with one SC UPC single mode connector and one SC PC multi-mode connector.

Cable Configuration

The main cable utilizes multi-mode fiber optic cable conditioned with a short section of single mode fiber optic cable for optimal performance in Gigabit Ethernet applications.

Installation Instructions

For gigabit LX switches equipped with SC or ST connectors, connect the single-mode side to the transmit side and the multi-mode fiber side to the receive side of the equipment. This configuration must be maintained on both ends, with transmit/receive swapping only possible at the cable plant side.

Applications

New Light manufactures standard and customized length 50/125, 62.5/125 and OEM equivalent mode conditioning fiber optic patch cords for 1000BASE-LX/LH Gigabit Ethernet (1300nm long wavelength) applications installed into existing multi-mode cable plants.

Technical Benefits

These specialized cords prevent Differential Mode Delay (DMD) effects that can occur when long wave transceiver modules operate at both single-mode and multi-mode wavelengths. Available with FC, ST, SC, LC and MT-RJ connectors.

How Mode Conditioning Works

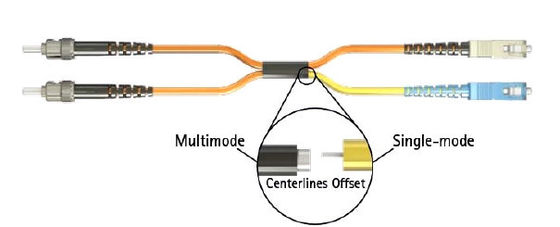

The conditioning patch cord addresses the single-mode launch nature of LX or long-wave (1300nm) transceiver modules used for Gigabit Ethernet. By offsetting the single-mode launch away from the center of a multi-mode fiber, it eliminates multiple signals that can confuse receivers, creating a launch similar to typical multi-mode LED launches.

Technical Specifications

Parameter	Specification
Insertion Loss	Light Source Transmission Direction \| Testing Wavelength \| Insertion Loss D→B \| 850nm, 1,300nm \| Max ≤ 0.30dB B→D \| 850nm, 1,300nm \| Max ≤ 0.30dB C→A \| 850nm, 1,300nm \| ≤ 15.0dB(50/125um); ≤ 18.0dB(62.5/125um) A→C \| 850nm, 1,300nm \| Max ≤ 0.30dB C→A \| 1,310nm, 1,550nm \| ≤ 2.10dB(50/125um); ≤ 2.60dB(62.5/125um)
Return Loss	SM APC≥60.0dB; SM UPC≥50.0dB; MM PC≥35.0dB
Durability	1,000 mating, typical≤0.20dB
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +85℃

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units due to higher costs. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume, with significant discounts for large quantities.

Can you quote FOB price?

We can provide FOB pricing, but most shipments are delivered by air (DHL, TNT, UPS, FEDEX). We recommend providing detailed specifications and quantity for accurate freight-included pricing. EXW or CFR pricing is often more suitable.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords include a 2-year warranty from delivery date covering non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

What's your packing?

We use international export packaging and can print your logo on custom packaging.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. Higher-value products require sample charges refundable with order placement.

How can I order?

1. Contact us with product specifications and quantity
2. Receive our best pricing and lead time
3. Accept quotation and receive proforma invoice
4. Production begins after payment
5. Delivery confirmation and tracking provided
6. Ongoing support for long-term cooperation

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
