SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable
SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable
SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Large Image :  SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Product Details:
Place of Origin: Shenzhen,China
Brand Name: New Light
Certification: CE / ISO / RoHS
Model Number: SC - ST
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 5-10 working days after received payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 pcs /day

SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable

Description
Products Name: SC / ST Optical Fiber Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable Connector: SC-ST
Polish: PC / UPC Fiber Count: Duplex
Insertion Loss: ≤ 0.3dB Fiber Type: Duplex
Insertion Loss: ≤0.3dB, < 0.2dB, <=3.0 DB Material: PVC, LSZH
Production Method: Conditioning Cable
High Light:

single mode fiber optic cable

,

duplex fiber patch cord



Fiber Optic Patch Cord Name



SC / ST Optical Fiber Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable



Fiber Optic Patch Cord Description

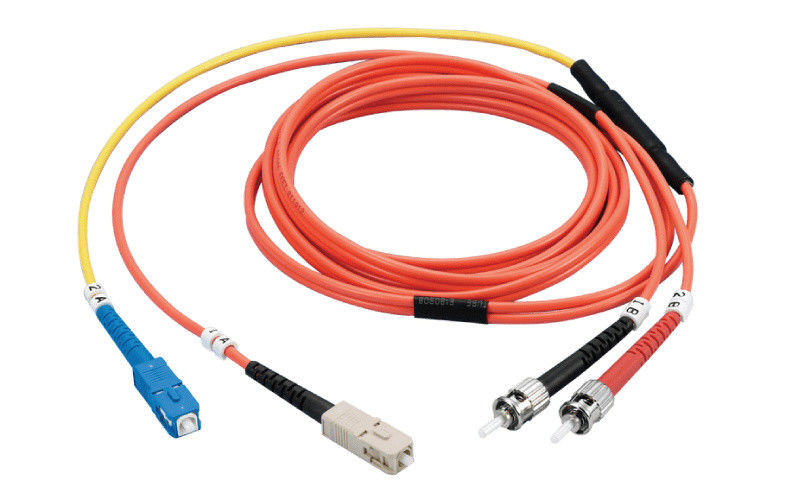

This is a special single mode fiber cable conditioning multi mode fiber cable type patch cord .



The connector of the patch cord are two multi mode ST connector with one  SC  UPC single mode connector and one SC PC multi mode connector .



The main cable is multi mode fiber optic cable . and conditioning with a short part of single mode fiber optic cable .



How to Install the Mode Conditioning Cable


If your gigabit LX switch is equipped with SC or ST connectors,please be sure to connect the Singlemode side of the cable to the transmit side,and the multimode fiber side to the receive side of the equipment.It is imperative that this configuration be maintained on both ends.The swap of transmit and receive can only be done at the cable plant side.(see diagram below)



New Light manufactures standard and customized length 50/125,62.5/125 and OEM equivalent mode conditioning fiber optic patch cords for 1000BASE-LX/LH Gigabit Ethernet (1300nm long wavelength) applications installed into existing multimode cable plants.



These specialized cords help avoid Differential Mode Delay(DMD)effects that can occur when long wave transceiver modules operate at both single-mode and multimode wavelengths. And they are available with FC, ST, SC, LC and MT-RJ connectors.



How the Mode Conditioning Cable Works


The need for this conditioning fiber optic patch cord is due to the single-mode launch nature of the-LX or long-wave(1300nm) transceiver modules used for Gigabit Ethernet.

Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber.

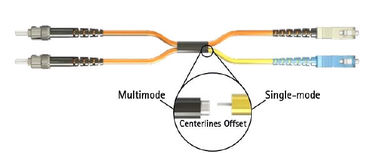

In that case, a mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber. This offset point creates a launch that is similar to typical multimode LED launches. (see diagram below)



SC / ST Fiber Optic Patch Cord 62.5/125 MM Conditioning Single Mode G652D Cable 0





fiber optic patch cord Technical Parameter





Parameter Specification
Insertion Loss Light Source Transmission Direction Testing Wavelength Insertion Loss
D→B 850nm, 1,300nm Max .≤ 0.30dB
B→D 850nm, 1,300nm Max .≤ 0.30dB
C→A 850nm, 1,300nm ≤ 15.0dB(50/125um);
≤ 18.0dB(62.5/125um)

A→C 850nm, 1,300nm Max .≤ 0.30dB
C→A 1,310nm, 1,550nm ≤ 2.10dB(50/125um);
≤ 2.60dB(62.5/125um)

Return Loss SM APC≥60.0dB; SM UPC≥50.0dB MM PC≥35.0dB
Durability 1,000 mating, typical≤0.20dB
Operating Temp -20 to +70
Storage Temp -40 to +85
