Armored Fiber Optic Patch Cord with 62.5/125 MM ST Conditioning and Single Mode LC Connector

Brand Name:	New Light
Model Number:	LC - ST
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Products Name:

Armoured Fiber Optic Patch Cord 62.5/125 MM ST Conditioning Single Mode LC Connector

Connector:

LC SM - ST MM

Polish:

PC - UPC

Fiber Count:

Duplex

Fiber Type:

Duplex

Material:

Production Method:

G652D Conditioning 62.5/125

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

1m 2m 3m Or Customized

Products Name:

Armoured Fiber Optic Patch Cord 62.5/125 MM ST Conditioning Single Mode LC Connector

Connector:

LC SM - ST MM

Polish:

PC - UPC

Fiber Count:

Duplex

Fiber Type:

Duplex

Material:

Production Method:

G652D Conditioning 62.5/125

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

1m 2m 3m Or Customized

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

Armored Fiber Optic Patch Cord 62.5/125 MM ST Conditioning Single Mode LC Connector

Product Overview

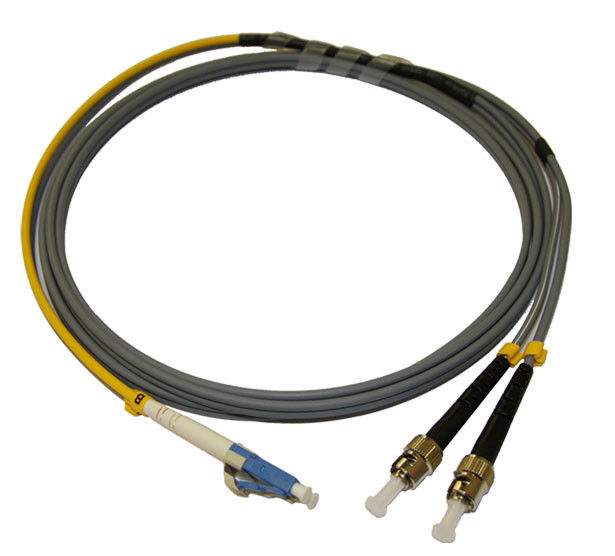

This armored fiber optic patch cord features a unique conditioning method that combines single-mode and multi-mode fiber cables within the same patch cord assembly. The configuration includes two multi-mode ST connectors, one LC UPC single-mode connector, and one LC PC multi-mode connector.

Technical Specifications

Main cable: 62.5/125μm multi-mode fiber optic cable
Conditioning cable: 9/125μm single-mode G652D fiber optic cable
Connector configuration: Two ST multi-mode connectors, one LC UPC single-mode connector, one LC PC multi-mode connector

Installation Guidelines

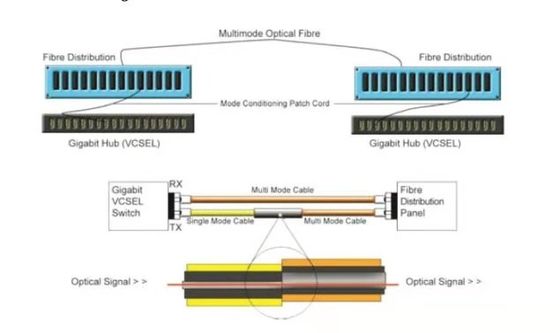

For gigabit LX switches equipped with SC or ST connectors, connect the single-mode side of the cable to the transmit side and the multi-mode fiber side to the receive side of the equipment. This configuration must be maintained on both ends. Transmit and receive swapping can only be done at the cable plant side.

Working Principle

Mode conditioning patch cords eliminate multiple signal generation by offsetting the single-mode launch away from the center of the multi-mode fiber. This creates a launch similar to typical multi-mode LED launches, preventing signal confusion at the receiver end.

Technical Parameters

Parameter	Specification
Insertion Loss	D→B: 850nm, 1,300nm - Max ≤ 0.30dB B→D: 850nm, 1,300nm - Max ≤ 0.30dB C→A: 850nm, 1,300nm - ≤ 15.0dB(50/125um); ≤ 18.0dB(62.5/125um) A→C: 850nm, 1,300nm - Max ≤ 0.30dB C→A: 1,310nm, 1,550nm - ≤ 2.10dB(50/125um); ≤ 2.60dB(62.5/125um)
Return Loss	SM APC≥60.0dB; SM UPC≥50.0dB; MM PC≥35.0dB
Durability	1,000 mating, typical≤0.20dB
Operating Temperature	-20℃ to +70℃
Storage Temperature	-40℃ to +85℃

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We primarily ship via air couriers. EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What's your lead time?

We have three factories in China. Standard lead time is 2-3 working days for 5,000 pieces.

What's your warranty?

2-year warranty for patch cords, covering non-artificial damage.

What's your packing?

International export packaging with optional custom logo printing.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight prepaid by customer).

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then proceed with proforma invoice and production upon payment.

What's your payment term?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
