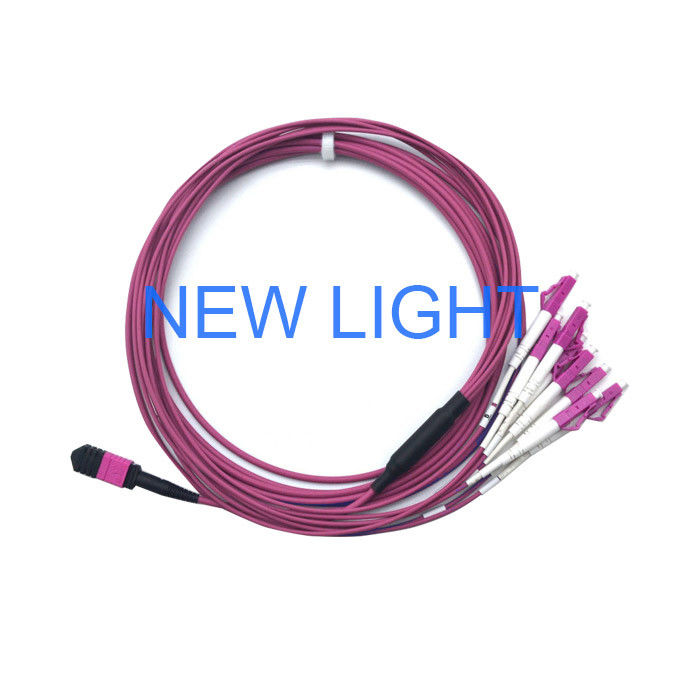

OM4 Multimode 12 Core MPO MTP Fiber Optic Cable with Customizable Length for High-Speed Data Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

OM4 Multimode 12 Core MPO MTP Fiber Optic Cable with Customizable Length for High-Speed Data Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

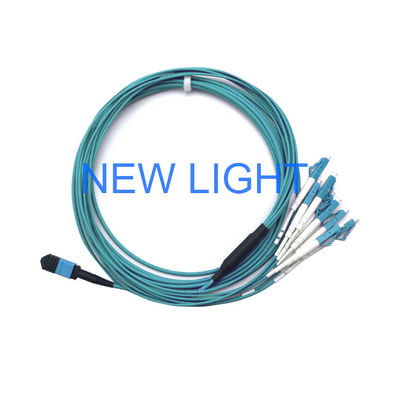

MPO MTP OM3 Multimode Fiber Optic Cable

High-performance MPO MTP optical connector OM3 multimode fibre optic cable designed for MPO fiber cassette applications in data center environments.

Product Overview

New Light manufacturers data center grade fiber optic MTP patch cords constructed with Corning® Clearcurve® OM3 glass. The 50 micron MTP fiber optic patch cable features 100G Base-SR10 24-fiber configuration for direct equipment-to-equipment connections, supporting laser optimized multimode fiber (LOMMF) and high-speed 100G cabling networks.

These high-density 24-fiber cables are OM3 50/125 with a 3.0mm diameter and aqua OFNP (optical fiber nonconductive plenum) jacket material. The MTP-MTP fiber optical cords are assembled with MTP female connectors featuring spring-loaded sliding mechanisms for secure latching onto adapters in data center network cabling environments.

Each assembly undergoes 100% factory testing to meet Bellcore GR-326 and TIA/EIA standards with maximum insertion loss specifications.

Applications

Single-mode or multimode configurations available
PC (plane) or APC (8 degree) polish options
Various insertion loss indices and color options
Stable performance with PIN fixed position connection
Plug-type connector with locking structure
High-density design for efficient wiring and management systems
Compliant with Telcordia GR-1435-CORE and RoHS standards

Key Features

Telecom network infrastructure
System cabling solutions
Precision telecom equipment connectivity
Cable loopback inspection capabilities

Technical Specifications

Parameter	Specifications
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

What is the pricing structure?

Pricing is quantity-dependent. We offer EXW or CFR pricing with competitive logistics options for both air and sea freight.

How is your quality assurance?

We follow IEC and European standards with imported production equipment in near dust-free workshops. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories in China with stock availability. Standard lead time is 2-3 working days for 5,000 pieces.

What is your warranty policy?

We offer 2-year warranty for patch cords covering non-artificial damage since delivery.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer.

What are your payment terms?

We accept T/T, Western Union, Paypal, and MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
