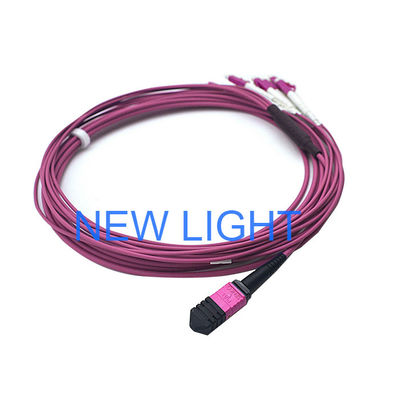

12 Core OM4 LSZH MPO MTP Cable for High-Density Data Center Connectivity

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core OM4 LSZH MPO MTP Cable for High-Density Data Center Connectivity

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Certification:

ISO9001

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

Plug Type MPO MTP Cable Connector for MPO Cassette Patch Panel

High-performance MPO 24 cable MTP fiber connector designed for seamless connectivity with MPO cassette patch panels in data center environments.

MPO MTP Cable Overview

New Light manufacturers provide data center grade MPO optical connectors with OM3 multimode fiber optic cables for MPO cassette patch panels. The 50 micron MTP fiber optic patch cable is constructed with Corning® Clearcurve® OM3 glass, featuring 100G Base-SR10 24-fiber configuration for direct equipment-to-equipment connections.

These laser-optimized multimode fiber (LOMMF) cables support high-speed 100G cabling networks. The high-density 24-fiber cable is OM3 50/125 with a 3.0mm diameter and features an aqua OFNP (optical fiber nonconductive plenum) jacket material specifically designed for 100Gb networking.

The MTP-MTP fiber optical cord assemblies utilize MTP female connectors with spring-loaded sliding mechanisms that securely latch onto adapters, ensuring reliable connections for network cabling in data center environments. Each assembly undergoes 100% factory testing to meet Bellcore GR-326 and TIA/EIA standards with maximum insertion loss compliance.

MPO MTP Cable Applications

Stable performance with PIN fixed position connectivity
Plug type connector with locking structure
High density design for convenient wiring and management systems
Compliant with Telcordia GR-1435-CORE and RoHS standards

MPO MTP Cable Features

Telecom network infrastructure
System cabling solutions
Precision telecom equipment connectivity
Cable loopback inspection capabilities

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged using OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, though we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. Contact us with your requirements for competitive pricing.

Can you quote FOB price?

We typically ship via air freight (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

Standard lead time is 2-3 working days for 5000 pieces. Many regular products are available from stock.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with optional custom logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.

Tags:

mpo to mpo cable

mpo fiber cable

mpo fanout cable
