24 Fiber MPO MTP Breakout Cable with OM4 Multimode and LSZH Material for High-Density Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

24 Fiber MPO MTP Breakout Cable with OM4 Multimode and LSZH Material for High-Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Certification:

ISO9001

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

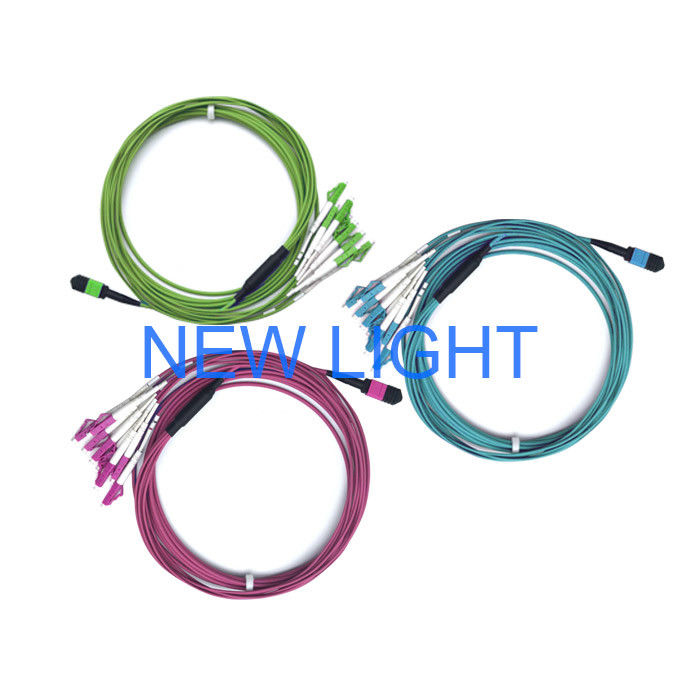

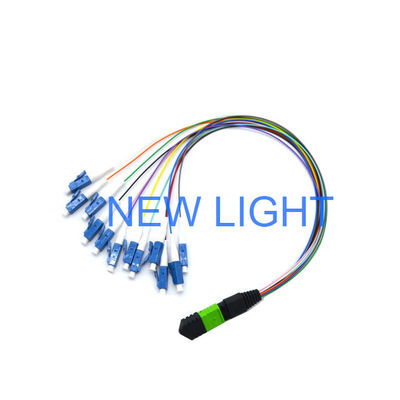

MPO/MTP Breakout Cable for Cassette Patch Panel

This high-density MTP breakout cable features a 24-fiber MPO connector designed specifically for connecting to MPO cassette patch panels. Manufactured with data center grade components, this OM3 multimode fiber optic cable supports 100G Base-SR10 configurations for direct equipment-to-equipment connections in high-speed networking environments.

Product Overview

Constructed with Corning® Clearcurve® OM3 glass, this 50-micron MTP fiber optic patch cable is laser-optimized for multimode fiber (LOMMF) applications. The cable features a 3.0mm diameter aqua OFNP plenum-rated jacket and is assembled with MTP female connectors. The spring-loaded sliding mechanism ensures secure connections in data center environments. Each assembly undergoes 100% factory testing to meet Bellcore GR-326 and TIA/EIA standards.

Applications

Available in single-mode or multimode configurations
PC (plane) or APC (8 degree) polish options
Various insertion loss indexes and colors available
Stable performance with PIN fixed positioning
Plug-type connector with locking structure
High-density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Key Features

Telecom network infrastructure
System cabling solutions
Precision telecom equipment connectivity
Cable loopback inspection capabilities

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical) MM: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multimode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

The three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ can be 1 piece, though larger quantities receive better pricing.

What is the price?

Pricing varies by quantity. Contact us with your requirements for competitive pricing.

Can you provide FOB pricing?

EXW or CFR pricing is typically preferred. We offer various shipping solutions based on order size.

What is your quality assurance?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What is your lead time?

Standard patch cords: 2-3 working days for 5,000 pieces. We maintain stock for regular products and accommodate urgent orders.

What is your warranty policy?

2-year warranty for patch cords covering non-artificial damage. Repair services available for artificial damage (freight paid by customer).

What packaging do you use?

International export packaging with optional custom logo printing available.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Sample charges apply for high-value products.

How do I place an order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then issue a proforma invoice upon acceptance.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
