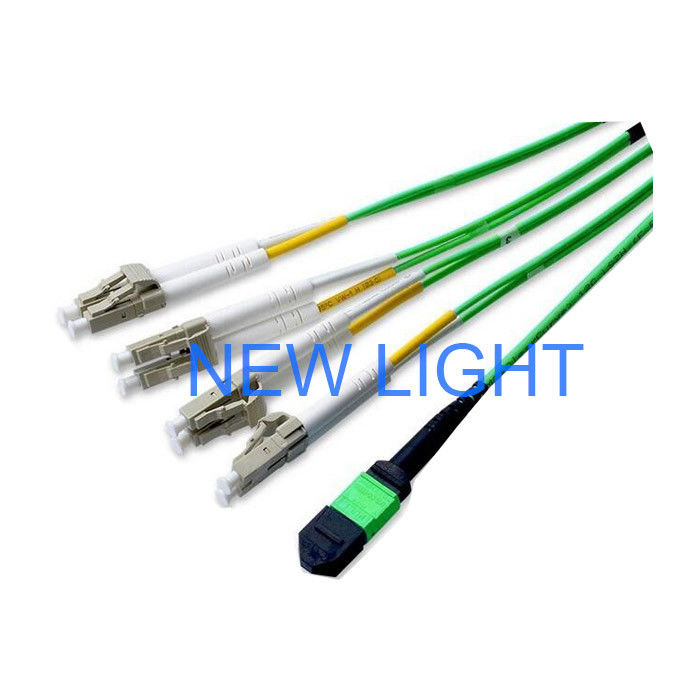

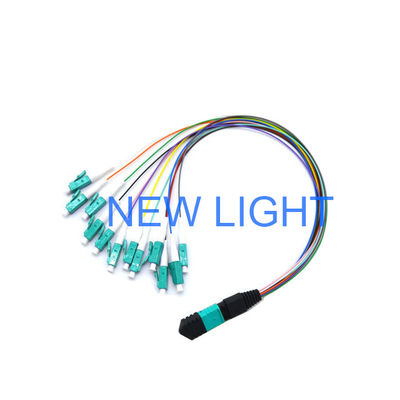

12 Core OM4 MPO MTP Cable with Customizable Length for High-Speed Data Center Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

12 Core OM4 MPO MTP Cable with Customizable Length for High-Speed Data Center Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Certification:

ISO9001

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

MPO MTP 12-Fiber Connector Cable for Fiber Cassette

High-performance data center grade MPO optical connector with OM3 multimode fiber optic cable designed for MPO cassette patch panels. This 50-micron MTP fiber optic patch cable features Corning® Clearcurve® OM3 glass construction.

Product Overview

The multimode fiber optic cable features a 100G Base-SR10 24-fiber configuration for direct equipment-to-equipment connections, supporting laser optimized multimode fiber (LOMMF) and high-speed 100G cabling networks. The high-density 24-fiber cable is OM3 50/125 with a 3.0mm diameter and aqua OFNP plenum-rated jacket material.

MTP-MTP fiber optical cords are assembled with MTP female connectors featuring a spring-loaded sliding mechanism that securely latches onto adapters, ensuring reliable network cabling connections in data center environments. Each assembly undergoes 100% factory testing to meet Bellcore GR-326 and TIA/EIA standards.

Applications

Single-mode or multimode configurations available
PC (plane) or APC (8 degree) connector options
Various insertion loss indexes and color options
Stable performance with PIN fixed positioning
Plug-type connector with locking structure
High-density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Key Features

Telecom network infrastructure
System cabling solutions
Precision telecom equipment connectivity
Cable loopback inspection capabilities

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical); MM: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags with outer carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, though larger quantities receive more competitive pricing.

What is the pricing?

Pricing varies by quantity. We provide competitive quotes based on your specific requirements.

Can you provide FOB pricing?

Yes, though most shipments are via air freight. EXW or CFR pricing is often more suitable.

How is your quality control?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What is your lead time?

Standard lead time is 2-3 working days for 5,000 pieces. Many regular products are available from stock.

What is your warranty policy?

We offer a 2-year warranty for patch cords covering non-artificial damage.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).
