Fiber Optic Splitter

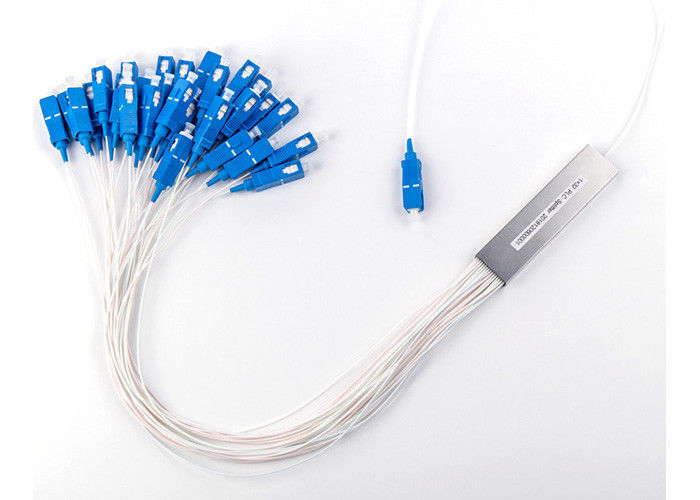

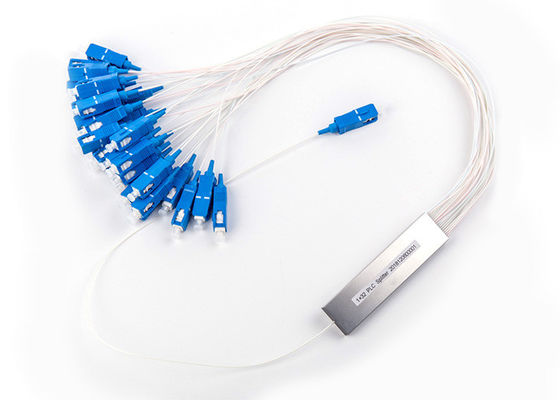

1x32 Mini Type PLC Splitter with SC/PC Connector and Stainless Steel Tube for Fiber Optic Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1x32 Mini Type PLC Splitter with SC/PC Connector and Stainless Steel Tube for Fiber Optic Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1X32 Mini Type PLC Splitter

Connector Type:

SC/PC

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Color:

White

Supply Ability:

1000000

Highlight:

single mode fiber splitter

fiber optic cable splitter

Product Description

SC Connector 1x32 Mini Type PLC Optical Fiber Splitter

This 1x32 Mini Type PLC optical fiber splitter features one input and 32 output fibers, with optional 2-input configurations available. The compact planar waveguide device operates across a wide wavelength range of 1260nm to 1650nm, making it ideal for EPON technology applications including 1310nm, 1490nm, and 1550nm wavelengths.

Applications

FTTX Networks
LAN Systems
WAN Infrastructure
Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Other fiber optic system applications

Key Features

Low insertion loss
Low polarization dependent loss (PDL)
High channel counts
Exceptional reliability and stability
Wide operating wavelength range
Wide operating temperature range
Compact design

Technical Specifications

Parameter	Unit	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength	nm	1260-1650
Insertion Loss	dB	≤4.0	≤7.2	≤10.5	≤13.7	≤17.0	≤20.6
Uniformity	dB	≤0.4	≤0.6	≤0.8	≤1.2	≤1.5	≤2.0
PDL	dB	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.35

* Specifications provided without connectors

CAD Drawing & Dimensions

Tube size: 50x7x4 mm

Available in various split modes and package types with custom configuration options.

Packaging

Products are securely packaged in OPP bags within carton boxes to ensure protection during delivery.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

What is your minimum order quantity (MOQ)?

MOQ is 1 piece, though larger quantities receive more competitive pricing.

How is your product quality?

We adhere to IEC and European standards with imported production equipment and 100% product testing before delivery.

What is your lead time?

Standard patch cords: 2-3 working days for 5,000 pieces. Regular products are typically in stock.

What is your warranty policy?

2-year warranty for non-artificial damage. Repair services available for artificial damage with customer-paid freight.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I request samples?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer-paid freight.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. Large orders: 50% deposit, 50% balance before delivery.
